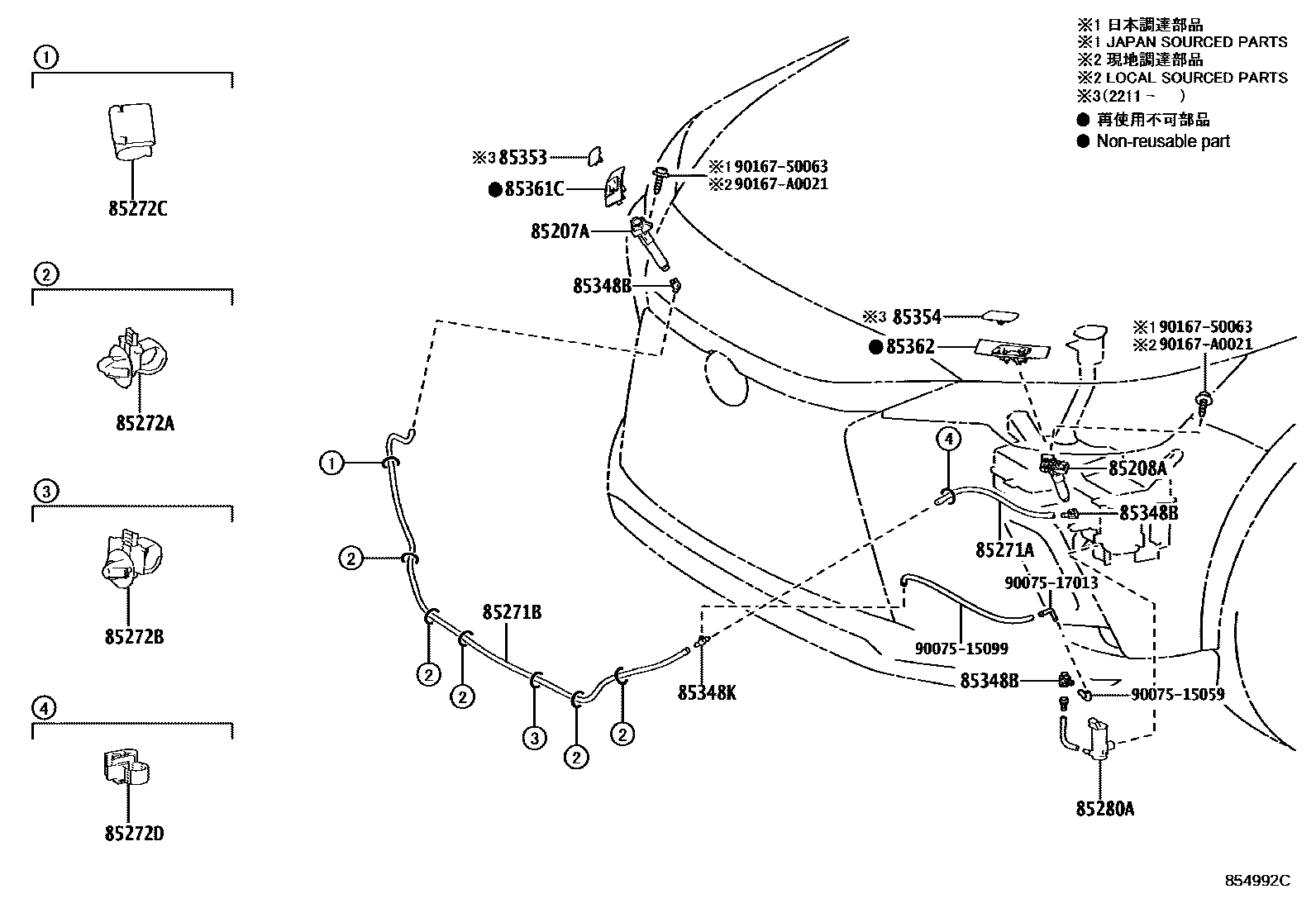

HEADLAMP CLEANER

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

85271AHOSE, HEADLAMP CLEANER, NO.2

85271BHOSE, HEADLAMP CLEANER, NO.3

85272ACLAMP, HEADLAMP CLEANER, NO.1

85272BCLAMP, HEADLAMP CLEANER, NO.2

85272CCLAMP, HEADLAMP CLEANER, NO.3

85272DCLAMP, HEADLAMP CLEANER, NO.4

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

85353COVER, HEADLAMP WASHER, RH

main85353-48903

85354COVER, HEADLAMP WASHER, LH

main85354-48903

85361CBRACKET, WASHER

85362BRACKET, WASHER, NO.2

main85362-0E030

9007515059

main90075-15059

9007515099

main90075-15099

9007517013

main90075-17013

9016750063

main90167-50063

90167A0021

main90167-A0021

20 parts on this diagram · 1 diagram in section
