REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
BACK MONITOR-WITH(*BGM & CAMERA CLEANER)
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
MOON ROOF-WITH(PANORAMA ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
MOON ROOF-WITH(MOON ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=680
L=680,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=680,HEADLAMP-LED TRIPLE BEAM TYPE(WIDE) & WITH(*AHB)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1510,BACK MONITOR-WITH(*BGM & CAMERA CLEANER)
L=1510,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=1510,MOON ROOF-WITH(PANORAMA ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=1510,MOON ROOF-WITH(MOON ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=1510
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2250,BACK MONITOR-WITH(*BGM & CAMERA CLEANER)
L=2250,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=2250,MOON ROOF-WITH(PANORAMA ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=2250,MOON ROOF-WITH(MOON ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=2250
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=505,BACK MONITOR-WITH(*BGM & CAMERA CLEANER)
L=505,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=505,MOON ROOF-WITH(PANORAMA ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=505,MOON ROOF-WITH(MOON ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=505
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1500,BACK MONITOR-WITH(*BGM & CAMERA CLEANER)
L=1500,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=1500,MOON ROOF-WITH(PANORAMA ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=1500,MOON ROOF-WITH(MOON ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=1500
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=140,BACK MONITOR-WITH(*BGM & CAMERA CLEANER)
L=140,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=140,MOON ROOF-WITH(PANORAMA ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=140,MOON ROOF-WITH(MOON ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
L=140
8604
8606
867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*BGM & CAMERA CLEANER)
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
BACK MONITOR-WITH(*BGM & CAMERA CLEANER)
867FAFILTER, CLEANER HOSE
BACK MONITOR-WITH(*BGM & CAMERA CLEANER)
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
MOON ROOF-WITH(PANORAMA ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
MOON ROOF-WITH(MOON ROOF)&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350

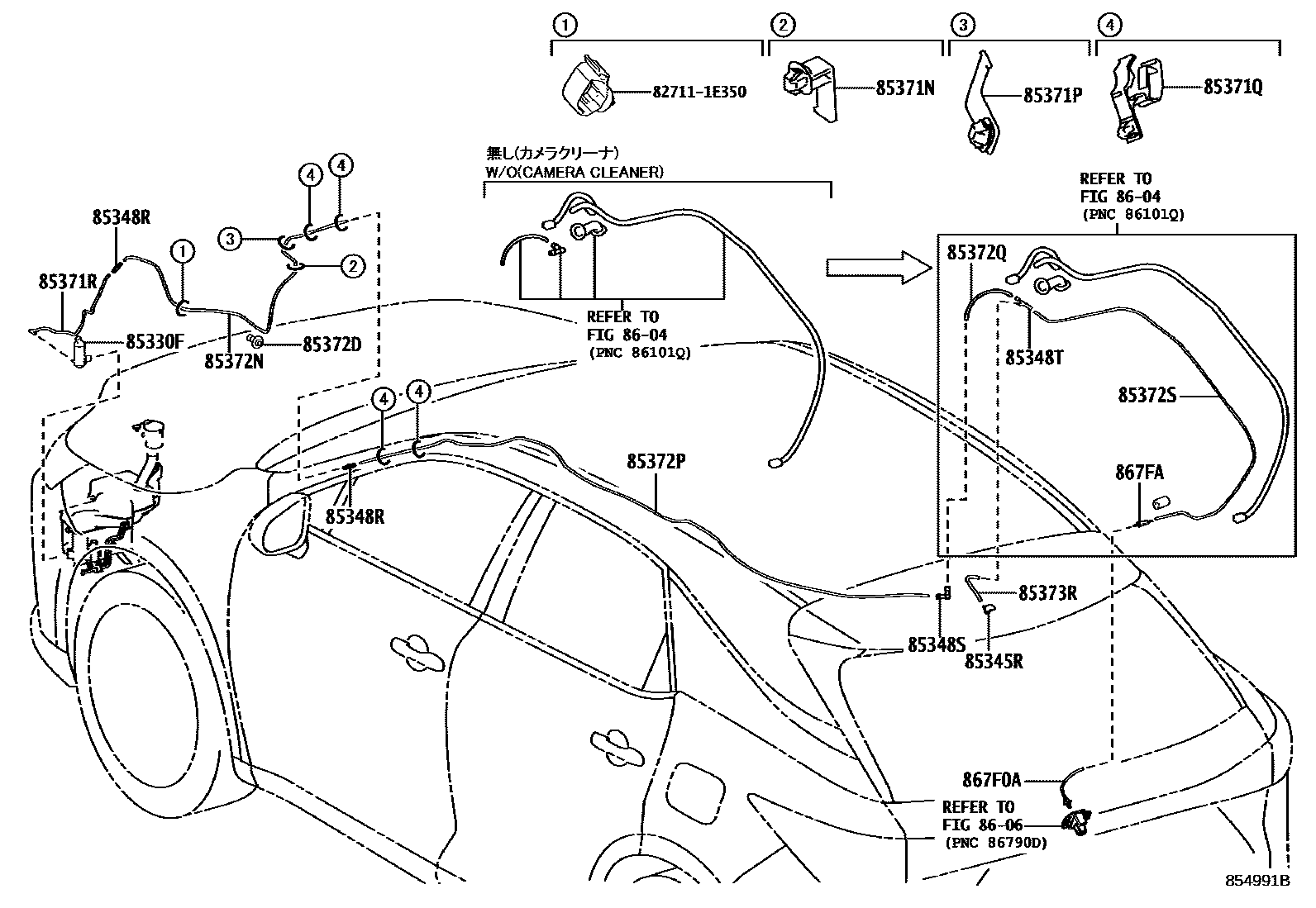

20 parts on this diagram · 1 diagram in section
