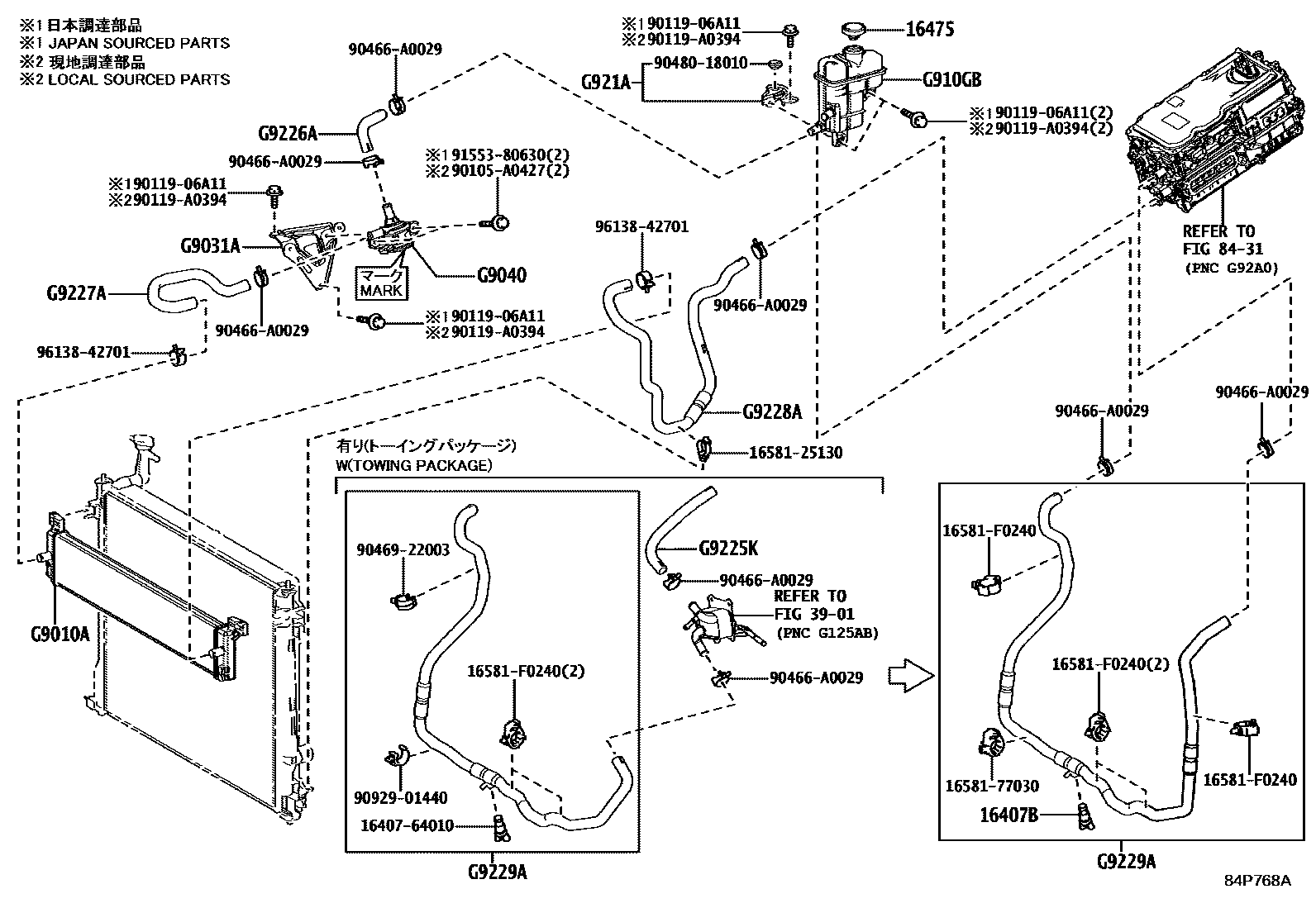

INVERTER COOLING

0001 1 0002 1 0003 1

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25AFXS..AALH15202210-202411

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AALH15202210

3901

8431

G9010ARADIATOR ASSY

mainG901048110iAALH15202210

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG91410E020iAALH15202210

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904004020iAALH15202404

(L),MARK G9040-04020

mainG90400E050iAALH15202311-202411

(L),MARK G9040-0E050

subG9040-04020

mainG904048030iTALH17202210

mainG904048060iAALH15202311-202411

(J)

mainG904048060iAALH15202210-202311

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0R010iAALH15202210

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20R010iAALH15202210

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250E010iAALH15202411

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260E070iTALH17202210

mainG92260R020iAALH15202210

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270E010iAALH15202210

mainG92270E060iTALH17202210

G9228AHOSE, INVERTER COOLING, NO.4

mainG92280E060iTALH17202210

mainG92280E080iAALH15202210

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290E011iAALH15202411

mainG92290E060iTALH17202210

mainG92290E070iAALH15202210-202411

1640764010COCK SUB-ASSY, RADIATOR DRAIN

main16407-64010

1658125130CLAMP, HOSE(FOR WATER HOSE)

main16581-25130

1658177030CLAMP, HOSE(FOR WATER HOSE)

main16581-77030

16581F0240CLAMP, HOSE(FOR WATER HOSE)

main16581-F0240

90105A0427

main90105-A0427

9011906A11

main90119-06A11

90119A0394

main90119-A0394

90466A0029

main90466-A0029

9046922003

main90469-22003

9048018010

main90480-18010

9092901440

main90929-01440

9155380630

main91553-80630

9613842701

main96138-42701

27 parts on this diagram · 3 diagrams in section
