WIRING & CLAMP

0001 1ENGINE ROOM 1/3 0002 1ENGINE ROOM 2/3 0003 1ENGINE ROOM 3/3 0004 1ENGINE ROOM 1/3 0005 1ENGINE ROOM 2/3 0006 1ENGINE ROOM 3/3 0007 1ENGINE ROOM 1/3 0008 1ENGINE ROOM 2/3 0009 1ENGINE ROOM 3/3 0010 1ENGINE 1/3 0011 1ENGINE 2/3 0012 1ENGINE 3/3 0013 1ENGINE 1/3 0014 1ENGINE 2/3 0015 1ENGINE 3/3 0016 1ENGINE 1/3 0017 1ENGINE 2/3 0018 1ENGINE 3/3 0019 1INSTRUMENT PANEL 0020 1DOOR 0021 1FLOOR & ROOF 0022 1FLOOR & ROOF 0023 1FLOOR & ROOF 0024 1HIGH VOLTAGE CABLE 0025 1HIGH VOLTAGE CABLE 0026 1SEAT 0027 1CLAMP & BRACKET 1/2 0028 1CLAMP & BRACKET 2/2 0029 1CONNECTOR 1/2 0030 1CONNECTOR 2/2

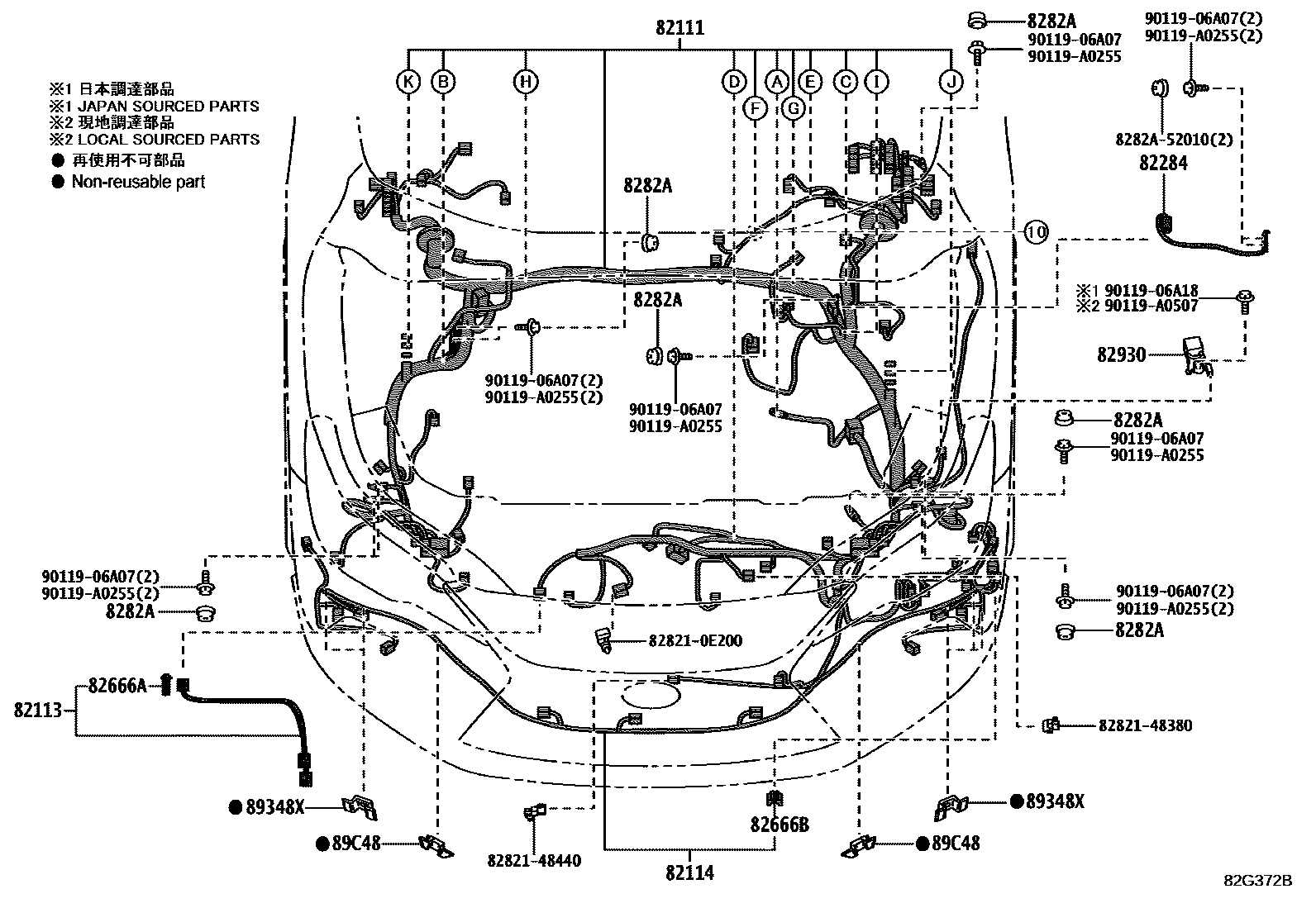

82111WIRE, ENGINE ROOM MAIN

main82115-0E220iTALA1#202210-202309

main82115-0E221iTALA1#202309

main82115-0E430iAALH15202210-202309

main82115-0E431iAALH15202309-202411

main82115-0E720iTALH17202210-202309

main82115-0E721iTALH17202309

main82116-0E120iAALH15202411

82113WIRE, ENGINE ROOM, NO.3

main82113-0E050iAALH15,TALA1#,TALH17202210

82114WIRE, ENGINE ROOM, NO.4

main82114-0E380iAALH15,TALA1#202411

main82114-0E570iAALH15,TALA1#202210-202411

main82114-0E600iTALH17202309

main82114-0E640iTALA15202210-202309

F SPORT

82284WIRE, EARTH

main82284-F6020iTALA1#202210

82666AHOLDER, CONNECTOR NO.2

main82666-42020iAALH15,TALA1#,TALH17202210

82666BHOLDER, CONNECTOR NO.3

main82666-21040iAALH15,TALA1#,TALH17202210

8282ACAP, EARTH BOLT, NO.1

main8282A-52010iAALH15,TALH17202210-202311

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-48050iAALH15,TALA1#,TALH17202210

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iTALH17202210

89C48CLIP, ULTRASONIC SENSOR, FRONT NO.2

main89348-50140iAALH15,TALA1#,TALH17202210

828210E200RETAINER, HEADLAMP HARNESS

main82821-0E200

8282148380RETAINER, HEADLAMP HARNESS

main82821-48380

8282148440RETAINER, HEADLAMP HARNESS

main82821-48440

8282A52010CAP, EARTH BOLT, NO.1

main8282A-52010

9011906A07

main90119-06A07

9011906A18

main90119-06A18

90119A0255

main90119-A0255

90119A0507

main90119-A0507

18 parts on this diagram · 30 diagrams in section
