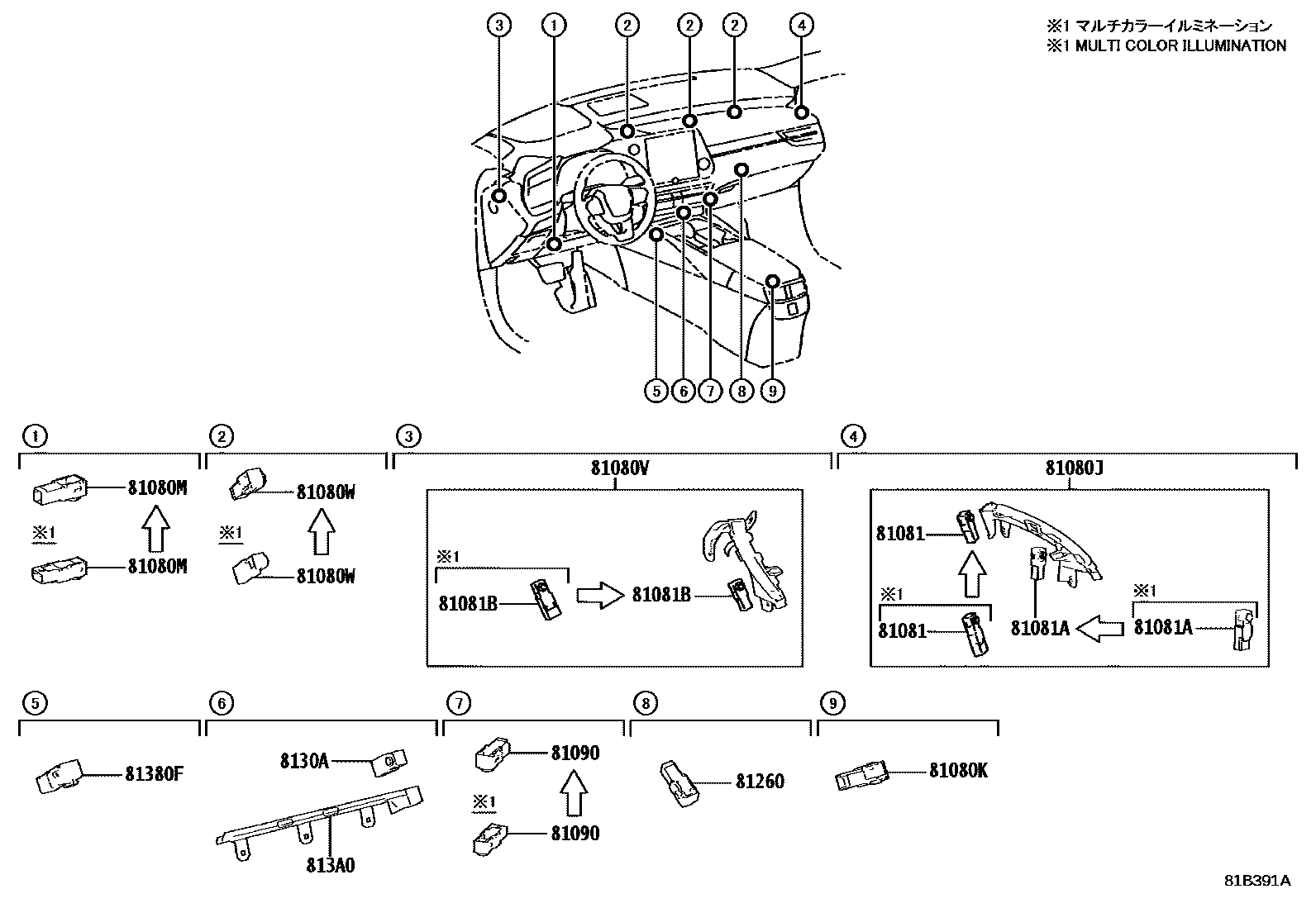

INTERIOR LAMP
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81081BLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
81260LAMP ASSY, GLOVE BOX
8130ALAMP SUB-ASSY, INSTRUMENT PANEL, NO.1
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
81380FLAMP ASSY, CONSOLE BOX
813A0LAMP ASSY, INSTRUMENT PANEL
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH
ILLUMINATED ENTRY SYSTEM-MULTI-COLOR&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION)
13 parts on this diagram · 3 diagrams in section
