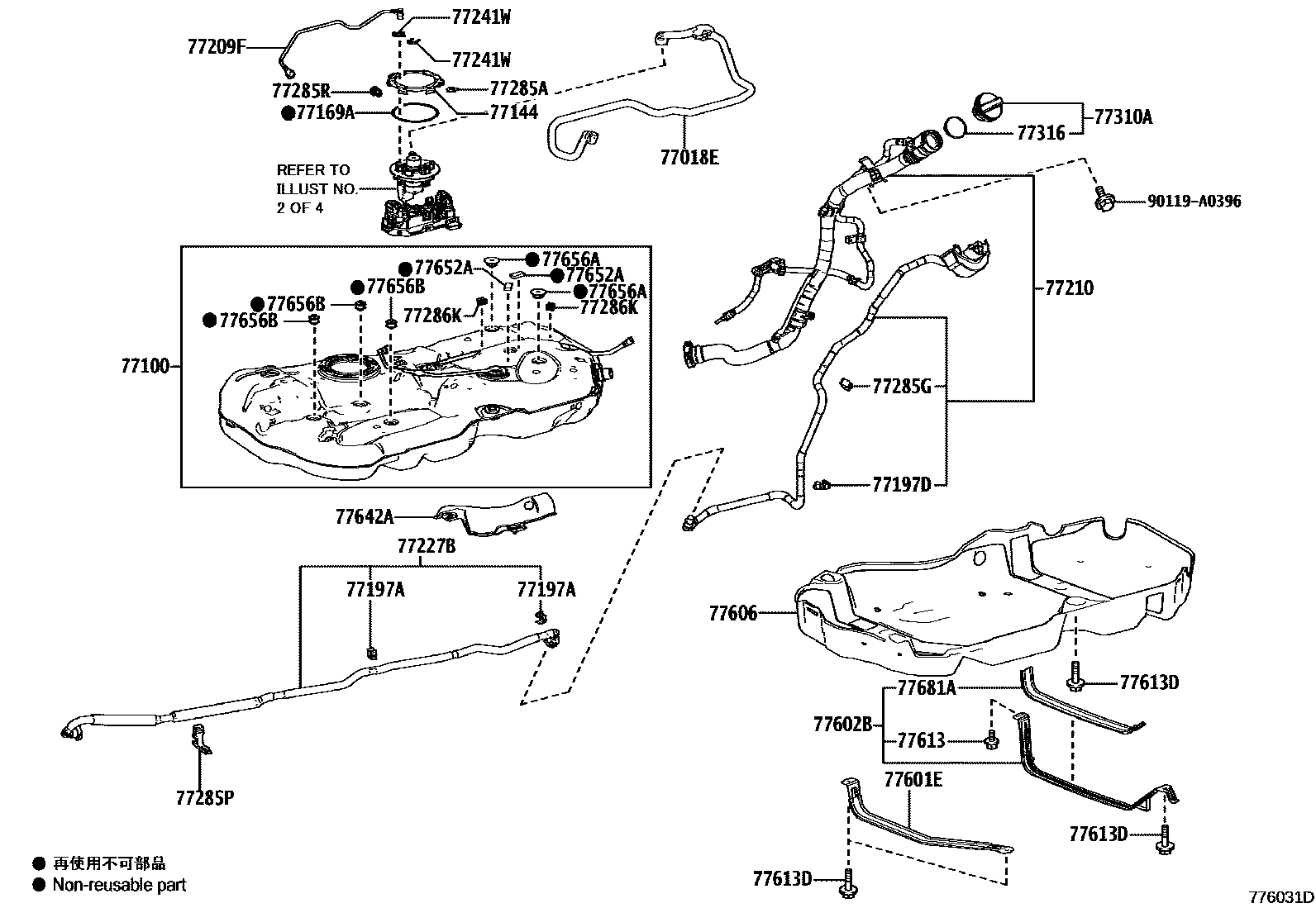

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL LID OPENER

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-0E080iAALH15,TALH17202210

main77018-0E140iTALA1#202210

77100TANK ASSY, FUEL

main77001-0E200iTALA1#202210

main77001-0E270iAALH15,TALH17202210

77144RETAINER, FUEL PUMP GAUGE

main77144-06040iAALH15,TALA1#,TALH17202210

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0R030iTALA1#202210-202308

sub77169-F4050

main77169-F4050iTALA1#202308

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iAALH15,TALA1#,TALH17202210

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-33080iAALH15,TALA1#,TALH17202210

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0E140iAALH15,TALH17202210

main77209-0E200iTALA1#202210

77210PIPE ASSY, FUEL TANK FILLER

main77210-0E230iTALA1#202210

main77210-0E240iAALH15,TALH17202210

77227BTUBE, FUEL TANK BREATHER, NO.7

main77227-0E130iTALA1#202210

main77227-0E140iAALH15,TALH17202210

77241WCLIP, TUBE JOINT

main77241-06020iTALA1#202210

77285ASUPPORT, FUEL RETURN AND MAIN TUBE

main77285-0E100iAALH15,TALH17202210

77285GCLAMP, FUEL TUBE, NO.1

main77285-06510iAALH15,TALA1#,TALH17202210

77285PCLAMP, NO.1(FOR CHARCOAL CANISTER PIPE)

main77285-42200iAALH15,TALH17202210

77285RCLAMP, FUEL TUBE, NO.1

main77285-06240iAALH15,TALA1#,TALH17202210

77286KCLAMP, FUEL TUBE, NO.2

main77286-30180iAALH15,TALH17202210

77310ACAP ASSY, FUEL TANK

main77300-06090iAALH15,TALH17202210

main77300-07040iTALA1#202210

77316GASKET, FUEL TANK CAP

main77316-06090iAALH15,TALA1#,TALH17202210

77601EBAND SUB-ASSY, FUEL TANK

main77601-0E080iAALH15,TALH17202210

main77601-0E140iTALA1#202210

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0E151iTALA1#202210-202405

main77602-0E152iTALA1#202405

main77602-0E161iAALH15,TALH17202210-202405

main77602-0E162iAALH15,TALH17202405

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-0E060iAALH15,TALH17202210

77613BOLT, FUEL TANK BAND SET

main90119-A0509iAALH15,TALA1#,TALH17202210

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-A0430iAALH15,TALA1#,TALH17202210

77642APROTECTOR, FUEL TANK, NO.2

main77642-0E100iTALA1#202210

main77642-0E130iAALH15,TALH17202210

77652CUSHION, FUEL TANK, NO.1

main77651-06060iTALA1#202210

77652ACUSHION, FUEL TANK, NO.2

main77652-0E090iTALA1#202210

main77652-0E100iAALH15,TALH17202210

77656ACUSHION, FUEL TANK, NO.4

main77656-0E050iAALH15,TALH17202210

77656BCUSHION, FUEL TANK, NO.6

main77656-06030iTALA1#202210

77681ASEAT, FUEL TANK BAND

main77681-0E120iTALA1#202210

main77681-0R100iAALH15,TALH17202210

90119A0396

main90119-A0396

29 parts on this diagram · 8 diagrams in section
