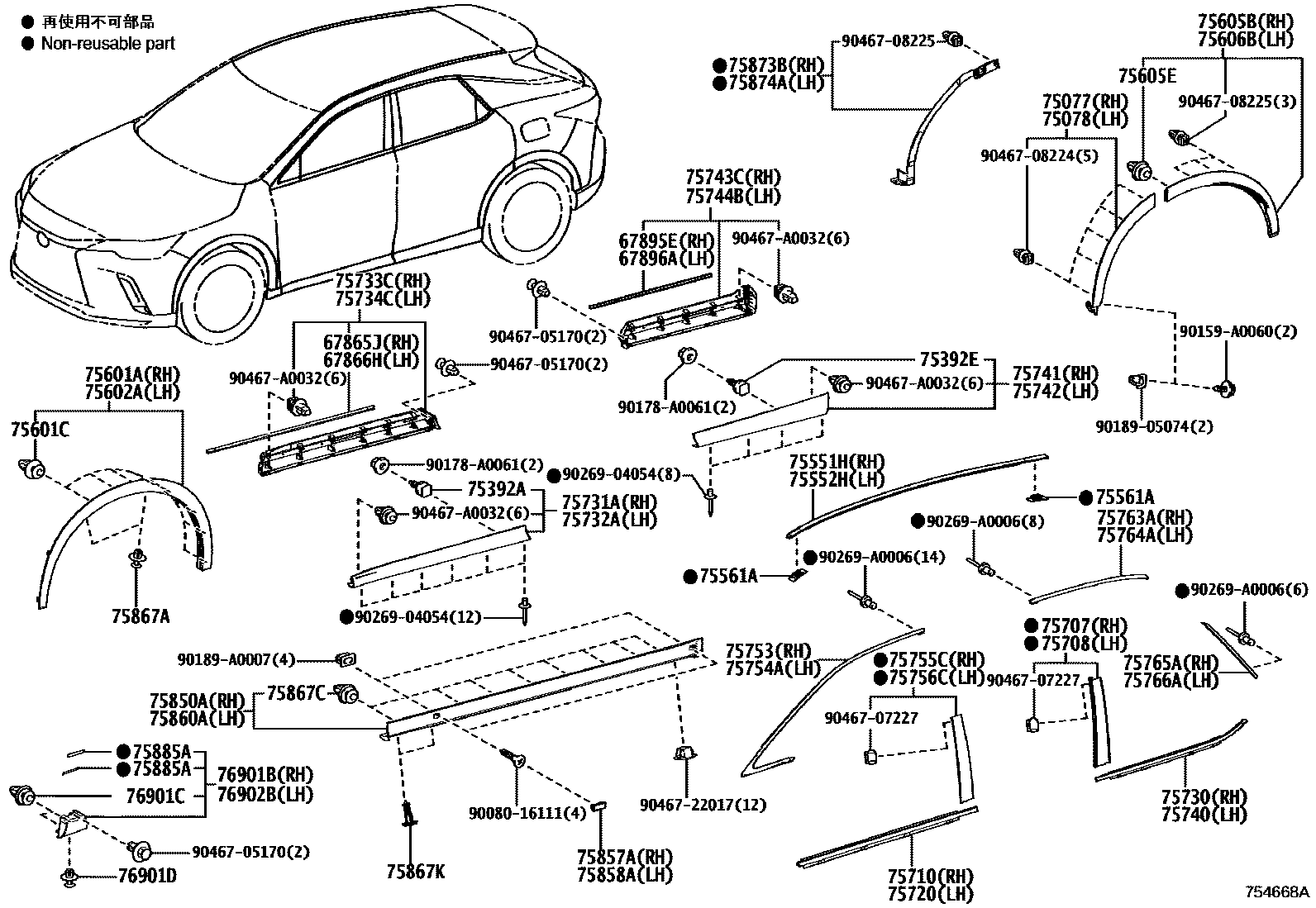

SIDE MOULDING
67865JWEATHERSTRIP, FRONT DOOR, NO.3 RH
67866HWEATHERSTRIP, FRONT DOOR, NO.3 LH
67895EWEATHERSTRIP, REAR DOOR, NO.3 RH
67896AWEATHERSTRIP, REAR DOOR, NO.3 LH
75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
PAINT REQ.
75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
PAINT REQ.
75392ARETAINER, OUTSIDE MOULDING, NO.1
75392ERETAINER, OUTSIDE MOULDING, NO.1
75551HMOULDING, ROOF DRIP SIDE, RH
MOON ROOF-WITH(PANORAMA ROOF)
MOON ROOF-WITH(MOON ROOF)
75552HMOULDING, ROOF DRIP SIDE, LH
MOON ROOF-WITH(PANORAMA ROOF)
MOON ROOF-WITH(MOON ROOF)
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
PAINT REQ.
75601CCLIP, FRONT FENDER MOULDING
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
PAINT REQ.
75605BMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
PAINT REQ.
75605ECLIP, QUARTER OUTSIDE MOULDING
75606BMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
PAINT REQ.
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
PAINT REQ.
NO PAINT REQ.,BLACK SPORT PACKAGE
75732AMOULDING, FRONT DOOR, OUTSIDE LH
NO PAINT REQ.
PAINT REQ.
NO PAINT REQ.,BLACK SPORT PACKAGE
75733CMOULDING, FRONT DOOR, OUTSIDE REAR RH
75734CMOULDING, FRONT DOOR, OUTSIDE REAR LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
NO PAINT REQ.
PAINT REQ.
NO PAINT REQ.,BLACK SPORT PACKAGE
75742MOULDING, REAR DOOR, OUTSIDE LH
NO PAINT REQ.
PAINT REQ.
NO PAINT REQ.,BLACK SPORT PACKAGE
75743CMOULDING, REAR DOOR OUTSIDE, LWR RR RH
BLACK SPORT PACKAGE
75744BMOULDING, REAR DOOR OUTSIDE, LWR RR LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
75857ACOVER, ROCKER PANEL MOULDING, RH
75858ACOVER, ROCKER PANEL MOULDING, LH
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
75867KCLIP, ROCKER PANEL MOULDING
75873BMOULDING, QUARTER WHEEL OPENING, RH
75874AMOULDING, QUARTER WHEEL OPENING, LH
75885ATAPE, MOULDING, NO.6
76901BMUDGUARD SUB-ASSY, FENDER PANEL, RH
BLACK SPORT PACKAGE
76901CCLIP, FENDER PANEL MUDGUARD
76901DCLIP, FENDER PANEL MUDGUARD
76902BMUDGUARD SUB-ASSY, FENDER PANEL, LH
BLACK SPORT PACKAGE
9008016111
main90080-16111
90159A0060
main90159-A0060
90178A0061
main90178-A0061
9018905074
main90189-05074
90189A0007
main90189-A0007
9026904054
main90269-04054
90269A0006
main90269-A0006
9046705170
main90467-05170
9046707227
main90467-07227
9046708224
main90467-08224
9046708225
main90467-08225
9046722017
main90467-22017
90467A0032
main90467-A0032
66 parts on this diagram · 2 diagrams in section
