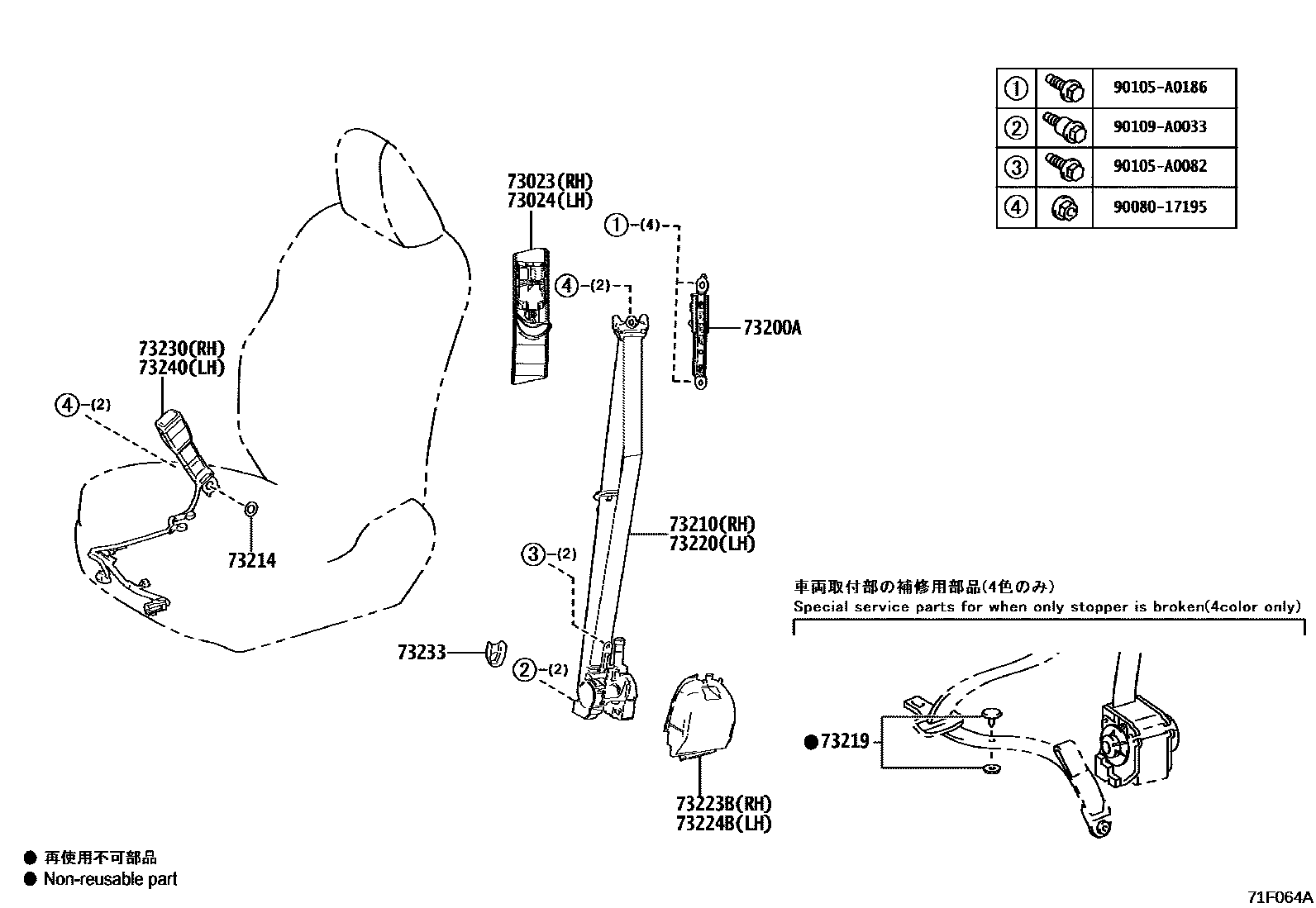

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
73214PLATE, FRONT SEAT BELT ANCHOR
(L)
(J)
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
9008017195
main90080-17195
90105A0082
main90105-A0082
90105A0186
main90105-A0186
90109A0033
main90109-A0033
16 parts on this diagram · 2 diagrams in section
