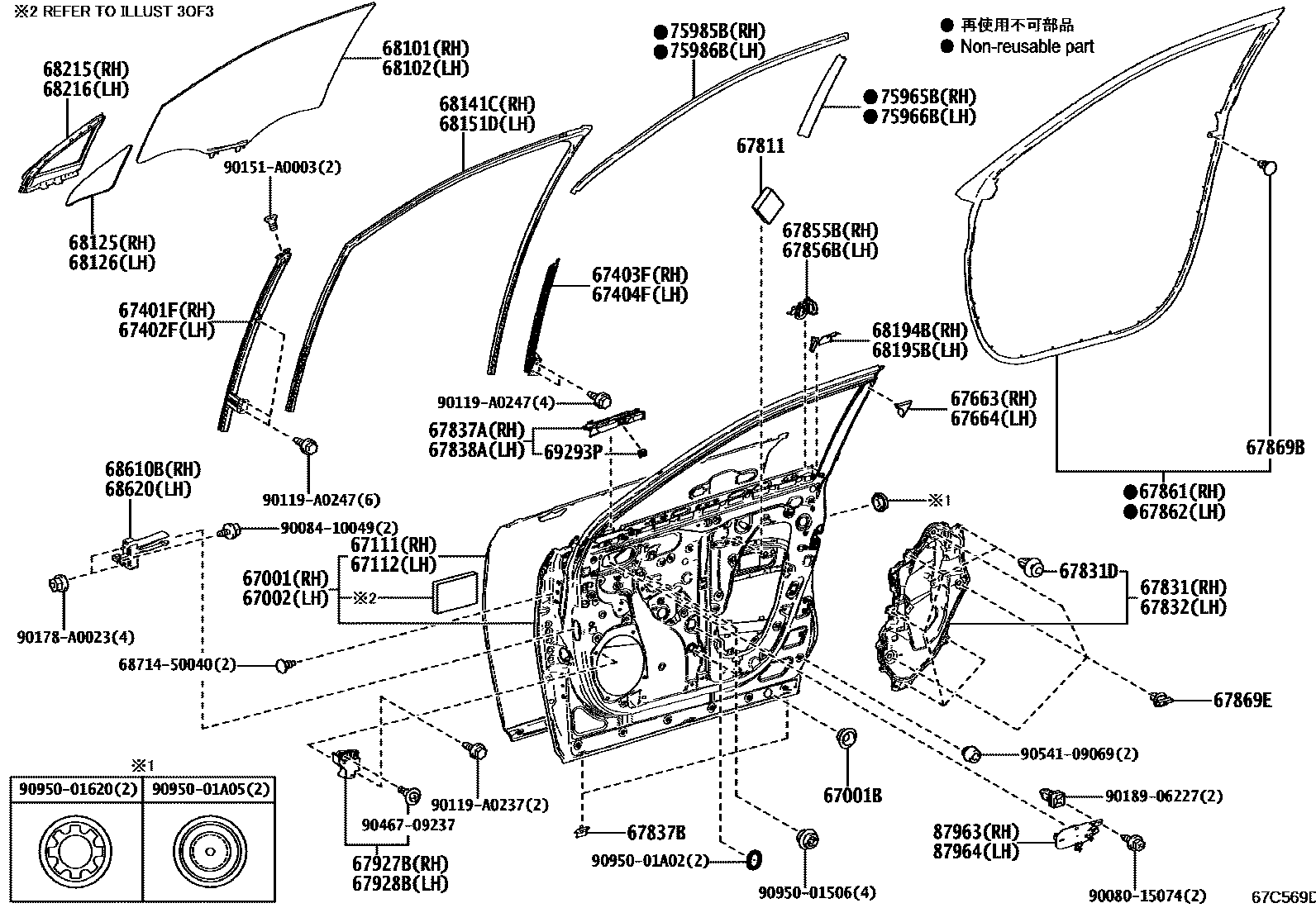

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1HIGH DECREMENT MASTIC SEAL

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0E250iAALH15,TALA1#,TALH17202210

67001BPLUG, HOLE(FOR FRONT DOOR PANEL)

main90950-01958iAALH15,TALA1#,TALH17202210

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0E210iAALH15,TALA1#,TALH17202210

67111PANEL, FRONT DOOR, OUTER RH

main67111-0E130iAALH15,TALA1#,TALH17202210

67112PANEL, FRONT DOOR, OUTER LH

main67112-0E130iAALH15,TALA1#,TALH17202210

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0E070iAALH15,TALA1#,TALH17202210

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0E070iAALH15,TALA1#,TALH17202210

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0E120iAALH15,TALA1#,TALH17202210

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0E110iAALH15,TALA1#,TALH17202210

67663GARNISH, DOOR FRAME, UPPER RH

main67663-0E130iAALH15,TALA1#,TALH17202210

67664GARNISH, DOOR FRAME, UPPER LH

main67664-0E120iAALH15,TALA1#,TALH17202210

67811PAD, FRONT DOOR SILENCER

main67811-30100iAALH15,TALA1#,TALH17202210

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0E140iAALH15,TALA1#,TALH17202210

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-A0005iAALH15,TALA1#,TALH17202210

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0E140iAALH15,TALA1#,TALH17202210

67837ASEAL, FRONT DOOR VENT, RH

main67837-0E140iAALH15,TALA1#,TALH17202210

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0E060iAALH15,TALA1#,TALH17202210

67838ASEAL, FRONT DOOR VENT, LH

main67838-0E050iAALH15,TALA1#,TALH17202210

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-0E090iAALH15,TALA1#,TALH17202210

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-0E080iAALH15,TALA1#,TALH17202210

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0E140iAALH15,TALA1#,TALH17202210

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0E140iAALH15,TALA1#,TALH17202210

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-26050iAALH15,TALA1#,TALH17202210

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-0E010iAALH15,TALA1#,TALH17202210

67927BCUSHION, SEPARATION DOOR STIFFENER, NO.1

main67927-0E150iAALH15,TALA1#,TALH17202210

67928BCUSHION, SEPARATION DOOR STIFFENER, NO.2

main67928-0E100iAALH15,TALA1#,TALH17202210

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0E240iAALH15,TALA1#,TALH17202210

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0E240iAALH15,TALA1#,TALH17202210

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0E040iAALH15,TALA1#,TALH17202210

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0E040iAALH15,TALA1#,TALH17202210

68141CRUN, FRONT DOOR GLASS, RH

main68141-0E130iAALH15,TALA1#,TALH17202210

68151DRUN, FRONT DOOR GLASS, LH

main68151-0E130iAALH15,TALA1#,TALH17202210

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-0E030iAALH15,TALA1#,TALH17202210

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-0E030iAALH15,TALA1#,TALH17202210

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-0E010iAALH15,TALA1#,TALH17202210

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-0E010iAALH15,TALA1#,TALH17202210

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0E160iAALH15,TALA1#,TALH17202210

68620CHECK ASSY, FRONT DOOR, LH

main68620-0E140iAALH15,TALA1#,TALH17202210

69293PRETAINER, FRONT DOOR CORNER SEAL

main67923-0E110iAALH15,TALA1#,TALH17202210

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-0E040iAALH15,TALA1#,TALH17202210

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-0E040iAALH15,TALA1#,TALH17202210

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-0E050iAALH15,TALA1#,TALH17202210

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-0E050iAALH15,TALA1#,TALH17202210

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0E100iAALH15,TALA1#,TALH17202210

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0E100iAALH15,TALA1#,TALH17202210

6871450040

main68714-50040

9008015074

main90080-15074

9008410049

main90084-10049

90119A0237

main90119-A0237

90119A0247

main90119-A0247

90151A0003

main90151-A0003

90178A0023

main90178-A0023

9018906227

main90189-06227

9046709237

main90467-09237

9054109069

main90541-09069

9095001506

main90950-01506

9095001620

main90950-01620

9095001A02

main90950-01A02

9095001A05

main90950-01A05

59 parts on this diagram · 3 diagrams in section
