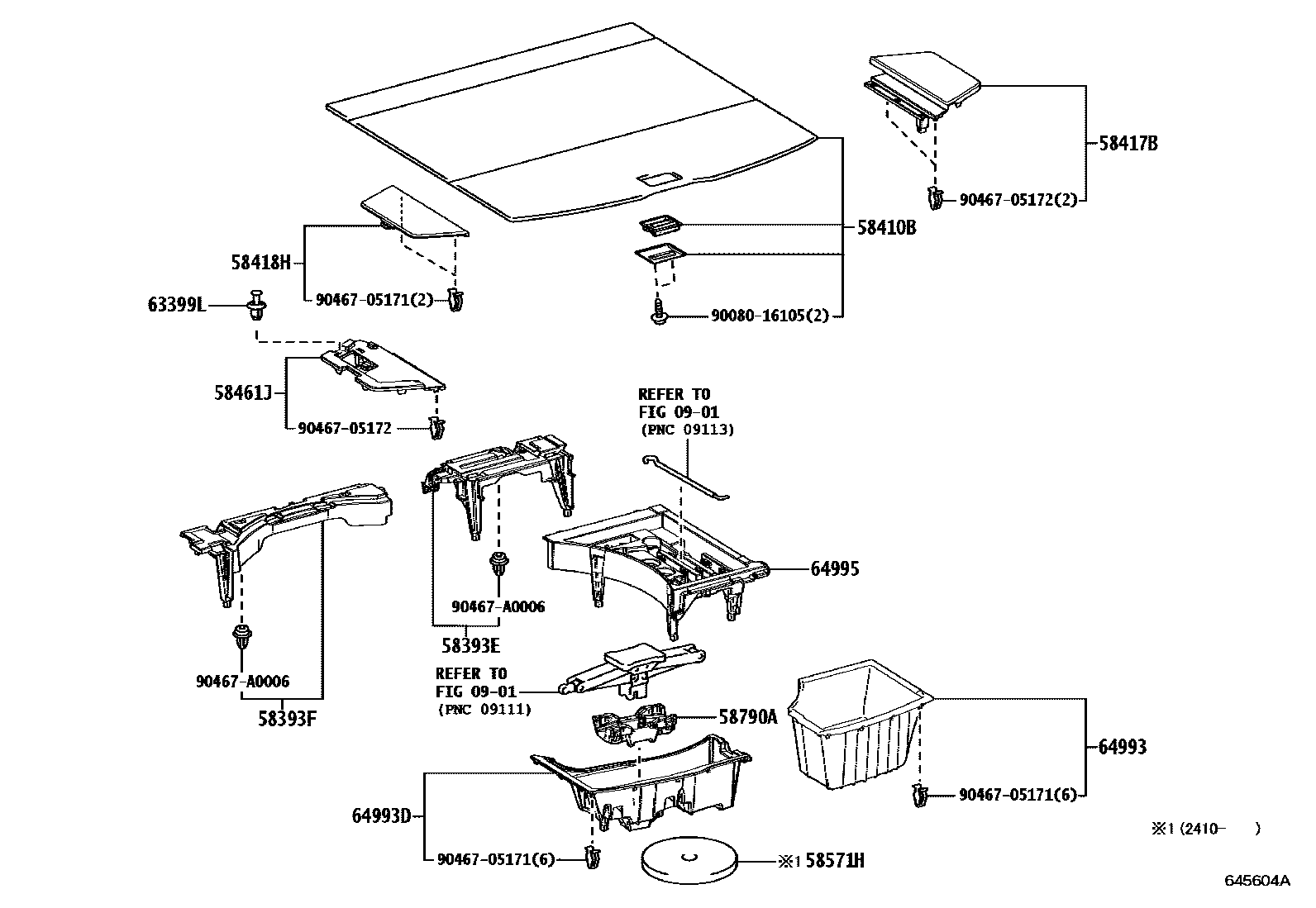

DECK BOARD & DECK TRIM COVER
0901
58393ESUPPORT, DECK BOARD SET
58393FSUPPORT, DECK BOARD SET, LH
58410BBOARD ASSY, DECK
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
58417BBOARD, REAR FLOOR, REAR RH
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM2#,3#
58418HBOARD, REAR FLOOR, REAR LH
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
58461JCOVER, JUNCTION BLOCK SERVICE, LH
58571HCARPET, REAR FLOOR
58790ACARRIER ASSY, JACK
63399LCLIP, JUNCTION BLOCK SERVICE COVER, LH
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
9008016105
main90080-16105
9046705171
main90467-05171
9046705172
main90467-05172
90467A0006
main90467-A0006
17 parts on this diagram · 3 diagrams in section
