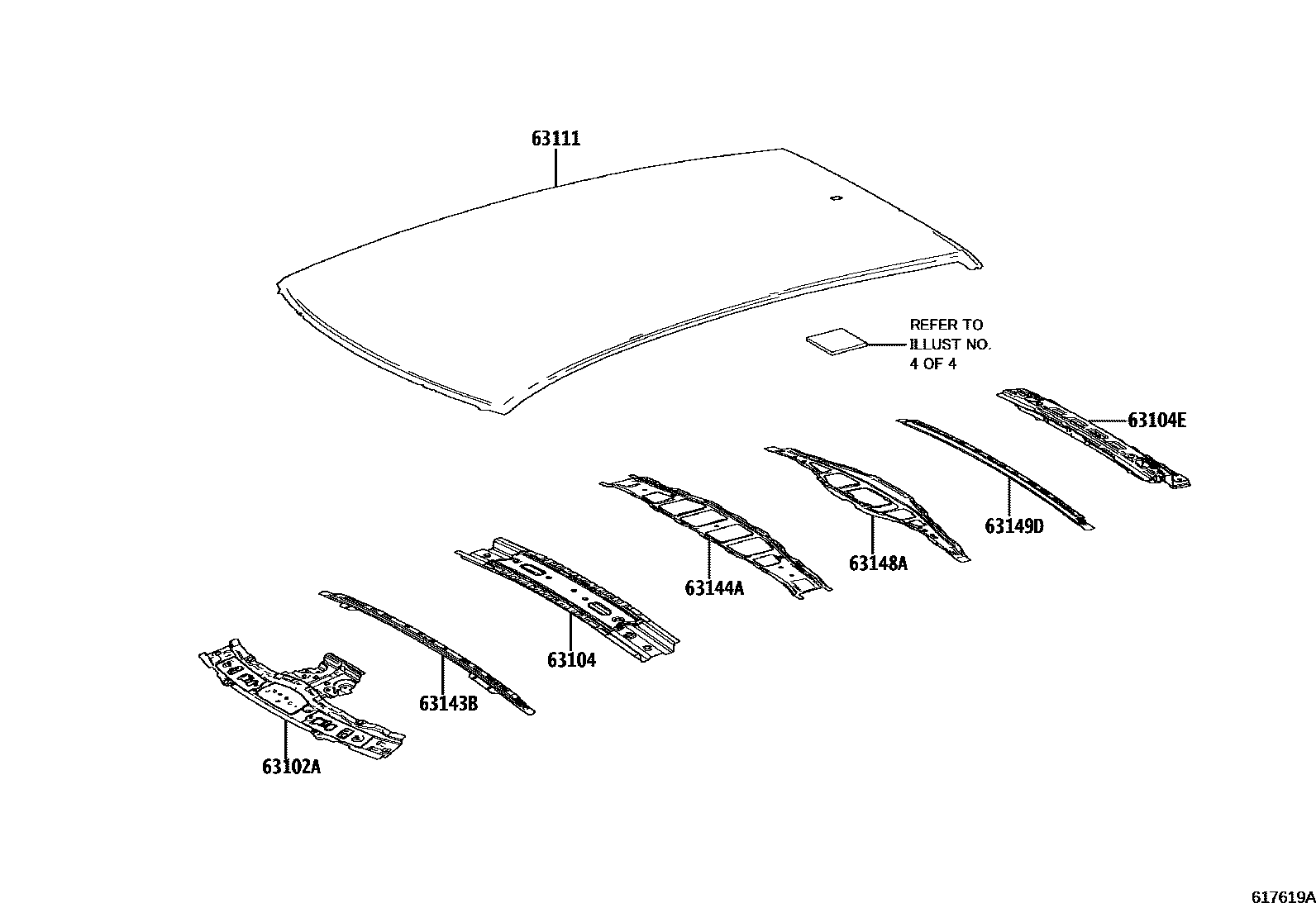

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL) 0002 1ROOF PANEL(MOON/PANORAMA) 0003 1SLIDING ROOF(MOON) 0004 1SLIDING ROOF(PANORAMA) 0005 1ROOF RACK 0006 1HIGH DECREMENT MASTIC SEAL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E918iAALH15,TALA1#202210

main63102-0E919iTALH17202210

MOON ROOF-WITH(MOON ROOF)

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-0E160iAALH15,TALA1#202210

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-0E900iAALH15,TALA1#,TALH17202210

63111PANEL, ROOF

main63111-0E480iTALH17202210

MOON ROOF-WITH(MOON ROOF)

main63111-0E500iAALH15,TALA1#202210

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0E160iAALH15,TALA1#202210

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-0E140iAALH15,TALA1#,TALH17202210

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-0E100iAALH15,TALA1#,TALH17202210

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-0E070iAALH15,TALA1#,TALH17202210

8 parts on this diagram · 6 diagrams in section
