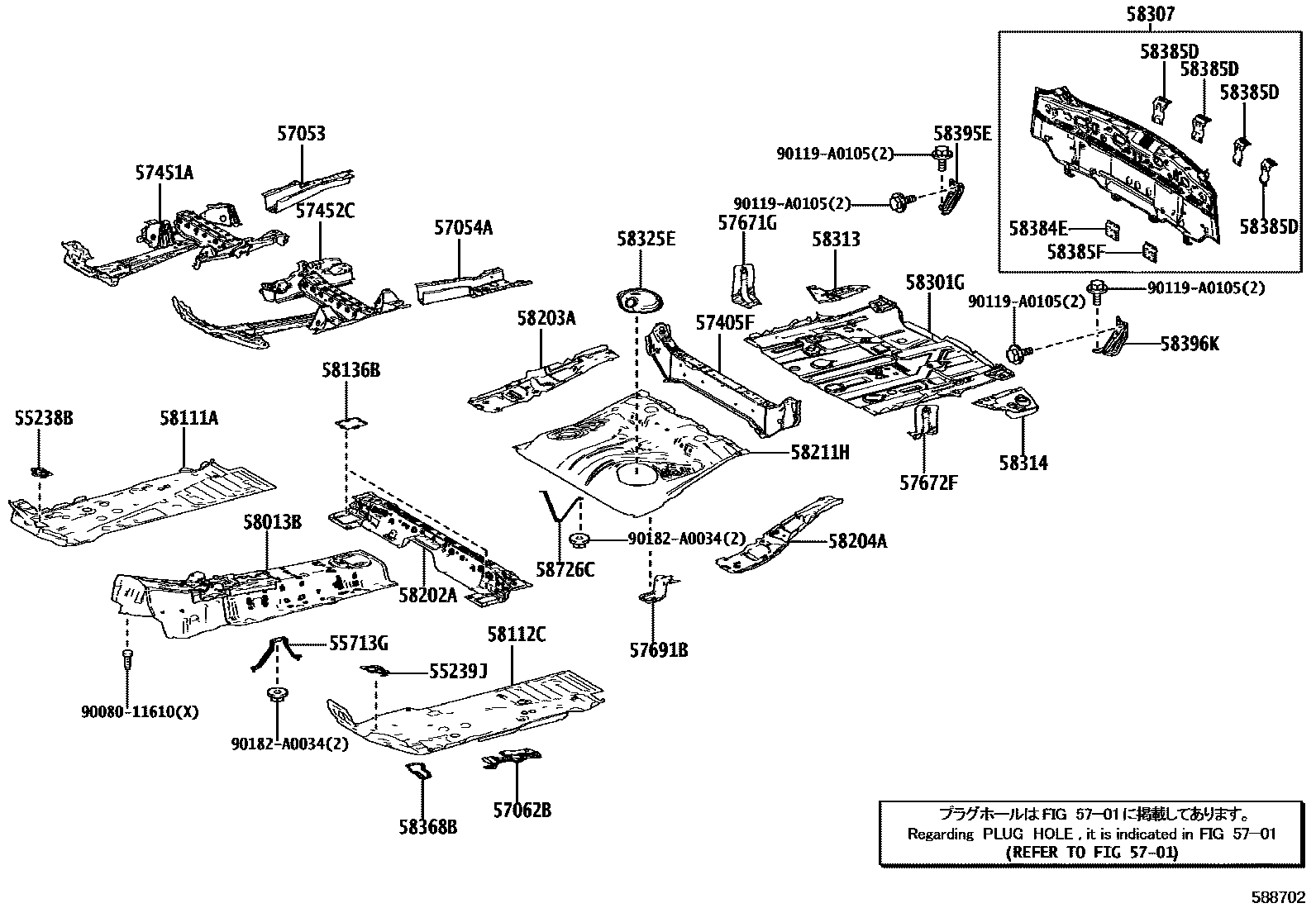

FLOOR PAN & LOWER BACK PANEL
55238BPLATE, DASH PANEL INSULATOR, LOWER RH
55239JPLATE, DASH PANEL INSULATOR, LOWER LH
55713GBRACKET, FRONT LOWER PANEL
5701
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH
57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57671GMEMBER, REAR FLOOR CROSS, NO.1 RH
57672FMEMBER, REAR FLOOR CROSS, NO.1 LH
57691BBRACKET, FUEL TANK MOUNTING, FRONT CENTER
58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58136BCOVER, CENTER FLOOR HOLE
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58211HPAN, CENTER FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58368BBRACKET, FUEL TUBE, NO.2
58384EGUSSET, LOWER BACK PANEL, NO.1 RH
58385DBRACKET, REAR BUMPER COVER
58385FGUSSET, LOWER BACK PANEL, NO.1 LH
58395EGUSSET, BACK DOOR OPENING, LOWER RH
(L)
(J)
58396KGUSSET, BACK DOOR OPENING, LOWER LH
(L)
(J)
58726CSTAY, ENGINE SERVICE COVER, NO.2
9008011610
main90080-11610
90119A0105
main90119-A0105
90182A0034
main90182-A0034
36 parts on this diagram · 2 diagrams in section
