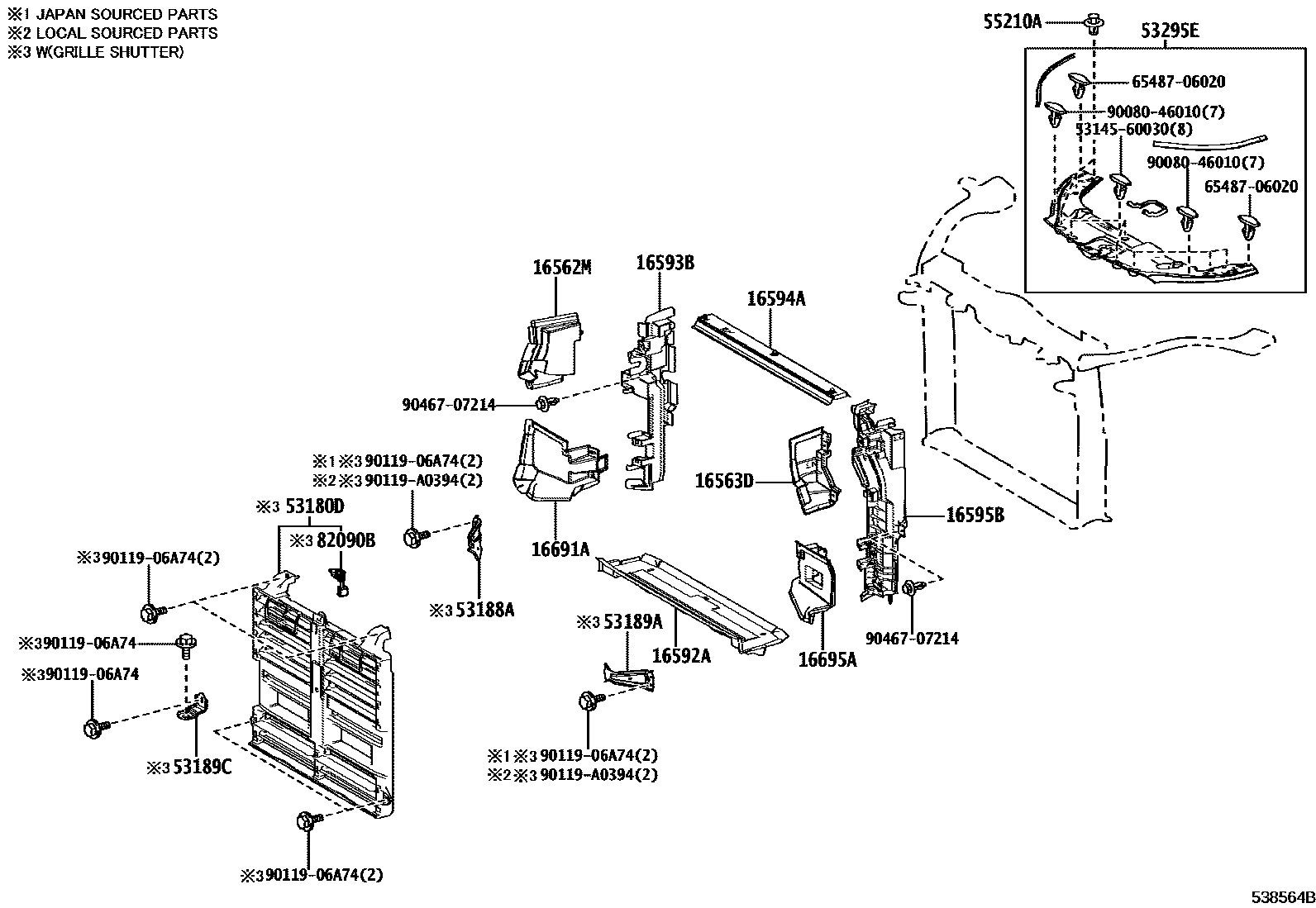

FRONT FENDER APRON & DASH PANEL
16562MSEAL, RADIATOR TO SUPPORT, NO.2
16563DSEAL, RADIATOR TO SUPPORT, NO.3
16592AGUIDE, RADIATOR AIR, NO.3
16593BGUIDE, RADIATOR AIR, NO.1 RH
16594AGUIDE, RADIATOR AIR, NO.2
16595BGUIDE, RADIATOR AIR, NO.1 LH
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
F SPORT
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
F SPORT
53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH
53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH
53189CBRACKET, RADIATOR SHUTTER SUPPORT, CENTER
53295ESEAL, COOL AIR INTAKE DUCT
55210ACLIP
82090BWIRE ASSY, EXTENSION
5314560030BRACKET,RADIATOR GRILLE MOUNTING, RH
main53145-60030
6548706020CLIP, CORNER PROTECTOR
main65487-06020
9008046010
main90080-46010
9011906A74
main90119-06A74
90119A0394
main90119-A0394
9046707214
main90467-07214
22 parts on this diagram · 3 diagrams in section
