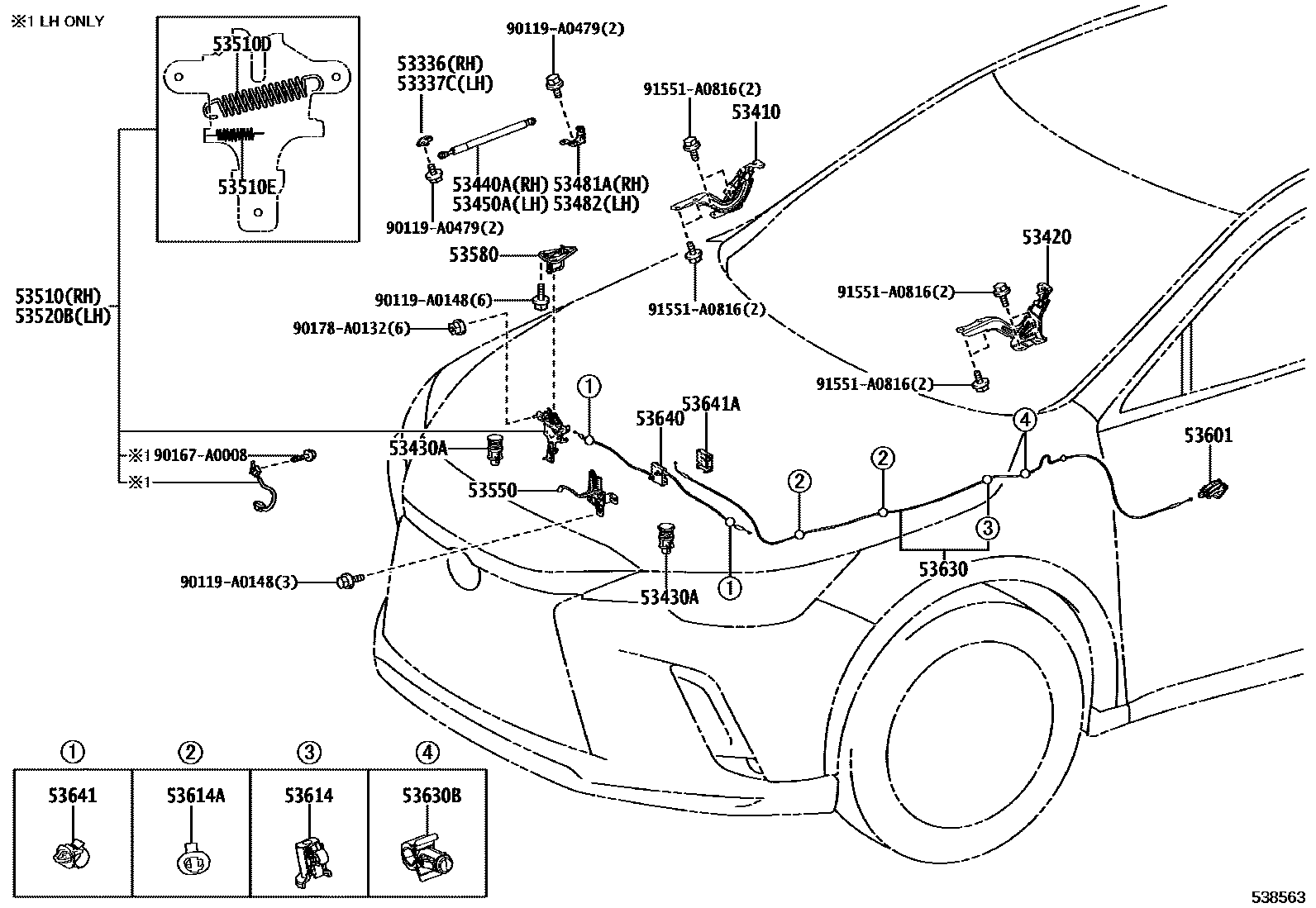

HOOD LOCK & HINGE
53336BRACKET, HOOD STAY, RH
53337CBRACKET, HOOD STAY, LH
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53430ASPRING, TENSION(FOR HOOD SUPPORT)
53440ASUPPORT ASSY, HOOD, RH
53450ASUPPORT ASSY, HOOD, LH
53481ABRACKET, HOOD SUPPORT, RH
53482BRACKET, HOOD SUPPORT, LH
53510LOCK ASSY, HOOD
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.0,CW=14
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53520BLOCK ASSY, HOOD, LH
53550HOOK ASSY, HOOD AUXILIARY CATCH
53580STRIKER ASSY, HOOD LOCK
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM2#,3#
BLACK,TRIM0#,1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,4#
53614CLAMP, HOOD LOCK CONTROL CABLE
53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
53640JUNCTION ASSY, HOOD LOCK CONTROL
53641CLAMP, HOOD LOCK CONTROL WIRE
53641ACOVER, HOOD LOCK CONTROL
90119A0148
main90119-A0148
90119A0479
main90119-A0479
90167A0008
main90167-A0008
90178A0132
main90178-A0132
91551A0816
main91551-A0816
28 parts on this diagram · 1 diagram in section
