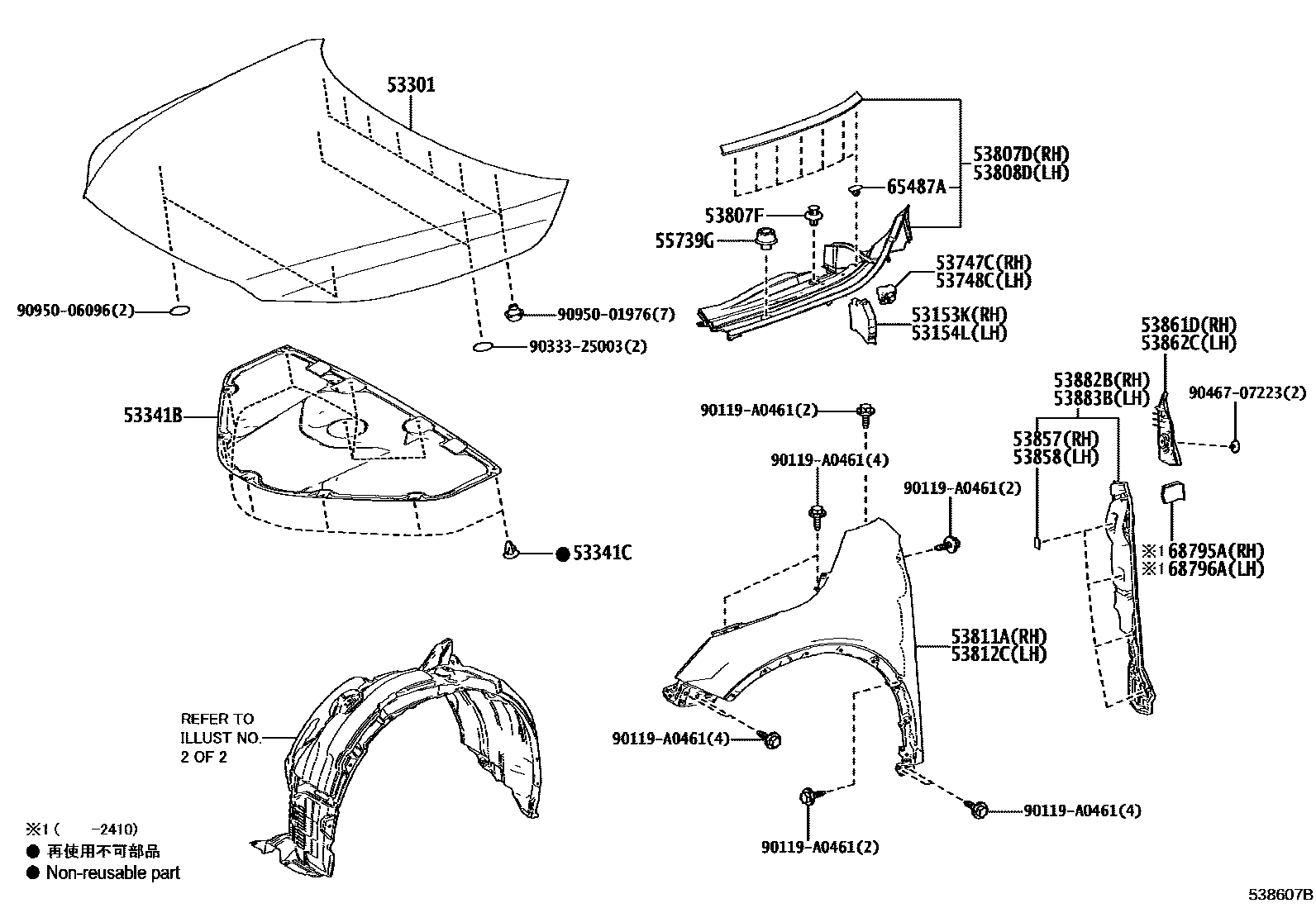

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53747CPLATE, AIR SEALED, RH
53748CPLATE, AIR SEALED, LH
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53807FCLIP, FRONT FENDER REINFORCEMENT
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53861DSEAL, FRONT FENDER TO DOOR HINGE, UPPER RH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
55739GSTOPPER, HOOD
65487ACLIP, CORNER PROTECTOR
68795ACOVER, DOOR HINGE, NO.1 RH
68796ACOVER, DOOR HINGE, NO.1 LH
90119A0461
main90119-A0461
9033325003
main90333-25003
9046707223
main90467-07223
9095001976
main90950-01976
9095006096
main90950-06096
27 parts on this diagram · 2 diagrams in section
