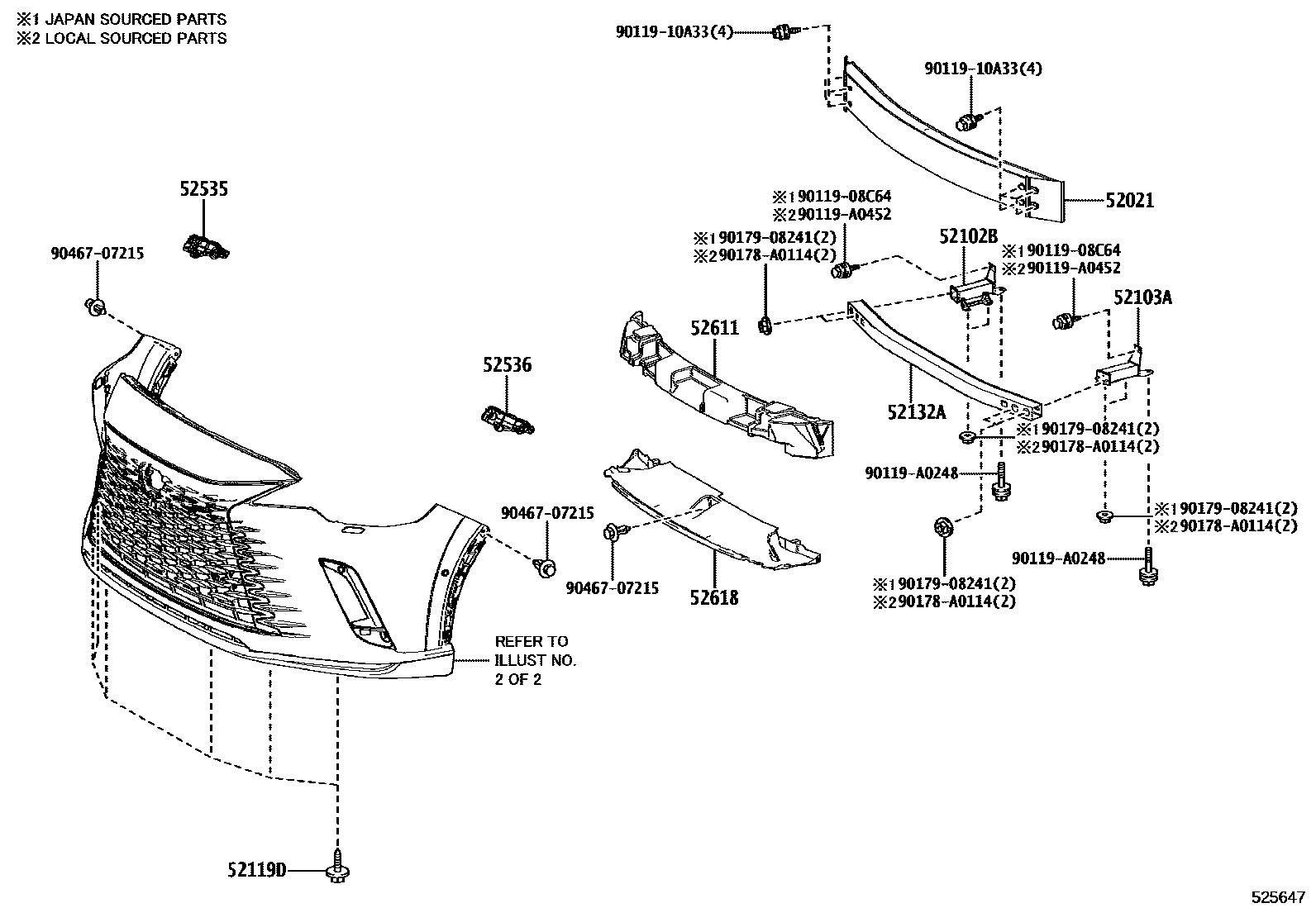

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT & BLACK SPORT PACKAGE0004 1F SPORT & BLACK SPORT PACKAGE0005 1F SPORT & BLACK SPORT PACKAGE0006 1F SPORT & BLACK SPORT PACKAGE

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0E150iAALH15,TALA1#202210

main52021-0E180iTALH17202210

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0E010iAALH15,TALA1#,TALH17202210

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0E010iAALH15,TALA1#,TALH17202210

52119DSCREW, NO.1

main90159-60477iAALH15,TALA1#,TALH17202210

(J)

main90159-A0059iAALH15,TALA1#,TALH17202210

(L)

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-0E040iAALH15,TALA1#,TALH17202210

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0E110iAALH15,TALA1#,TALH17202210

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0E090iAALH15,TALA1#,TALH17202210

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0E190iAALH15,TALA1#,TALH17202210

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0E120iAALH15,TALA1#,TALH17202210

9011908C64

main90119-08C64

9011910A33

main90119-10A33

90119A0248

main90119-A0248

90119A0452

main90119-A0452

90178A0114

main90178-A0114

9017908241

main90179-08241

9046707215

main90467-07215

16 parts on this diagram · 6 diagrams in section
