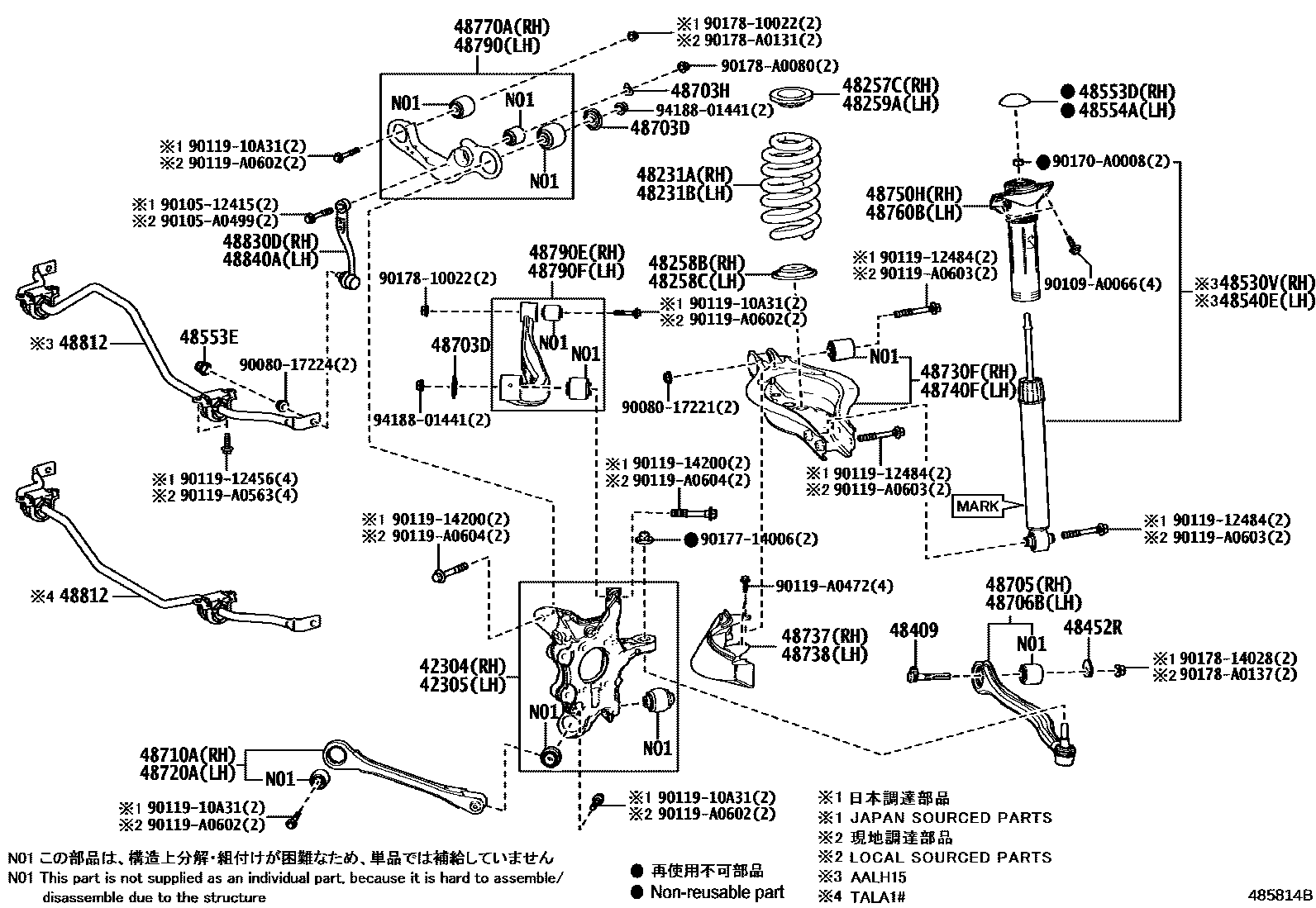

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
(L)
(J)
42305CARRIER SUB-ASSY, REAR AXLE, LH
(L)
(L)
(J)
48231ASPRING, COIL, REAR RH
sub48231-0E760
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
48231BSPRING, COIL, REAR LH
sub48231-0E760
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
TOWING PACKAGE-3500LBS&TOWING HITCH-TOWING RECEIVE HITCH & WIRE
TOWING HITCH-ACTIVITY MOUNT
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-48520
MARK 48530-48520,F SPORT
48530VABSORBER SET, SHOCK, REAR RH
MARK 48530-0E240
MARK 48530-0E250
MARK 48530-0E270
MARK 48530-0E310
MARK 48530-0E460
MARK 48530-0E470
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-48520
MARK 48540-48520,F SPORT
48540EABSORBER SET, SHOCK, REAR LH
MARK 48530-0E240
MARK 48530-0E250
MARK 48530-0E270
MARK 48530-0E310
MARK 48530-0E460
MARK 48530-0E470
48553DCAP, REAR SHOCK ABSORBER, RH
48553ECAP
48554ACAP, REAR SHOCK ABSORBER, LH
48703DWASHER(FOR REAR SUSPENSION ARM)
48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48790EARM ASSY, UPPER CONTROL, REAR RH NO.2
48790FARM ASSY, UPPER CONTROL, REAR LH NO.2
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9008017221
main90080-17221
9008017224
main90080-17224
9010512415
main90105-12415
90105A0499
main90105-A0499
90109A0066
main90109-A0066
9011910A31
main90119-10A31
9011912456
main90119-12456
9011912484
main90119-12484
9011914200
main90119-14200
90119A0472
main90119-A0472
90119A0563
main90119-A0563
90119A0602
main90119-A0602
90119A0603
main90119-A0603
90119A0604
main90119-A0604
90170A0008
main90170-A0008
9017714006
main90177-14006
9017810022
main90178-10022
9017814028
main90178-14028
90178A0080
main90178-A0080
90178A0131
main90178-A0131
90178A0137
main90178-A0137
9418801441
main94188-01441
58 parts on this diagram · 2 diagrams in section
