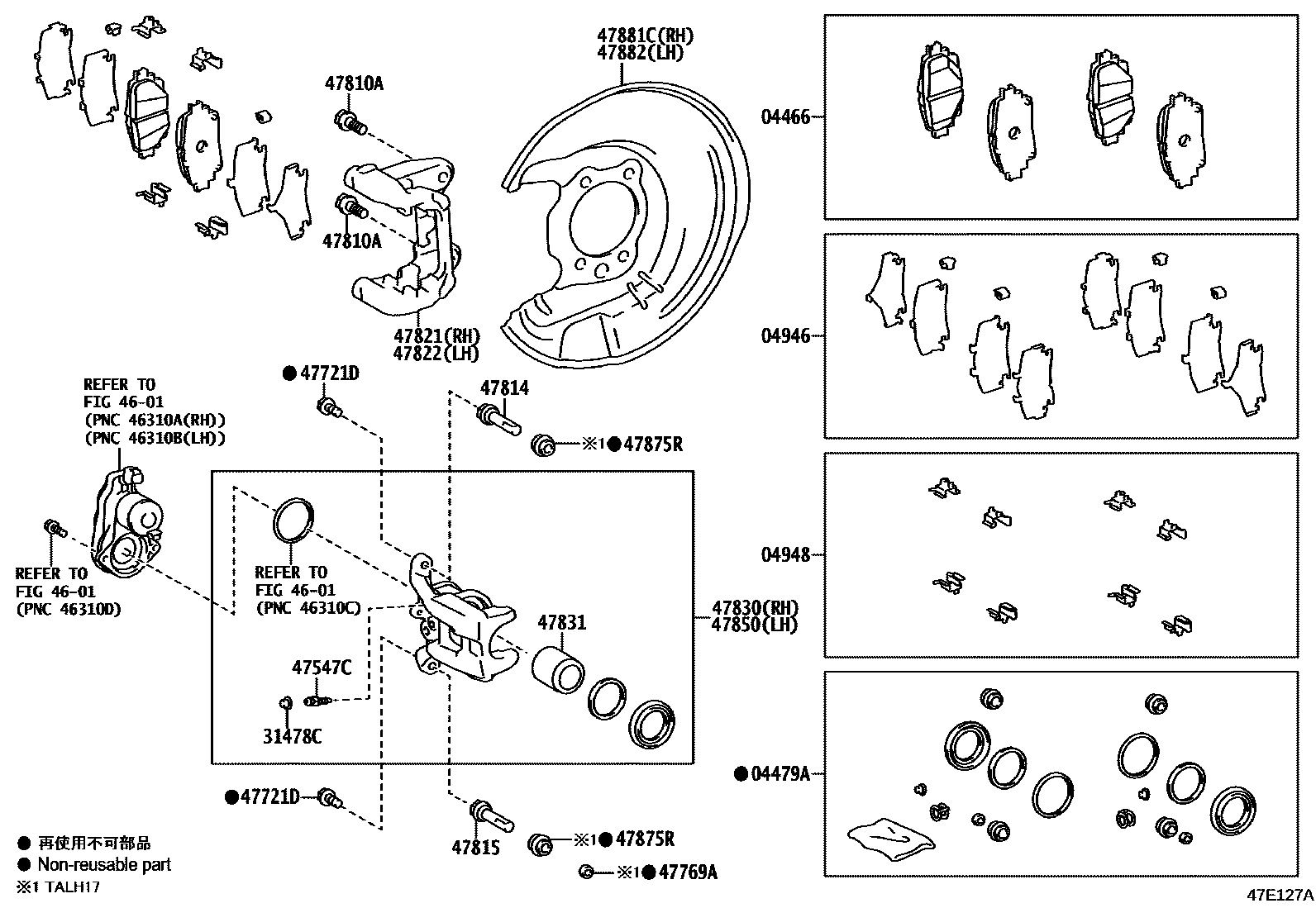

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02480iAALH15,TALA1#202210

MARK NBK D6363-FF

main04466-48170iTALH17¥6,600202210

MARK NBK D6363-FF

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02520iAALH15,TALA1#202210

main04479-58031iTALH17¥2,470202210

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02160iAALH15,TALA1#202210

main04946-48150iTALH17¥1,780202210

04948FITTING KIT, DISC BRAKE, REAR

main04948-02180iAALH15,TALA1#202210

main04948-48120iTALH17¥1,730202210

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAALH15,TALA1#,TALH17¥160202210

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAALH15,TALA1#,TALH17¥200202210

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iTALH17¥270202210

*8-1.00PX23-12.5

sub90016-AA614¥270

main90016-AA614iAALH15,TALA1#¥270202210

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iTALH17¥50202210

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14218iAALH15,TALA1#,TALH17¥310202210

(J)

main90105-A0486iAALH15,TALA1#,TALH17202210

(L)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0R050iAALH15,TALA1#202210

main47814-78010iTALH17¥510202210

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0R050iAALH15,TALA1#202210

main47815-78010iTALH17¥510202210

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0E140iAALH15,TALA1#202210

main47821-48170iTALH17¥4,780202210

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0E140iAALH15,TALA1#202210

main47822-48170iTALH17¥4,780202210

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0E140iAALH15,TALA1#202210

main47830-48170iTALH17¥26,100202210

47831PISTON, REAR DISC BRAKE

main47831-08020iAALH15,TALA1#202210-202307

main47831-0E111iAALH15,TALA1#202307

main47831-30460iTALH17¥920202210

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0E140iAALH15,TALA1#202210

main47850-48170iTALH17¥26,100202210

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iTALH17¥70202210

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-0E050iAALH15,TALA1#,TALH17202210

47882COVER, DISC BRAKE DUST, REAR LH

main47882-0E050iAALH15,TALA1#,TALH17202210

20 parts on this diagram · 1 diagram in section
