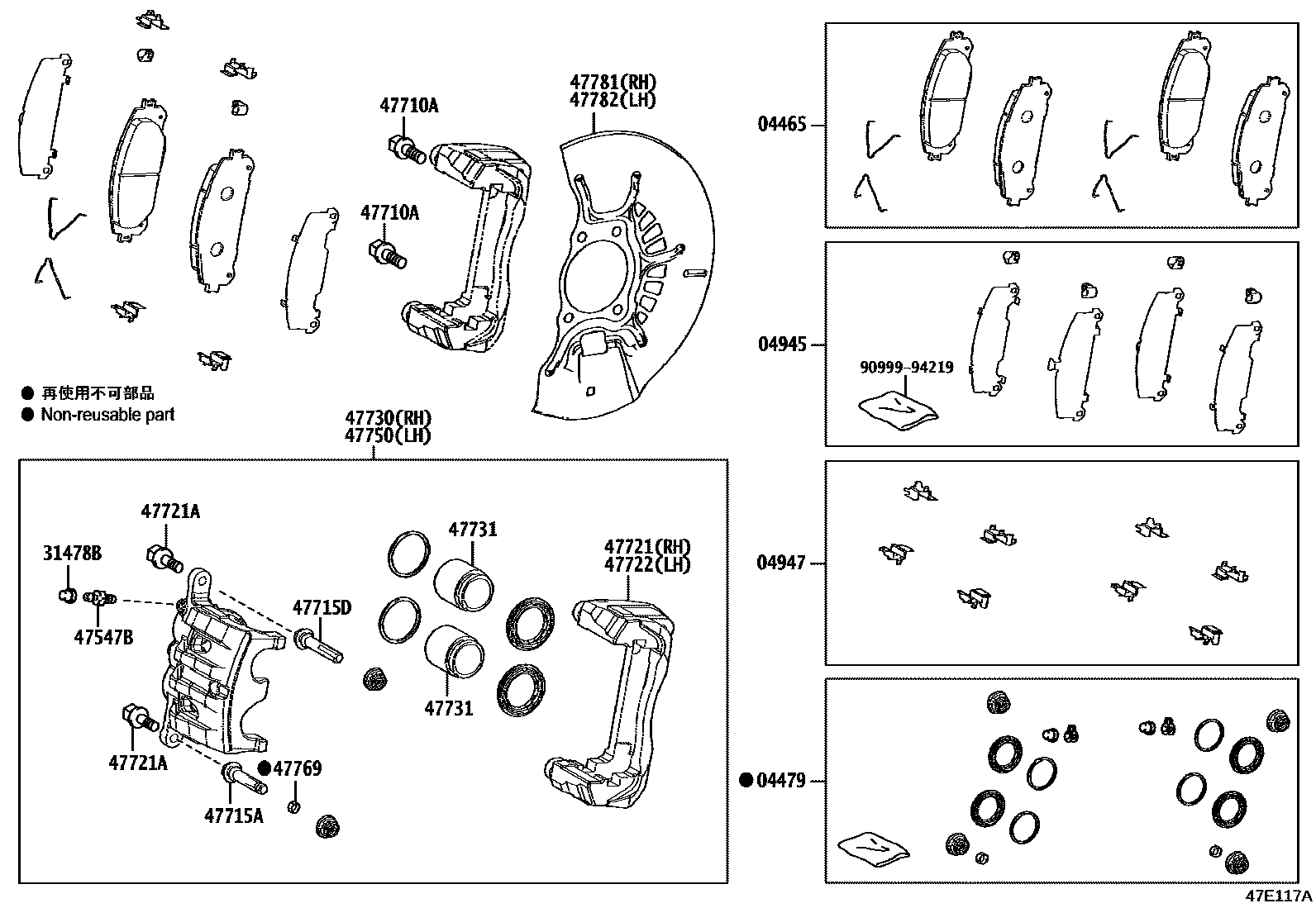

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1F SPORT 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-02530iAALH15,TALA1#¥11,300202210

MARK ADVICS VC084H

main04465-48270iTALH17¥11,600202210

MARK ADVICS VC115-FG,F SPORT

main04465-48270iTALA15¥11,600202210

MARK ADVICS VC115-FG

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02440iAALH15,TALA1#202210

main04478-48240iTALH17¥3,410202210

F SPORT

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02311iAALH15,TALA1#202210

main04945-48220iTALH17¥980202210

F SPORT

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E010iAALH15,TALA1#¥1,670202210

main04947-48100iTALH17¥4,650202210

F SPORT

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iTALH17¥190202210

F SPORT

main31478-30010iAALH15,TALA1#¥160202210

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAALH15,TALA1#¥200202210

main47547-50010iTALH17¥190202210

F SPORT

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-A0435iAALH15,TALA1#,TALH17202210

*14-1.5PX35.5-31

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-0E070iAALH15,TALA1#202210

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-0E070iAALH15,TALA1#202210

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0E070iAALH15,TALA1#202210-202302

main47721-0E071iAALH15,TALA1#202303

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA615iAALH15,TALA1#202210

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0E070iAALH15,TALA1#202210-202303

main47722-0E071iAALH15,TALA1#202303

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0E070iAALH15,TALA1#202210-202303

sub47730-0E071

main47730-0E071iAALH15,TALA1#202303

main47730-48270iTALH17¥38,700202210

47731PISTON, FRONT DISC BRAKE

main47731-0E070iAALH15,TALA1#202210

main47731-48260iTALA15¥1,060202210

F SPORT

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0E070iAALH15,TALA1#202210-202303

main47750-0E071iAALH15,TALA1#202303

main47750-48240iTALH17¥38,700202210

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0E070iAALH15,TALA1#¥240202210-202303

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0E060iAALH15,TALA1#202210

main47781-0E090iTALH17202210

F SPORT,(L)

main47781-0E090iTALH17202210

(L)

main47781-48060iTALH17¥1,530202210

(J)

main47781-48060iTALH17¥1,530202210

F SPORT,(J)

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0E060iAALH15,TALA1#202210

main47782-0E090iTALH17202210

(L)

main47782-0E090iTALH17202210

F SPORT,(L)

main47782-48060iTALH17¥1,530202210

(J)

main47782-48060iTALH17¥1,530202210

F SPORT,(J)

9099994219

main90999-94219

19 parts on this diagram · 3 diagrams in section
