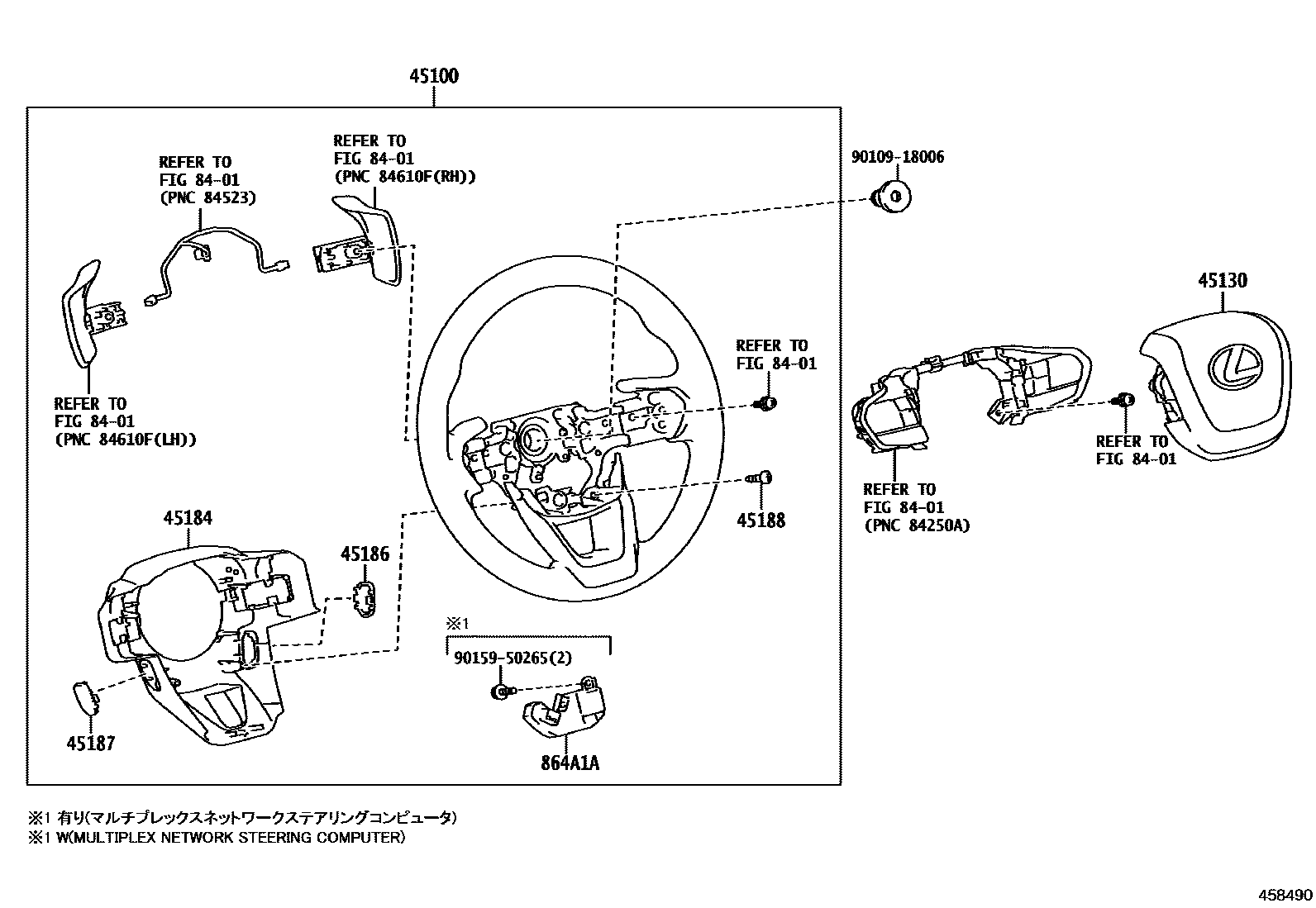

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-0E760-C0iTALH17202210

3-SPOKE,LEATHER,BLACK,RED NO.035,TRIM3#

main45100-0E760-C1iTALH17202210

3-SPOKE,LEATHER,BLACK, LT.GRAY NO.831,TRIM2#

main45100-F6080-C0iAALH15,TALA1#202210

3-SPOKE,LEATHER,BLACK/BLACK,TRIM0#,1#,2#,4#

45130BUTTON ASSY, HORN

main45130-F6020-C0iTALH17202210

BLACK,TRIM2#,3#

main45130-F6020-C0iTALH17202210

BLACK,TRIM0#,1#,2#,3#,4#

main45130-F6020-C0iTALH17202210

BLACK,TRIM0#,1#,2#,4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-F6010-C0iTALH17202210-202306

BLACK,TRIM2#,3#

main45184-F6010-C0iTALH17202210-202306

BLACK,TRIM0#,1#,2#,4#

main45184-F6011-C0iTALH17202307

BLACK,TRIM2#,3#

main45184-F6011-C0iTALH17202307

BLACK,TRIM0#,1#,2#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-F6010-C0iTALH17202210

BLACK,TRIM2#,3#

main45186-F6010-C0iTALH17202210

BLACK,TRIM0#,1#,2#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-F6010-C0iTALH17202210

BLACK,TRIM2#,3#

main45187-F6010-C0iTALH17202210

BLACK,TRIM0#,1#,2#,4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90080-16108iAALH15,TALA1#,TALH17202210

L=16.5

8401

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

9010918006

main90109-18006

9015950265

main90159-50265

10 parts on this diagram · 1 diagram in section
