OIL COOLER & TUBE (HEV OR BEV OR FCEV)

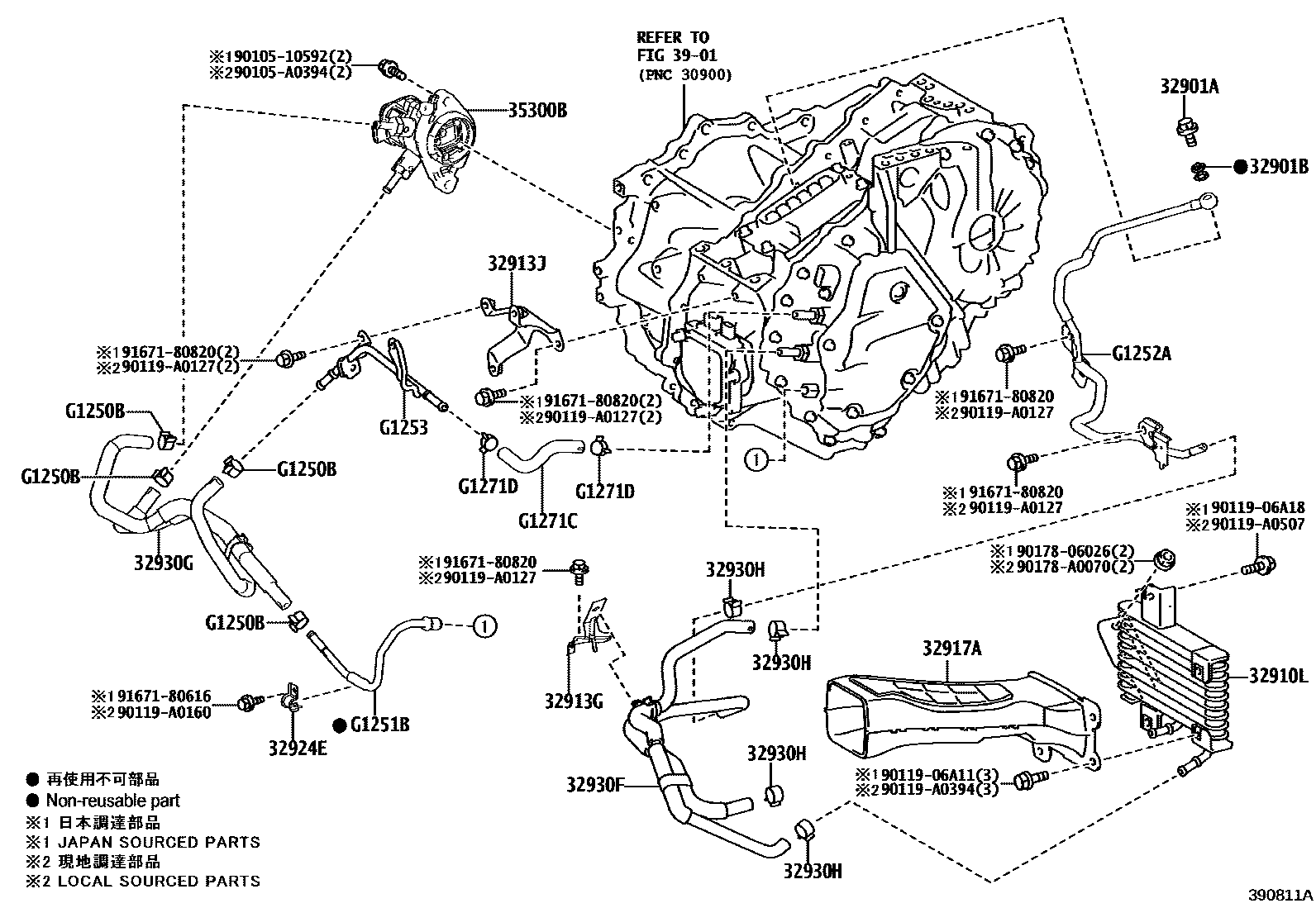

Parts diagram
32901ABOLT, UNION(FOR OIL COOLER)
main90401-12039i¥390202210
32901BGASKET(FOR OIL COOLER UNION)
main90430-12037i¥80202210
32910LCOOLER ASSY, OIL
main32910-0E130i202210-202411
32913GBRACKET, TRANSMISSION OIL COOLER
main32913-42050i¥520202210-202411
32913JBRACKET, TRANSMISSION OIL COOLER, NO.2
main32913-78030i¥820202210
32917ADUCT, TRANSMISSION OIL COOLER AIR
main32917-0E130i202210-202411
32924ECLAMP, OIL COOLER TUBE, NO.2
main32924-0E010i202210-202411
32930FHOSE ASSY, TRANSMISSION OIL COOLER, NO.1
main32930-0E040i202210-202411
main32930-0E210i202210
32930GHOSE ASSY, TRANSMISSION OIL COOLER, NO.2
main32930-F6020i202210-202411
32930HCLIP, NO.1(FOR OIL COOLER HOSE)
main90466-16004i¥180202210-202411
(J)
main90466-A0014i202210-202411
(L)
main90466-A0029i202210
35300BPUMP ASSY, OIL W/MOTOR
main35300-48070i¥41,100202210-202411
3901
G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)
main90466-16004i¥180202210-202411
(J)
main90466-A0014i202210
(L)
G1251BPIPE, MOTOR COOLING, NO.1
mainG12510E010i202210-202411
G1252APIPE, MOTOR COOLING, NO.2
mainG12520E020i202210-202411
mainG12520E030i202411
G1253PIPE, MOTOR COOLING, NO.3
mainG125478010i202210-202411
G1271CHOSE, MOTOR COOLING, NO.1
mainG12710E030i202210-202411
mainG12810E060i202411
G1271DCLIP, NO.1(FOR MOTOR COOLING HOSE)
main90466-16004i¥180202210
(J)
main90466-A0014i202210
(L)
9010510592
main90105-10592¥160
90105A0394
main90105-A0394
9011906A11
main90119-06A11¥60
9011906A18
main90119-06A18¥80
90119A0127
main90119-A0127
90119A0160
main90119-A0160
90119A0394
main90119-A0394
90119A0507
main90119-A0507
9017806026
main90178-06026¥80
90178A0070
main90178-A0070
9167180616
main91671-80616¥60
9167180820
main91671-80820¥80

30 parts on this diagram · 4 diagrams in section
