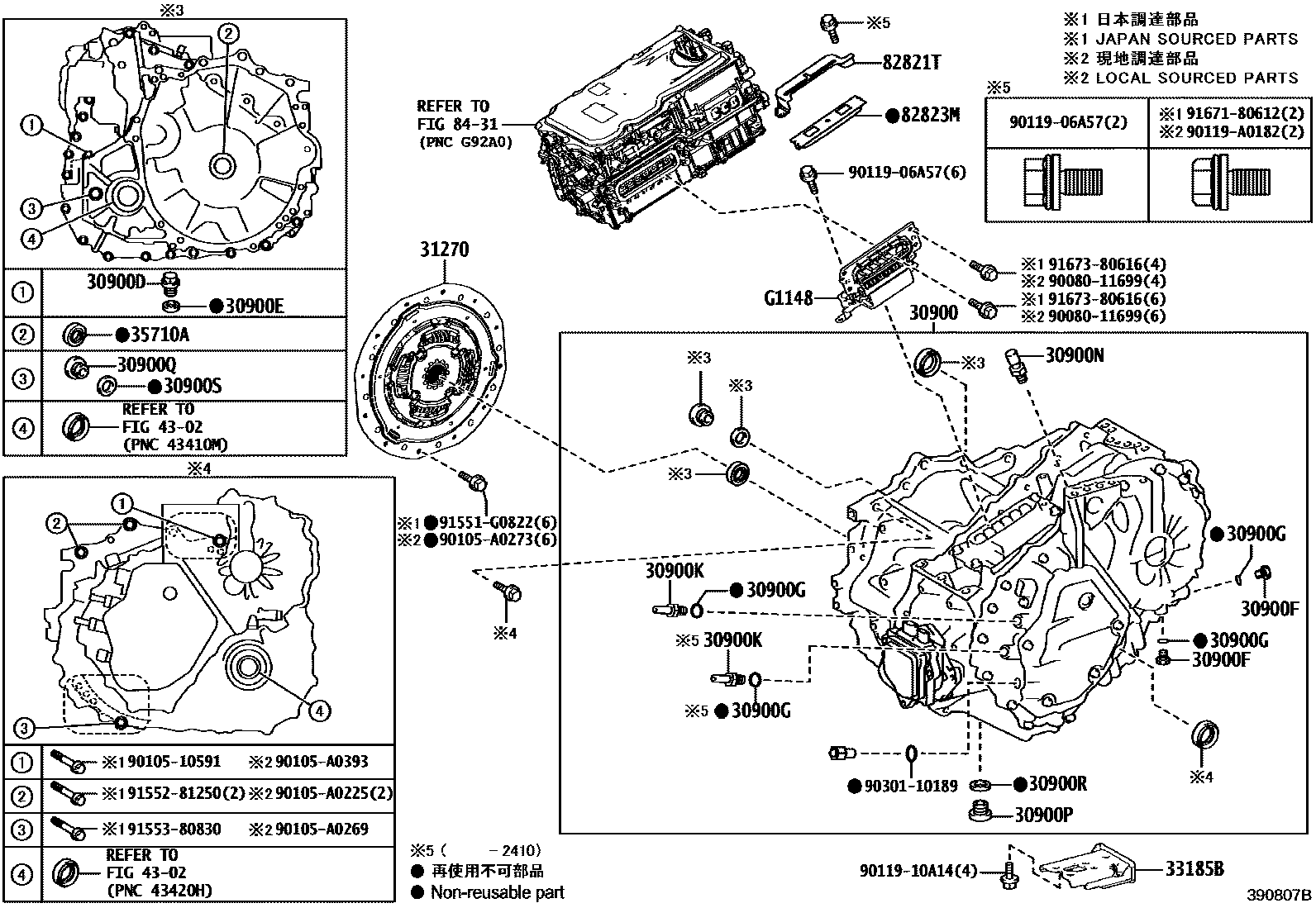

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1HYBRID VEHICLE TRANSAXLE ASSY0002 1W/MOTOR & INVERTER TRANSAXLE 0003 1W/MOTOR & INVERTER TRASAXLE A0004 1 0005 1RR TRACTION W/TRANSAXLE MOTOR0006 1RR W/MOTOR&INVERTER TRANSAXLE

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-0E020iAALH15202210-202411

main30900-0E040iAALH15202411

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAALH15202210

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAALH15202210

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-13001×2iAALH15202210

30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)

main90301-10189×4iAALH15202210-202411

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010×2iAALH15202210-202411

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03223iAALH15202210-202411

30900PPLUG, DRAIN(HEV)

main90341-18016iAALH15202210

30900QPLUG, FILLER(HEV)

main35150-45010iTALH17202210

main90341-18016iAALH15202210

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAALH15202210

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iAALH15202210

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-48040iAALH15202210

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-0E010iAALH15202210

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-29003iAALH15202210

4302

82821TCOVER, CONNECTOR

main82821-47240iAALH15202210

82823MCAP, TERMINAL

main82823-47040iAALH15202210

8431

G1148CABLE, MOTOR

mainG114848110iAALH15202210

9008011699

main90080-11699

9010510591

main90105-10591

90105A0225

main90105-A0225

90105A0269

main90105-A0269

90105A0273

main90105-A0273

90105A0393

main90105-A0393

9011906A57

main90119-06A57

9011910A14

main90119-10A14

90119A0182

main90119-A0182

9030110189

main90301-10189

91551G0822

main91551-G0822

9155281250

main91552-81250

9155380830

main91553-80830

9167180612

main91671-80612

9167380616

main91673-80616

34 parts on this diagram · 6 diagrams in section
