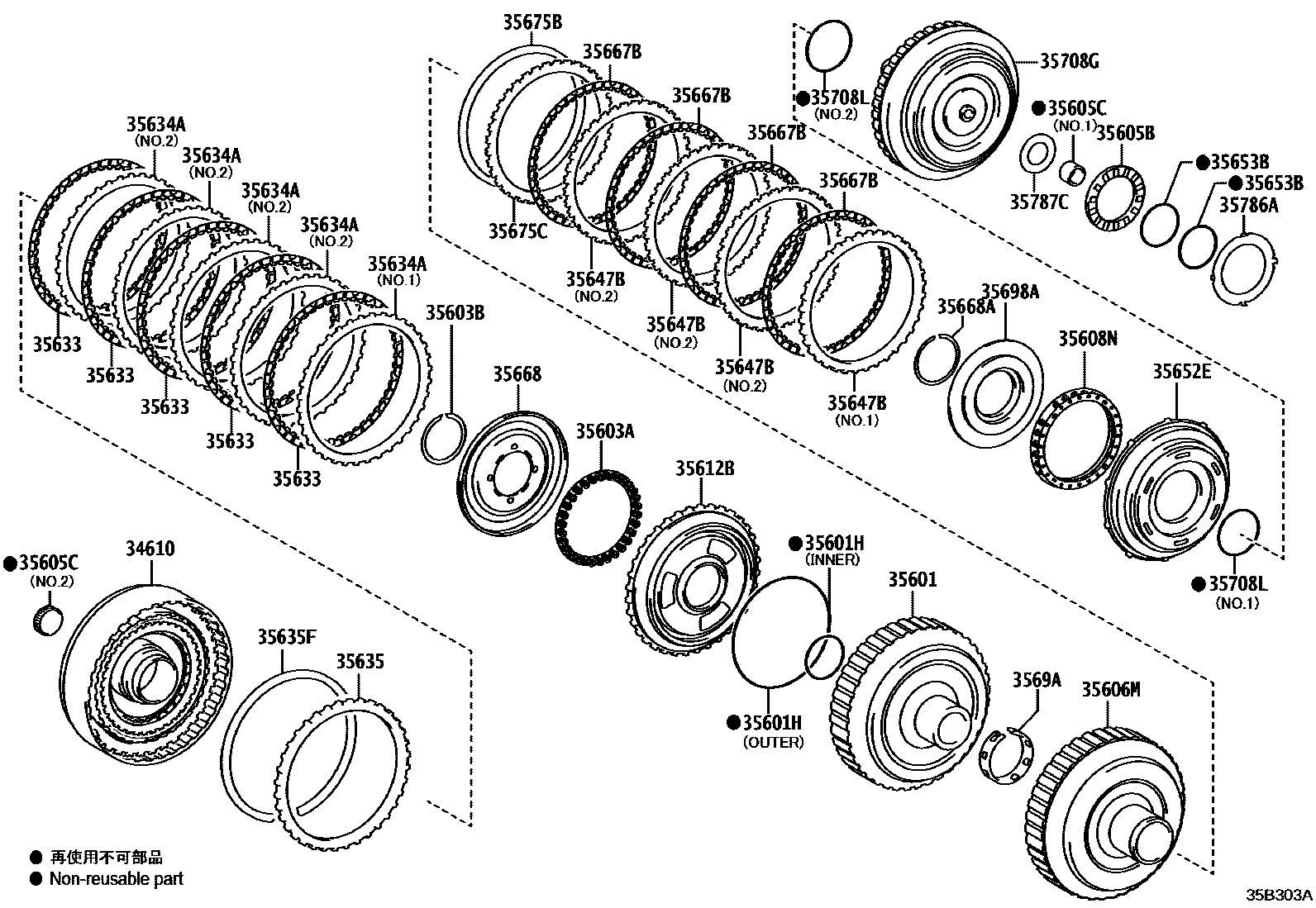

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34610CLUTCH ASSY, C-3 & C-4
35601DRUM SUB-ASSY, CLUTCH
(L)
(J)
35603BRING, SHAFT SNAP (FOR FORWARD CLUTCH PISTON)
(J)
(L)
35605BBEARING, THRUST NEEDLE ROLLER
35606MHUB SUB-ASSY, SUN GEAR INPUT
35608NSPRING SUB-ASSY, CLUTCH RETURN W/RETAINER
35612BPISTON, FORWARD CLUTCH
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8,NO.2
T=1.4,NO.1
35635FLANGE, FORWARD CLUTCH
T=4.3,MARK 0
T=4.4,MARK 1
T=4.5,MARK 2
T=4.6,MARK 3
T=4.7,MARK 4
T=4.8,MARK 5
T=4.9,MARK 6
T=5.0,MARK 7
T=5.1,MARK 8
35635FRING SNAP (FOR FOWARD CLUTCH FLANGE)
(J)
(L)
35652EPISTON, C-2 CLUTCH
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
35667BDISK, CLUTCH, NO.2
35668BALANCER, CLUTCH, NO.1
35668ARING, SNAP(FOR CLUTCH BALANCER)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=3.6,MARK 0
T=3.7,MARK 1
T=3.8,MARK 2
T=3.9,MARK 3
T=4.0,MARK 4
T=4.1,MARK 5
T=4.2,MARK 6
35698ABALANCER, C-2 CLUTCH
3569ARING, CLUTCH DRUM TOLERANCE
35708GSHAFT SUB-ASSY, INTERMEDIATE
35708LRING, O (FOR INTERMEDIATE SHAFT)
NO.1
NO.2
35786ARACE, THRUST BEARING, NO.1
35787CRACE, THRUST BEARING, NO.2
28 parts on this diagram · 1 diagram in section
