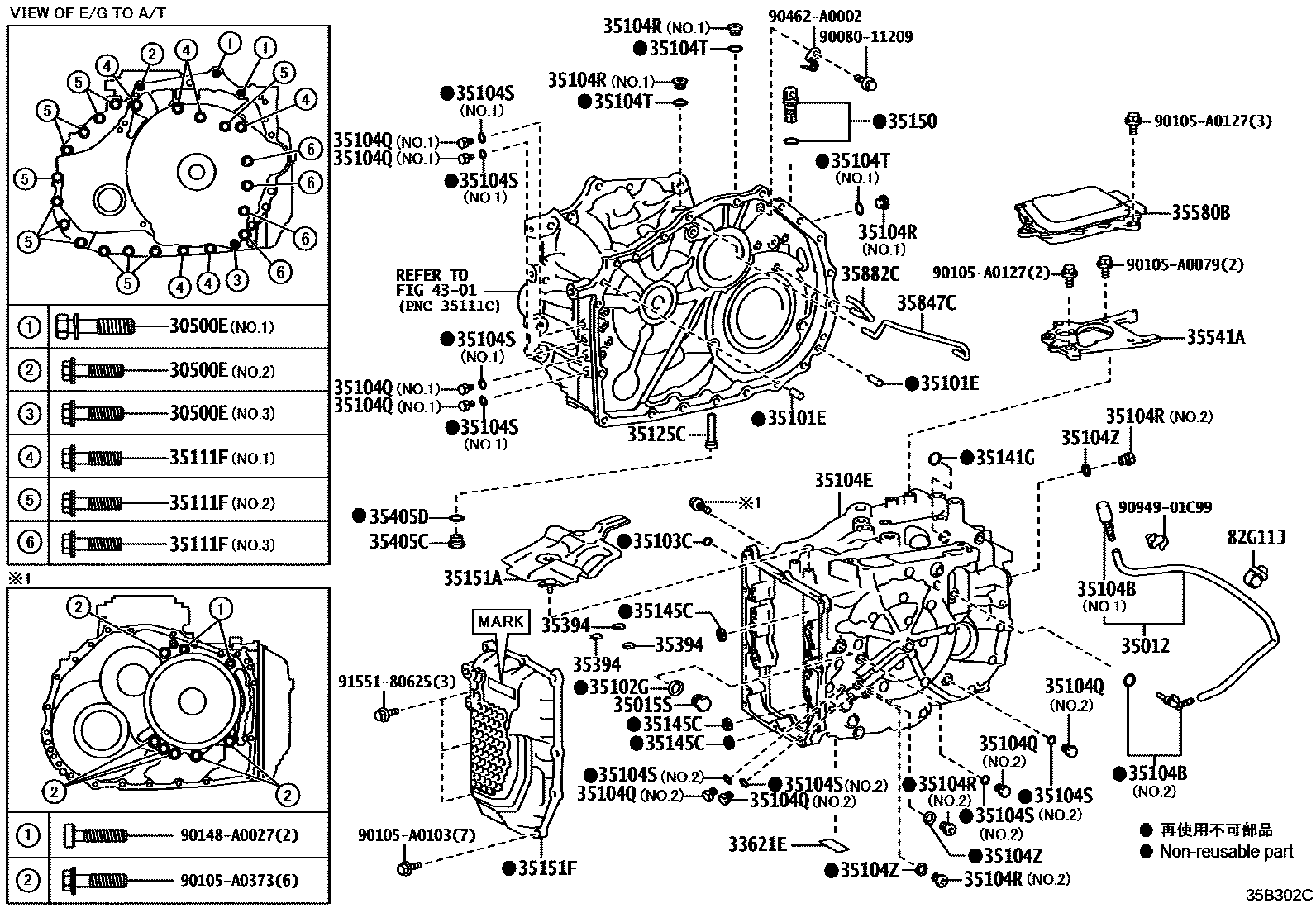

TRANSMISSION CASE & OIL PAN (ATM)

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-A0225iTALA1#202210

*12-1.25PX50-30,NO.1

main90105-A0269iTALA1#202210

*8-1.25PX35-22,NO.3

main90105-A0393iTALA1#202210

*10-1.25PX45-36,NO.2

33621ELABEL, TRANSAXLE OIL NOTICE

main33621-28021iTALA10202210-202405

35012HOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-78010iTALA1#202210

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-A0003iTALA1#202210

35101EPIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)

main90250-10017iTALA1#202210

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-A0003iTALA1#202210

35103CRING, O

main90301-06021iTALA1#202210

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03216iTALA1#202210

NO.1

main90930-A3009iTALA1#202210

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-0E010iTALA1#202210

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-A0001iTALA1#202210

NO.1

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-A0005iTALA1#202210

NO.1

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90080-30105iTALA1#202210

NO.1

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90430-14008iTALA1#202210

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008iTALA1#202210

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-A0367iTALA1#202210

*8-1.25PX40-22,NO.1

main91551-00835iTALA1#202210

*8-1.25PX35-22,NO.2

main91551-00840iTALA1#202210

*8-1.25PX40-22,NO.3

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-06130iTALA1#202210

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-A0016iTALA1#202210

35145CGASKET, TRANSAXLE CASE

main35145-33020iTALA1#202210

35150PLUG ASSY, TRANSMISSION CASE

main35150-45010iTALA1#202210

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-78010iTALA1#202210

35151FCOVER, TRANSMISSION CASE, SIDE

main35151-06010iTALA1#202210-202310

sub35151-33161

main35151-33161iTALA1#202310

MARK 35151-33161

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-08010iTALA1#202210

35405CPLUG SUB-ASSY, W/HEAD STRAIGHT SCREW

main90341-18023iTALA1#202210

35405DRING, O (FOR STRAIGHT SCREW PLUG)

main90430-A0003iTALA1#202210

35541ABRACKET, SHIFT CONTROL ACTUATOR

main35541-78020iTALA1#202210

35580BACTUATOR ASSY, SHIFT CONTROL

main35580-78012iTALA1#202210-202307

sub35580-78013

main35580-78013iTALA1#202308

35847CTUBE, TRANSMISSION LUBE APPLY

main35847-06010iTALA1#202210

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-06030iTALA1#202210

4301

82G11JCLAMP, WIRING HARNESS

main82711-2D350iTALA1#202210

9008011209

main90080-11209

90105A0079

main90105-A0079

90105A0103

main90105-A0103

90105A0127

main90105-A0127

90105A0373

main90105-A0373

90148A0027

main90148-A0027

90462A0002

main90462-A0002

9094901C99

main90949-01C99

9155180625

main91551-80625

39 parts on this diagram · 1 diagram in section
