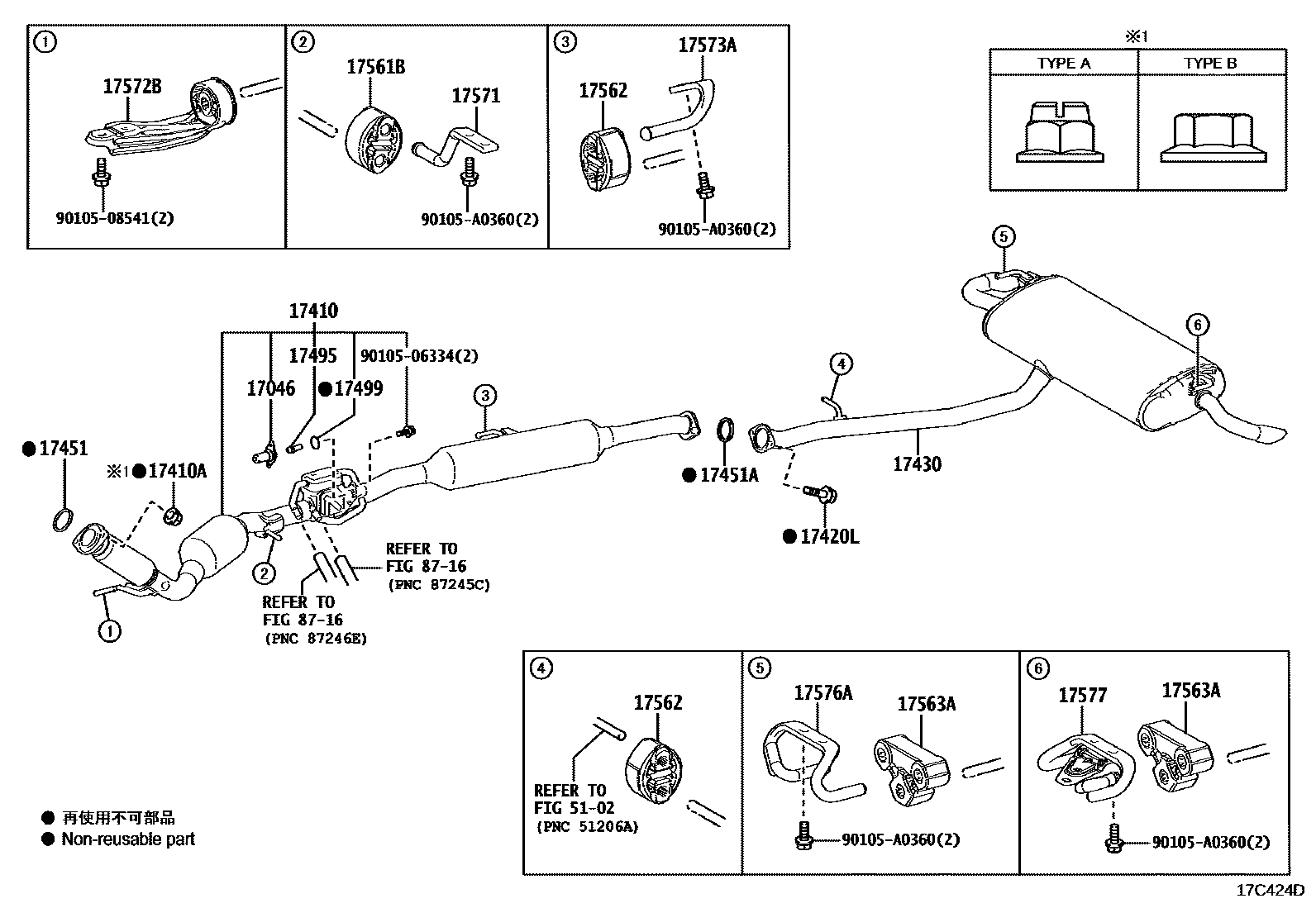

EXHAUST PIPE
17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17420LBOLT, FLANGE(FOR EXHAUST PIPE)
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
(J)
(J)
(L)
(L)
17495ACTUATOR, EXHAUST PIPE GAS CONTROL
17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
5102
8716
9010506334
main90105-06334
9010508541
main90105-08541
90105A0360
main90105-A0360
22 parts on this diagram · 2 diagrams in section
