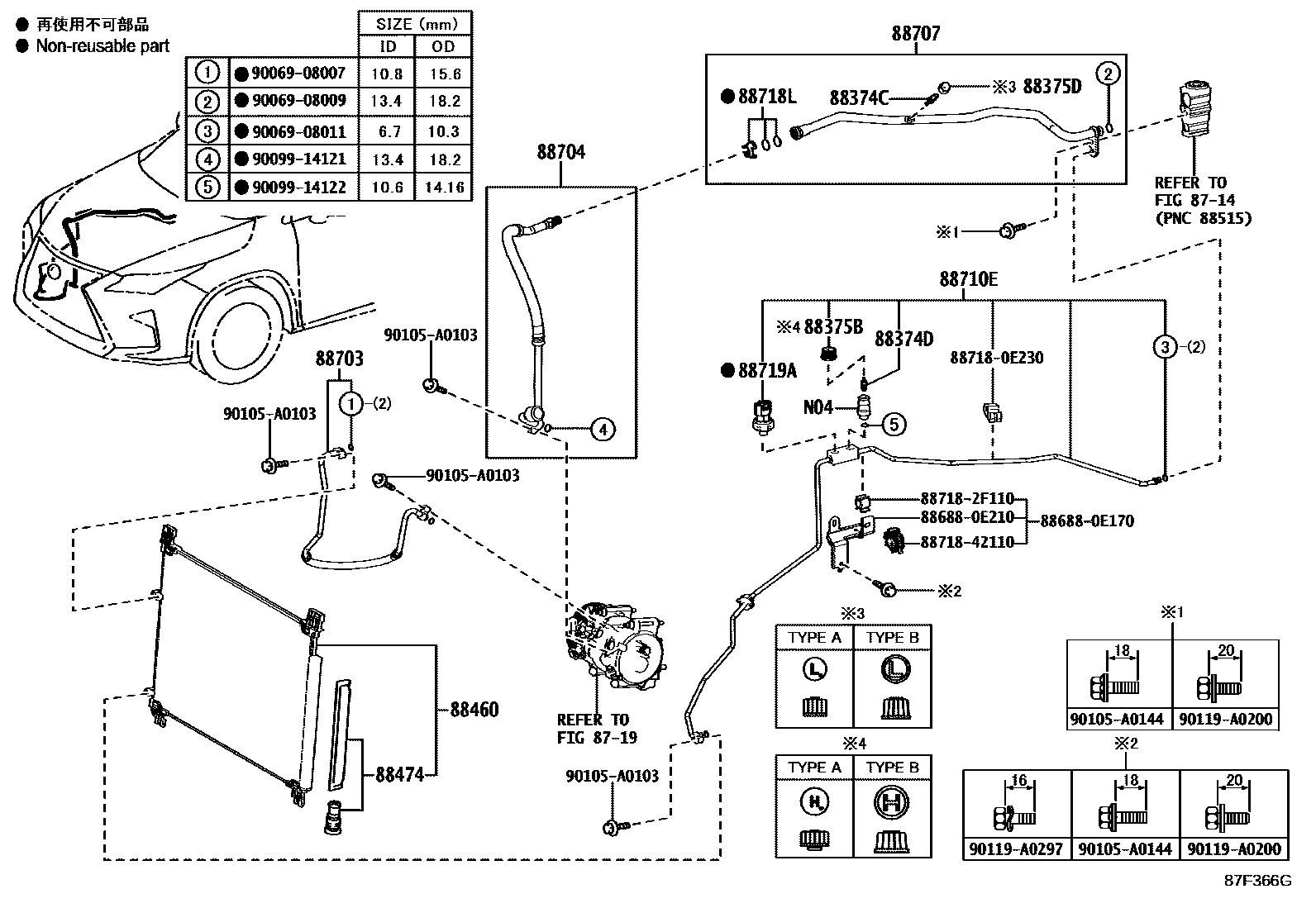

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

8714

8719

88374CVALVE, SERVICE, NO.2

main88374-30010iGGL2#,GYL25201510-201909

88374DVALVE, SERVICE NO.3

main88374-30010iGYL20201510-201909

88375BCAP, SERVICE VALVE, NO.1

main88375-02060iGGL2#,GYL2#201510-201602

sub88375-0E020

main88375-0E020iGGL2#,GYL25201602-201909

TYPE A:REFER ILLUST.

main88375-30280iGGL2#,GYL25201602-201909

TYPE B:REFER ILLUST.

main88375-30320iGGL2#,GYL25201909

88375DCAP, SERVICE VALVE, NO.2

main88375-02070iGGL2#201510-201909

sub88375-0E030

main88375-0E030iGYL20201510-201909

TYPE A:REFER ILLUST.

main88375-30290iGGL2#201510-201909

TYPE B:REFER ILLUST.

main88375-30310iGGL2#,GYL25201909

88460CONDENSER ASSY, COOLER

main88460-0E110iGGL2#201510-201909

main88460-0E130iGGL2#201909

main88460-48220iGYL25201510-201909

88474DRYER, COOLER

main88474-12010iGGL2#201510-201909

main88474-47020iGYL25201510-201909

88703HOSE SUB-ASSY, DISCHARGE

main88703-0E150iGGL2#201510-201909

main88703-0E160iGYL20201510-201909

main88703-0E190iGYL25201909

88704HOSE SUB-ASSY, SUCTION

main88704-0E260iGGL2#201510-201909

main88704-0E270iGYL25201510-201909

88707PIPE SUB-ASSY, SUCTION

main88707-0E030iGGL2#201510-201612

main88707-0E041iGYL20201510-201909

main88710-0E620iGGL2#201802-201909

main88710-0E680iGGL2#201909

main88710-0E690iGYL25201909

main88710-48671iGGL2#201612-201801

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0E280iGGL2#201510-201612

main88710-0E290iGYL25201510-201909

main88710-0E410iGGL2#201612-201909

main88710-0E660iGGL2#201909

main88710-0E670iGYL25201909

88718LCLAMP, PIPING

main88718-52260iGGL2#201510-201612

main88718-52280iGYL20201510-201909

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGYL20201510-201909

886880E170BRACKET, COOLER DIAPHRAGM

main88688-0E170

886880E210BRACKET, COOLER DIAPHRAGM

main88688-0E210

887180E230PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0E230

887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2F110

8871842110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-42110

9006908007

main90069-08007

9006908009

main90069-08009

9006908011

main90069-08011

9009914121

main90099-14121

9009914122

main90099-14122

90105A0103

main90105-A0103

90105A0144

main90105-A0144

90119A0200

main90119-A0200

90119A0297

main90119-A0297

28 parts on this diagram · 5 diagrams in section
