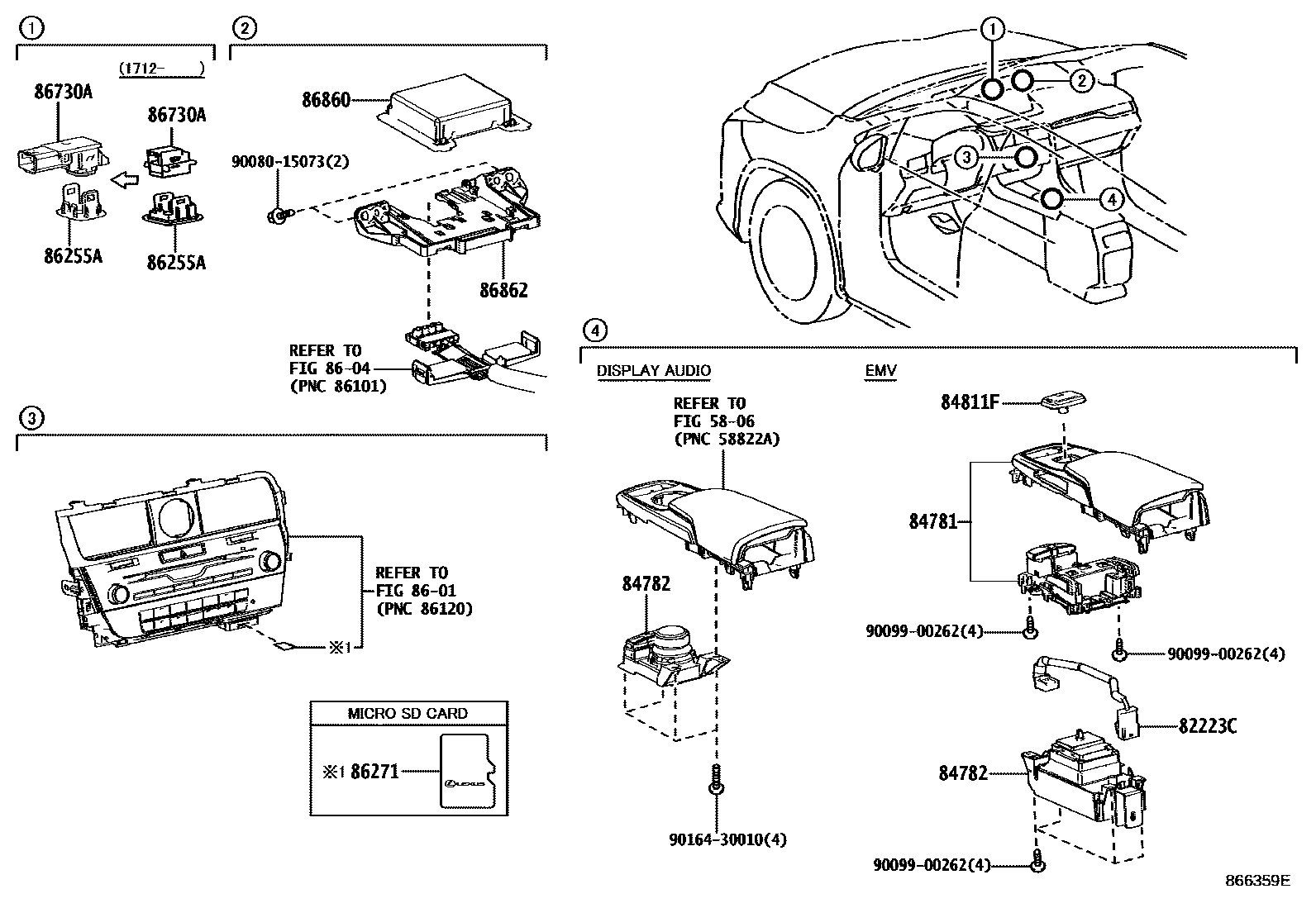

NAVIGATION & FRONT MONITOR DISPLAY

5806

82223CWIRE, SWITCH

main82223-48040i201510-201608

84781SWITCH, REMOTE OPERATION

main84781-48041-A2i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),IVORY,TRIM0#

main84781-48041-B0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),MOON STONE,TRIM10,12,13,14

main84781-48041-C0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK/LT.GRAY,TRIM2#

main84781-48041-C2i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),BLACK/MD.GRAY,TRIM15

main84781-48041-D0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),DK.ROSE,TRIM3#

main84781-48041-E0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),NOBLE BROWN,TRIM4#

main84781-48041-F0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY),TOPAZ BROWN,TRIM5#

main84781-48050-A2supersedes 84781-48040-A2i201510-201803

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),IVORY,TRIM0#

main84781-48050-B0supersedes 84781-48040-B0i201510-201608

EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MOON STONE,TRIM1#

main84781-48050-C0supersedes 84781-48040-C0i201712-201803

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/LT.GRAY,TRIM2#

main84781-48050-C2supersedes 84781-48040-C2i201712-201803

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/MD.GRAY,TRIM15

main84781-48050-D0supersedes 84781-48040-D0i201712-201803

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),DK.ROSE,TRIM3#

main84781-48050-E0supersedes 84781-48040-E0i201510-201803

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM4#

main84781-48050-F0supersedes 84781-48040-F0i201712-201803

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),TOPAZ BROWN,TRIM5#

main84781-48051-A2i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),IVORY,TRIM0#

main84781-48051-B0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MOON STONE,TRIM10,12,13,14

main84781-48051-C0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/LT.GRAY,TRIM2#

main84781-48051-C2i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),BLACK/MD.GRAY,TRIM15

main84781-48051-D0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),DK.ROSE,TRIM3#

main84781-48051-E0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),NOBLE BROWN,TRIM4#

main84781-48051-F0i201803-201909

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),TOPAZ BROWN,TRIM5#

84782BOARD, REMOTE OPERATION

main84782-48060i201510-201607

AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(8INCH DISPLAY)

main84782-48061supersedes 84782-48040i201607-201712

84811FKNOB, SWITCH

main84811-48040i201510-201608

8601

8604

86255ACASE, MICROPHONE, NO.1

main86255-48010-A0i201510-201712

ECRU,TRIM0#,5#

main86255-48010-B0i201510-201712

MOON STONE,TRIM10,12,13,20,23,24,4#

main86255-48010-C0i201510-201712

BLACK,TRIM14,15,25,26,3#

main86255-78010-A0i201712-201909

ECRU,TRIM0#,5#

main86255-78010-B0i201909

MOON STONE,TRIM1#,20,23,24,29,4#

main86255-78010-C1i201712-201909

BLACK,TRIM14,15,25,26,3#

86271DISC, DISC PLAYER

main86271-0E030i201510-201608

CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD

main86271-0E050i201608-201708

CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD

main86271-0E051i201709-201712

CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD

main86271-0E060i201712-201809

CANADA SPEC&AUDIO-*EMV & DVD&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICROSD CARD

main86271-0E061i201809-201909

CANADA SPEC&AIR CONDITIONER-EXHAUST GAS AUTOMATIC INTAKE SYSTEM&AUDIO-*EMV & DVD&SPEAKER-12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(12.3INCH DISPLAY),MICRO SD CARD

86730AMICROPHONE ASSY, TELEPHONE

main86730-0E040i201510-201712

main86730-45030i202106

main86730-48100i201909-202105

86860ANTENNA ASSY, NAVIGATION

main86860-0E070supersedes 86880-06010i201510-201608

86862BRACKET, NAVIGATION ANTENNA

main86862-42010i201909

main86862-58020i201510-201608

9008015073

main90080-15073

9009900262

main90099-00262

9016430010

main90164-30010

15 parts on this diagram · 4 diagrams in section
