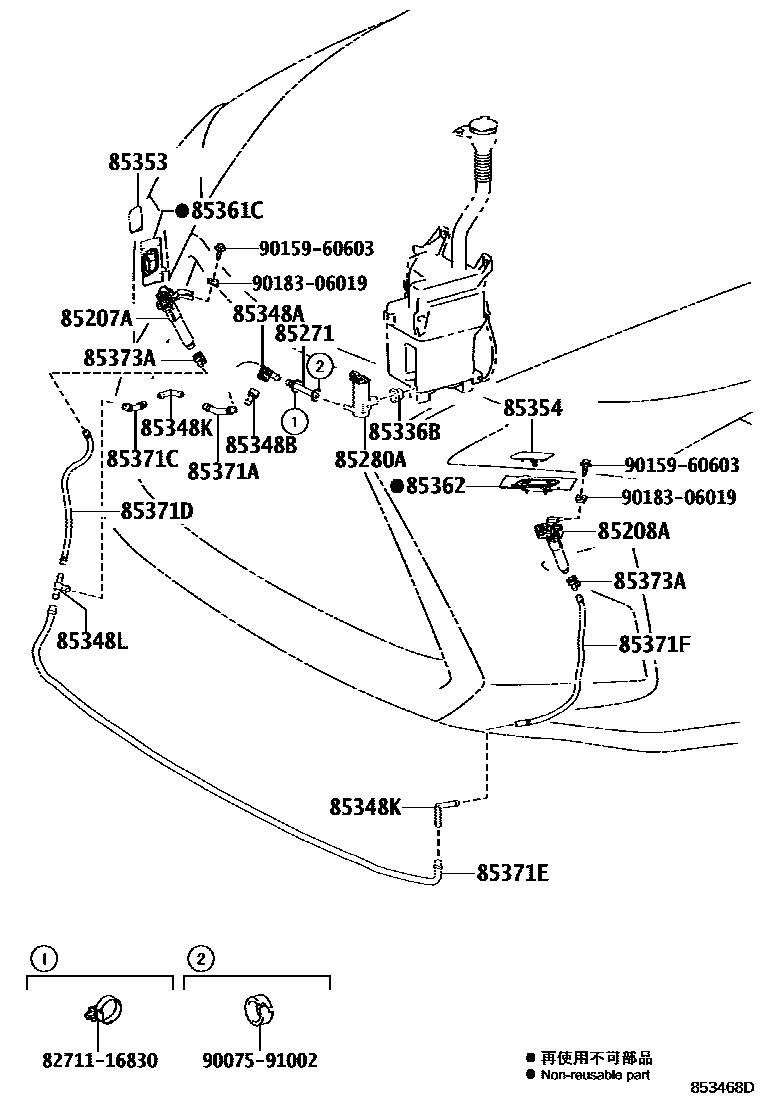

HEADLAMP CLEANER

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

85271HOSE, HEADLAMP CLEANER, NO.1

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

85336BPACKING, HEADLAMP CLEANER WASHER

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2

85353COVER, HEADLAMP WASHER, RH

85354COVER, HEADLAMP WASHER, LH

85361CBRACKET, WASHER

85362BRACKET, WASHER, NO.2

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

85371CHOSE, HEADLAMP CLEANER, NO.1

85371DHOSE, HEADLAMP CLEANER, NO.2

85371EHOSE, HEADLAMP CLEANER, NO.3

85371FHOSE, HEADLAMP CLEANER, NO.4

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

9007591002

9015960603

9018306019

23 parts on this diagram · 2 diagrams in section
