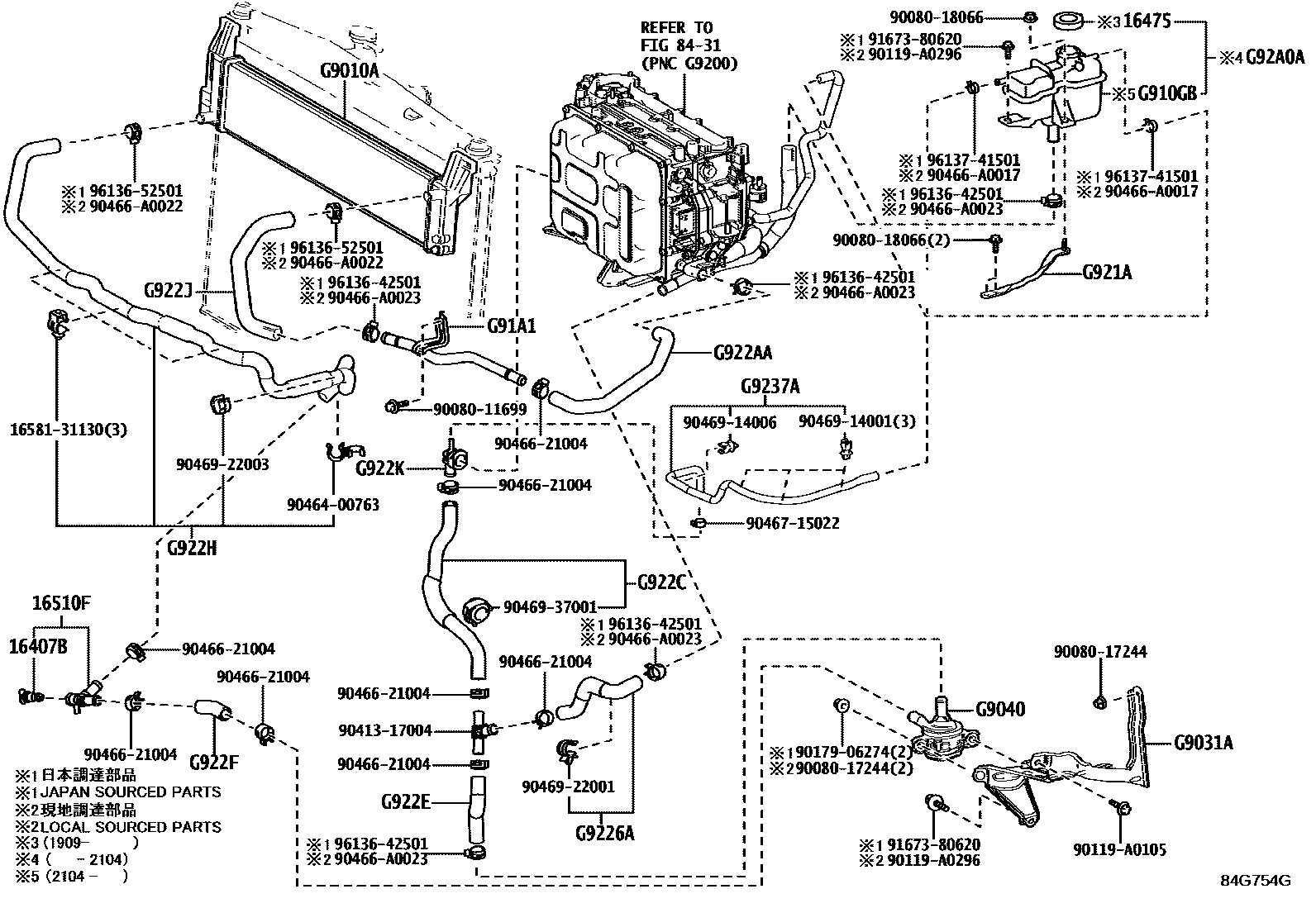

INVERTER COOLING

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i2GRFXS..GYL20201510-201909

16475CAP, RESERVE TANK

main16475-28140i2GRFXS..GYL25201909

16510FCOCK ASSY, DRAIN

main90910-09134i2GRFXS..GYL20201510-201909

8431

G9010ARADIATOR ASSY

mainG901048071iGYL20201510-201909

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG90310E010iGYL20201510-201909

mainG90310E020iGYL25201909

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052020iGYL20201510-201909

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G0E010iGYL25202104

G91A1PIPE, INVERTER COOLING, INLET

mainG91A10E010iGYL20201510-201909

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H20E010iGYL20201510-201909

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260E010iGYL20201510-201909

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A0E020iGYL20201510-201909

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C0E010iGYL20201510-201909

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E0E010iGYL20201510-201909

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F0E020iGYL20201510-201909

G922HHOSE, HYBRID RADIATOR INLET

mainG922H0E020iGYL20201510-201909

G922JHOSE, HYBRID RADIATOR OUTLET

mainG922J0E020iGYL20201510-201909

G922KCONNECTOR, HYBRID WATER HOSE

mainG922K48012iGYL20201510-201909

G9237AHOSE, INVERTER DRAIN

mainG92370E020iGYL20201510-201909

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H00E010iGYL20201510-202104

1658131130CLAMP, HOSE(FOR WATER HOSE)

main16581-31130

9008011699

main90080-11699

9008017244

main90080-17244

9008018066

main90080-18066

90119A0105

main90119-A0105

90119A0296

main90119-A0296

9017906274

main90179-06274

9041317004

main90413-17004

9046400763

main90464-00763

9046621004

main90466-21004

90466A0017

main90466-A0017

90466A0022

main90466-A0022

90466A0023

main90466-A0023

9046715022

main90467-15022

9046914001

main90469-14001

9046914006

main90469-14006

9046922001

main90469-22001

9046922003

main90469-22003

9046937001

main90469-37001

9167380620

main91673-80620

9613642501

main96136-42501

9613652501

main96136-52501

9613741501

main96137-41501

43 parts on this diagram · 1 diagram in section
