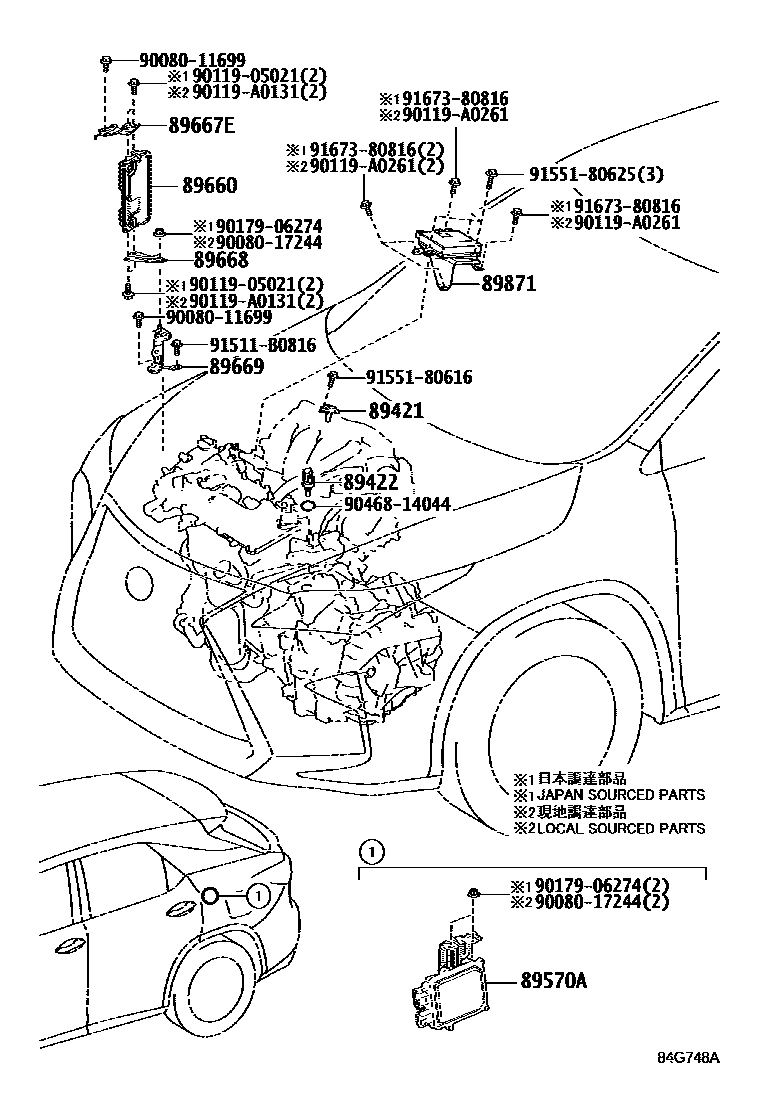

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iGYL25201510-201909

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-47010iGYL20201510-201909

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-48020iGYL20201510-201909

89660COMPUTER ASSY, ENGINE CONTROL

main89661-0E750iGYL2#201510-201603

sub89661-0E751

main89661-0E751iGYL2#201604-201608

sub89661-0E752

main89661-0EA30iGYL25201608-201702

sub89661-0EA31

main89661-0EB10iGYL25201702-201803

sub89661-0EB11

main89661-0EB11iGYL25201804-201809

sub89661-0EB12

main89661-0EF60iGYL25201909-202008

main89661-0EF70iGYL25201809-201810

sub89661-0EF71

main89661-0EF71iGYL25201811-201909

main89661-0EJ90iGYL25202008

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-0E100iGGL2#201510-201909

main89667-0E110iGYL2#201510-201605

main89667-48180iGYL20201606-201909

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0E100iGGL2#201510-201909

main89668-0E110iGYL2#201510-201605

main89668-48200iGYL20201606-201909

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-0E030iGYL2#201510-201605

main89669-48030iGYL20201606-201909

89871DRIVER, INJECTOR

main89870-48020iGYL20201510-201909

9008011699

main90080-11699

9008017244

main90080-17244

9011905021

main90119-05021

90119A0131

main90119-A0131

90119A0261

main90119-A0261

9017906274

main90179-06274

9046814044

main90468-14044

91511B0816

main91511-B0816

9155180616

main91551-80616

9155180625

main91551-80625

9167380816

main91673-80816

19 parts on this diagram · 2 diagrams in section
