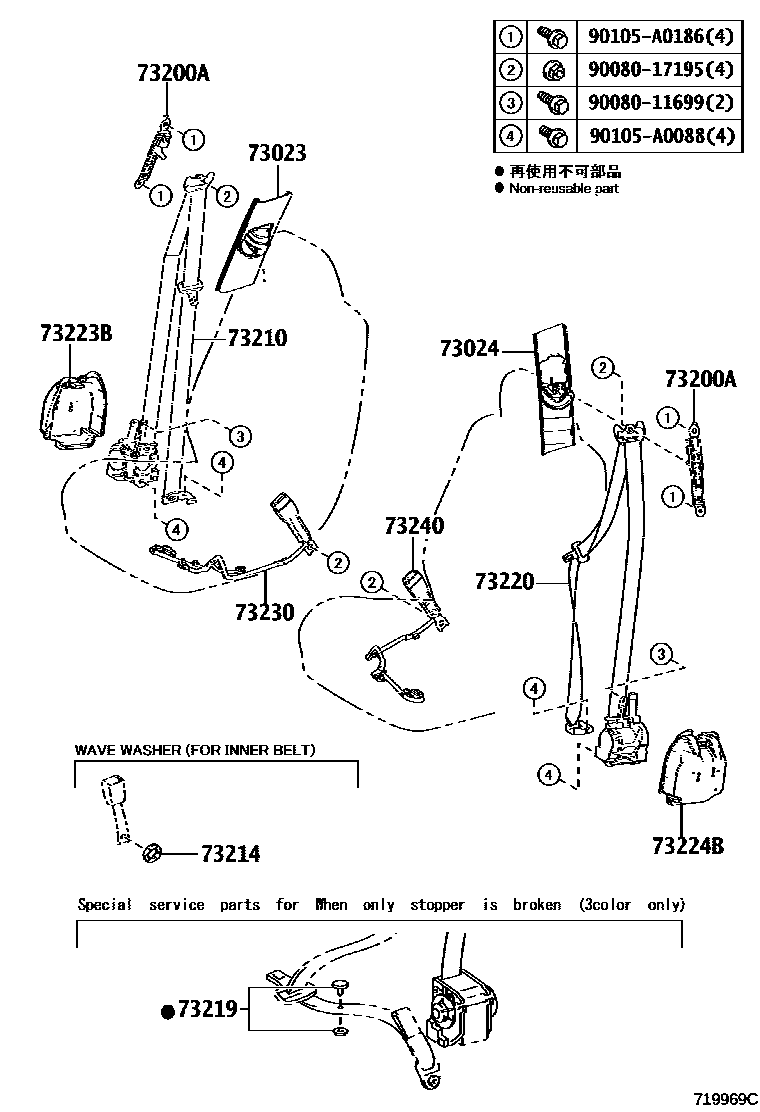

SEAT BELT & CHILD RESTRAINT SEAT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
ECRU,TRIM0#,5#
MOON STONE,TRIM1#,20,23,24,29,4#
MOON STONE,TRIM10,12,13,20,23,24,4#
MOON STONE,TRIM1#,2#,4#
BLACK,TRIM25,26,27,28,3#,7#
BLACK,TRIM14,15,25,26,3#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
ECRU,TRIM0#,5#
MOON STONE,TRIM10,12,13,20,23,24,4#
MOON STONE,TRIM1#,2#,4#
MOON STONE,TRIM1#,20,23,24,29,4#
BLACK,TRIM14,15,25,26,3#
BLACK,TRIM25,26,27,28,3#,7#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM00,02
IVORY,TRIM0#
MOON STONE,TRIM1#,20,23,24,29,4#
MOON STONE,TRIM1#,2#,4#
MOON STONE,TRIM10,12,13,20,23,24,4#
BLACK,TRIM14,15,25,26,3#
BLACK,TRIM25,26,27,28,3#,7#
BLACK,ERCU,TRIM0#,5#
BLACK,ERCU,TRIM00,02,04,5#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,5#
NOBLE BROWN,TRIM5#
73214PLATE, FRONT SEAT BELT ANCHOR
(L)
(J)
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM00,02
IVORY,TRIM0#
MOON STONE,TRIM10,12,13,20,23,24,4#
MOON STONE,TRIM1#,2#,4#
MOON STONE,TRIM1#,20,23,24,29,4#
BLACK,TRIM25,26,27,28,3#,7#
BLACK,TRIM14,15,25,26,3#
BLACK,ECRU,TRIM0#,5#
BLACK,ECRU,TRIM00,02,04,5#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM5#
NOBLE BROWN,TRIM00,02,5#
NOBLE BROWN,TRIM00,02,04
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM00,01,02,03,04
IVORY,TRIM0#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM00,02,5#
NOBLE BROWN,TRIM5#
73240BELT ASSY, FRONT SEAT INNER, LH
IVORY,TRIM0#
IVORY,TRIM00,01,02,03,04
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
BLACK,TRIM1#,2#,3#,4#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM5#
NOBLE BROWN,TRIM00,02,5#
NOBLE BROWN,TRIM0#,5#
9008011699
9008017195
main90080-17195
90105A0088
main90105-A0088
90105A0186
main90105-A0186
15 parts on this diagram · 2 diagrams in section
