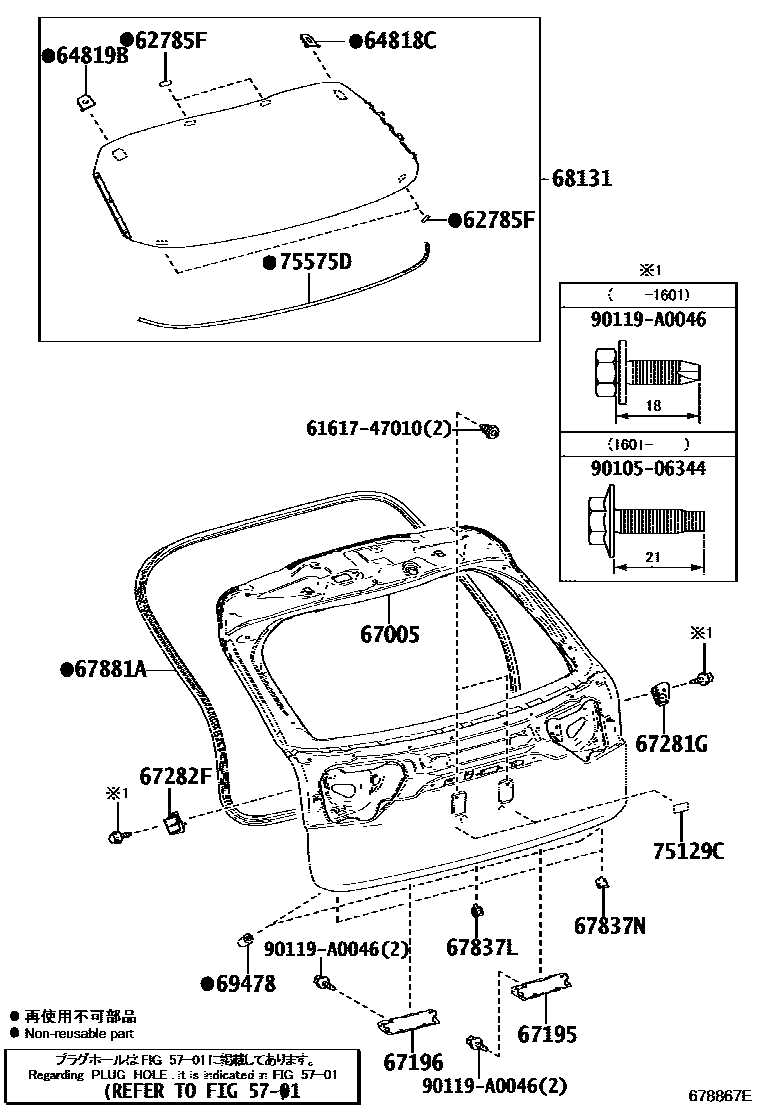

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62785FSPACER, BACK DOOR GLASS

main62785-60030iGGL2#,GYL25201510-201909

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-0E070iGYL20201510-201909

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0E030iGGL2#,GYL25201510-201909

67005PANEL SUB-ASSY, BACK DOOR

main67005-0E380iGGL2#,GYL25201608-201909

AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)

main67005-0E390iGGL2#,GYL25201608-201912

sub67005-0E391

main67005-0E391iGGL2#,GYL25202001

main67005-0E410iGGL2#,GYL2#201510-201608

AUTO & EASY CLOSER DOOR-WITH(TOUCHLESS POWER BACK DOOR)

sub67005-0E380

main67005-0E420iGGL2#,GYL2#201510-201608

sub67005-0E391

67195REINFORCEMENT, BACK DOOR STAY, LOWER RH

main67195-0E010iGYL20201510-201909

67196REINFORCEMENT, BACK DOOR STAY, LOWER LH

main67195-0E010iGYL20201510-201909

67281GSTOPPER, BACK DOOR, LOWER RH

main67281-0E040iGGL2#,GYL2#201510-201512

sub67281-0E041

main67281-0E041iGGL2#,GYL25201601-201909

67282FSTOPPER, BACK DOOR, LWR LH

main67282-0E030iGGL2#,GYL2#201510-201512

sub67282-0E031

main67282-0E031iGYL20201601-201909

67837LSEAL, DOOR DUST PROOF

main67837-0E010iGGL2#,GYL25201510-201909

67837NSEAL, BACK DOOR DUST PROOF

main67837-0E100iGGL2#,GYL25201510-201909

67881AWEATHERSTRIP, BACK DOOR

main67881-0E070iGYL20201510-201708

sub67881-0E071

main67881-0E071iGGL2#,GYL25201709-201909

68131GLASS, BACK DOOR

main68105-0E110iGGL2#,GYL25201510-201909

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-48020iGGL2#,GYL2#201510-201907

75129CCUSHION, REAR LICENCE PLATE

main75129-AC010iGYL20201510-201909

75575DMOULDING, BACK WINDOW, LOWER

main75575-0E030iGYL20201510-201909

6161747010REINFORCEMENT, BACK FRAME UPPER CORNER, RH

main61617-47010

9010506344

main90105-06344

90119A0046

main90119-A0046

19 parts on this diagram · 2 diagrams in section
