FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0E140iGGL2#,GYL25201608-201909

main67001-0E150iGGL2#,GYL2#201510-201608

sub67001-0E140

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0E140iGGL2#,GYL25201608-201909

main67002-0E150iGGL2#,GYL2#201510-201608

sub67002-0E140

67111PANEL, FRONT DOOR, OUTER RH

main67111-0E070iGGL2#,GYL25201510-201909

67112PANEL, FRONT DOOR, OUTER LH

main67112-0E070iGGL2#,GYL25201510-201909

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0E040iGYL20201510-201909

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0E040iGYL20201510-201909

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0E080iGYL20201510-201909

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0E070iGYL20201510-201909

67663GARNISH, DOOR FRAME, UPPER RH

main67663-0E060iGYL20201510-201909

67664GARNISH, DOOR FRAME, UPPER LH

main67664-0E050iGYL20201510-201909

67715PAD, DOOR TRIM, NO.1

main67715-0E090iGGL2#,GYL25201807-201909

main67715-76020iGGL2#,GYL25201801-201806

67811PAD, FRONT DOOR SILENCER

main67811-30100iGYL20201510-201801

main67811-AA040iGGL2#,GYL25201801-201909

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0E080iGYL20201510-201909

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-A0005iGYL20201510-201909

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0E080iGYL20201510-201909

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-0E010iGGL2#,GYL25201510-201909

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-0E010iGYL20201510-201909

67837ASEAL, FRONT DOOR VENT, RH

main67837-0E050iGYL20201510-201909

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0E060iGYL20201510-201909

67838ASEAL, FRONT DOOR VENT, LH

main67838-0E010iGYL20201510-201909

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-0E040iGYL20201510-201909

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-0E030iGYL20201510-201909

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0E080iGYL20201510-201909

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0E080iGYL20201510-201909

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67867-48030iGYL20201510-201909

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iGYL20201510-201909

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iGYL20201510-201909

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iGYL20201510-201909

67923ECUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0E090iGYL20201510-201909

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0E100iGYL20201510-202011

sub68101-0E101

main68101-0E101iGGL2#,GYL25202012-202107

sub68101-0E102

main68101-0E102iGGL2#,GYL25202108

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0E100iGYL20201510-202011

sub68102-0E101

main68102-0E101iGGL2#,GYL25202012-202107

sub68102-0E102

main68102-0E102iGGL2#,GYL25202108

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0E010iGYL20201510-201909

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0E010iGYL20201510-201909

68141CRUN, FRONT DOOR GLASS, RH

main68141-0E070iGYL20201510-201909

68151DRUN, FRONT DOOR GLASS, LH

main68151-0E070iGYL20201510-201909

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-0E020iGYL20201510-201909

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-0E020iGYL20201510-201909

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0E080iGYL20201510-201909

main68610-0E110iGGL2#,GYL25201909

68620CHECK ASSY, FRONT DOOR, LH

main68620-0E080iGYL20201510-201909

main68620-0E110iGGL2#,GYL25201909

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0E050iGGL2#,GYL25201510-201909

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0E050iGYL20201510-201909

75965BSTRIPE, FRONT DOOR NO.4 RH

main75965-0E010iGYL20201510-201909

75966BSTRIPE, FRONT DOOR NO.4 LH

main75966-0E010iGGL2#,GYL25201510-201909

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-0E020iGYL20201510-201909

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-0E020iGGL2#,GYL25201510-201909

87912APROTECTOR, OUTER MIRROR

main87912-0E030iGYL20201510-201909

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0E020iGGL2#,GYL25201510-201909

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0E020iGGL2#,GYL25201510-201909

678690E010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-0E010

6871450040

main68714-50040

9008015074

main90080-15074

9008410049

main90084-10049

90119A0247

main90119-A0247

90151A0003

main90151-A0003

90178A0023

main90178-A0023

9018904200

main90189-04200

9018906227

main90189-06227

9054109069

main90541-09069

9095001506

main90950-01506

9095001620

main90950-01620

9095001958

main90950-01958

9095001A02

main90950-01A02

9356054025

main93560-54025

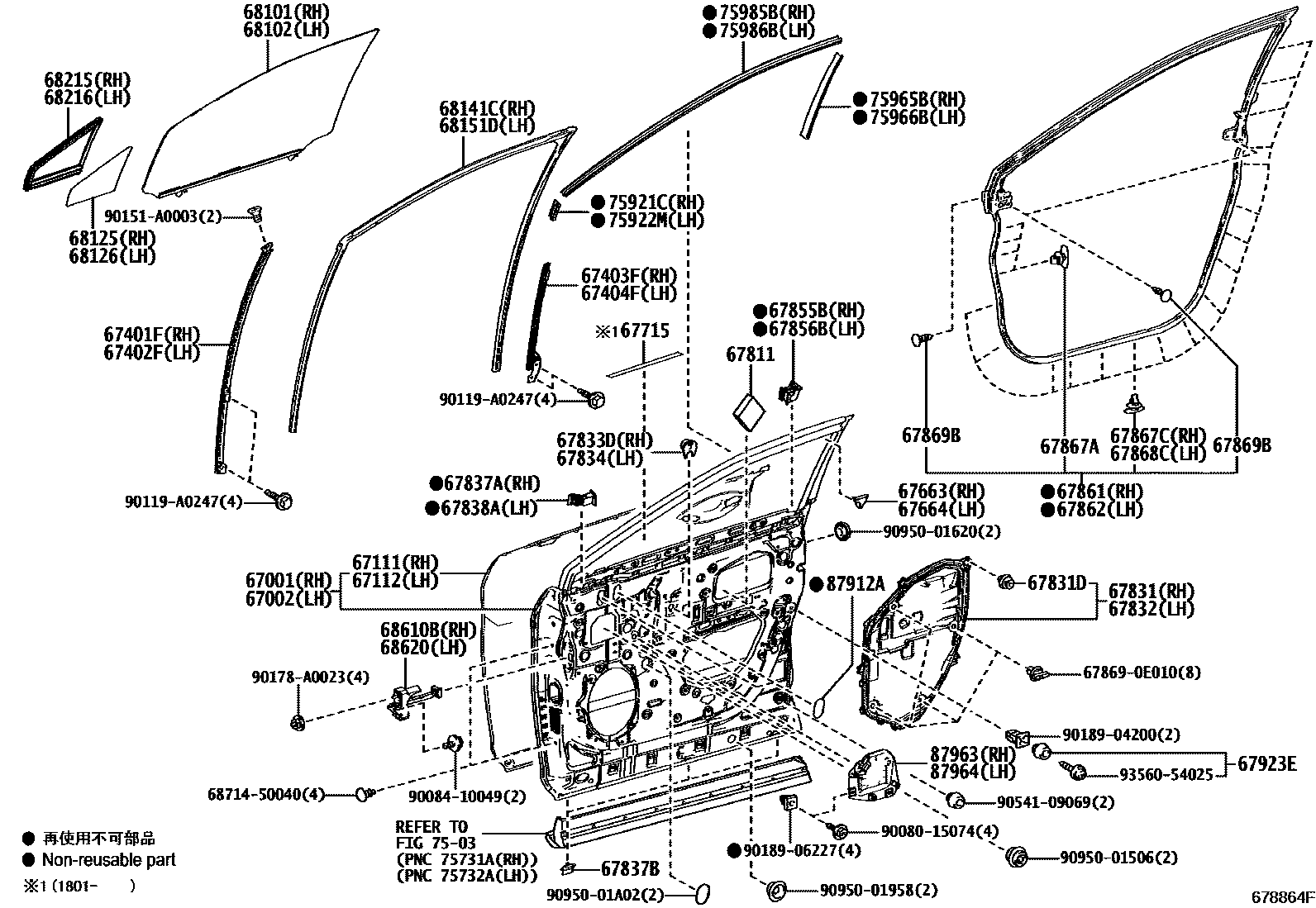

64 parts on this diagram · 2 diagrams in section
