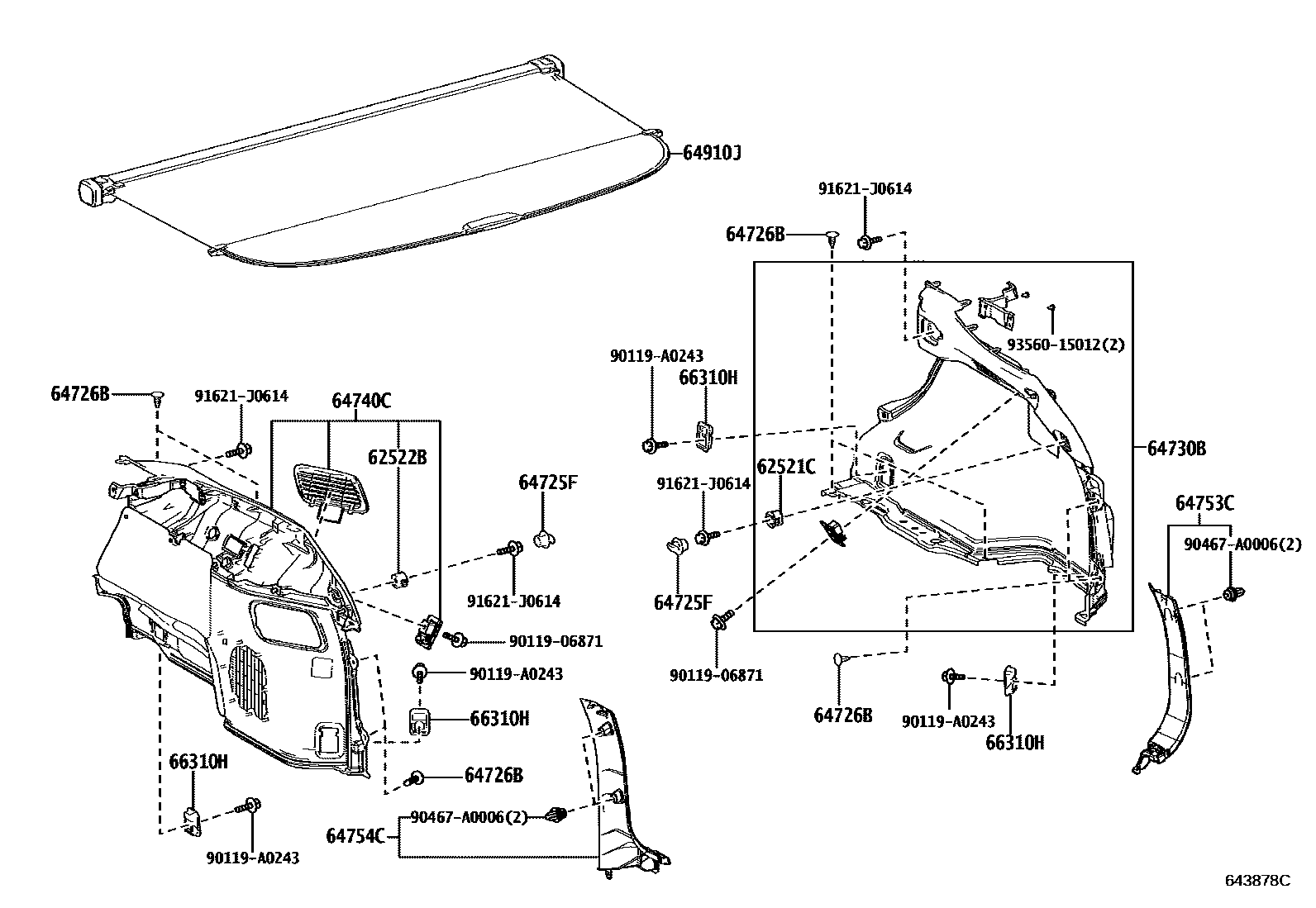

DECK BOARD & DECK TRIM COVER
62521CCOVER, QUARTER TRIM RH
62522BCOVER, QUARTER TRIM LH
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM00,02,04
NOBLE BROWN,TRIM0#,5#
64753CPLATE, REAR FLOOR FINISH SIDE, RH
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
64754CPLATE, REAR FLOOR FINISH SIDE, LH
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
64910JCOVER ASSY, TONNEAU
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,02,04,1#,2#,3#,4#,5#,7#
BLACK,TRIM0#,1#,2#,3#,4#,5#,7#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM00,02,04
66310HHOOK ASSY, ROPE
9011906871
main90119-06871
90119A0243
main90119-A0243
90467A0006
main90467-A0006
91621J0614
main91621-J0614
9356015012
main93560-15012
15 parts on this diagram · 3 diagrams in section
