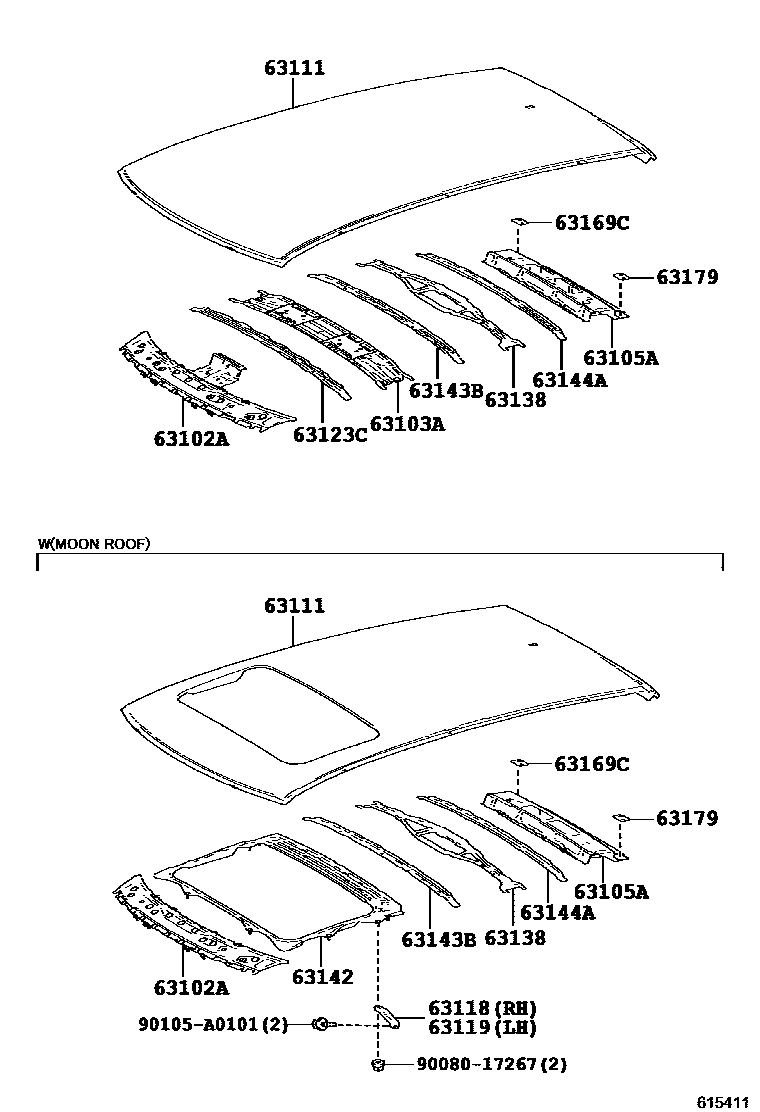

ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
PREMIUM PACKAGE&MOON ROOF-WITH
"VERSION L"*(L)&MOON ROOF-WITH
"F SPORT"*(F)&MOON ROOF-WITH
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
"F SPORT"*(F)&MOON ROOF-WITH
PREMIUM PACKAGE&MOON ROOF-WITH
"VERSION L"*(L)&MOON ROOF-WITH
63118SUPPORT, ROOF PANEL, RH
"VERSION L"*(L)&MOON ROOF-WITH
PREMIUM PACKAGE&MOON ROOF-WITH
"F SPORT"*(F)&MOON ROOF-WITH
63119SUPPORT, ROOF PANEL, LH
PREMIUM PACKAGE&MOON ROOF-WITH
"VERSION L"*(L)&MOON ROOF-WITH
"F SPORT"*(F)&MOON ROOF-WITH
63123CREINFORCEMENT, ROOF PANEL
63138BRACKET, DOME LAMP, NO.2
63142REINFORCEMENT, ROOF PANEL, NO.2
PREMIUM PACKAGE&MOON ROOF-WITH
"VERSION L"*(L)&MOON ROOF-WITH
"F SPORT"*(F)&MOON ROOF-WITH
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63169CRETAINER, ROOF REINFORCEMENT, NO.2
63179PLATE, ROOF PANEL REINFORCEMENT, LH
9008017267
main90080-17267
90105A0101
main90105-A0101
15 parts on this diagram · 5 diagrams in section
