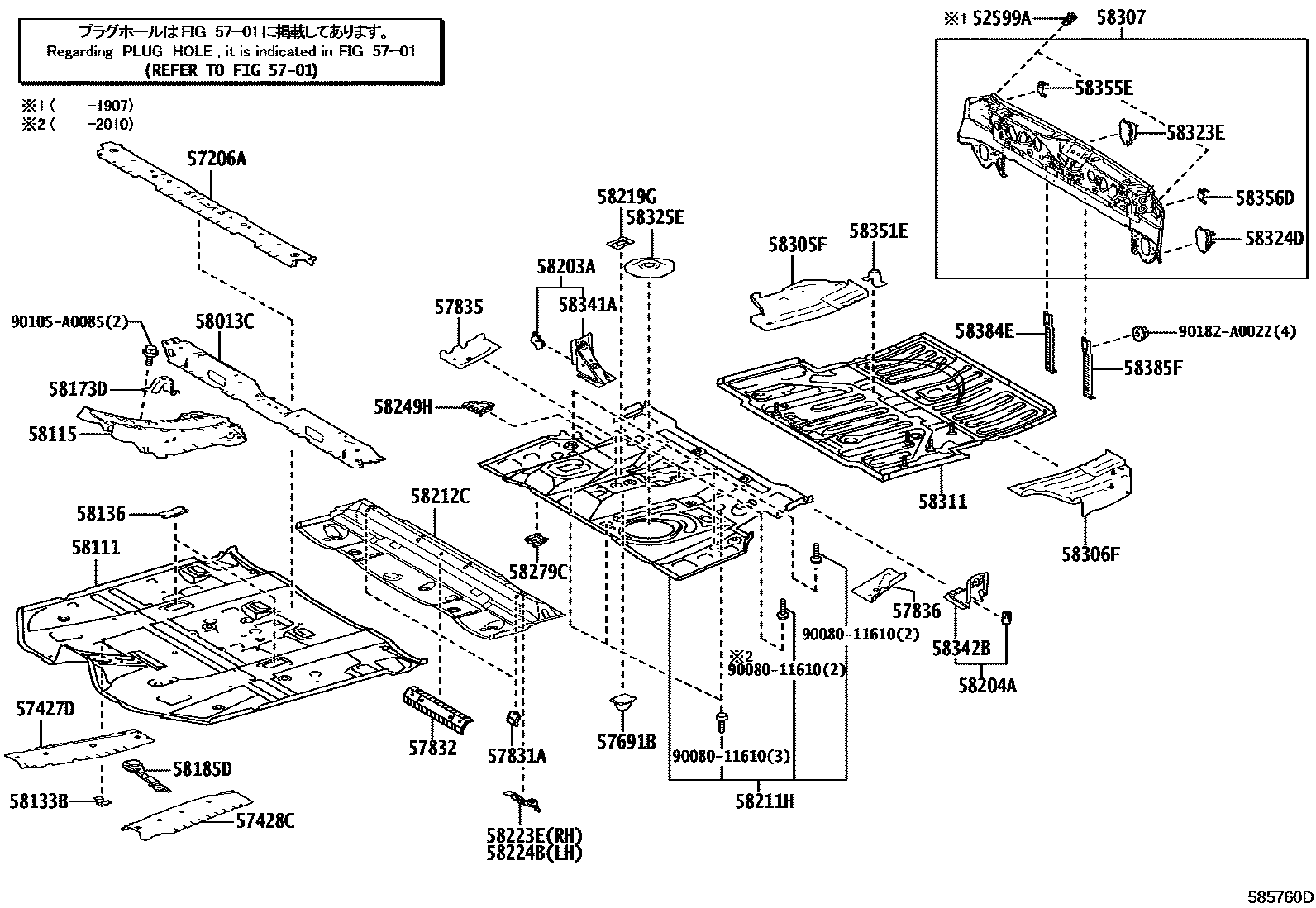

FLOOR PAN & LOWER BACK PANEL
52599ASTOPPER, REAR BUMPER, UPPER
5701
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57691BBRACKET, FUEL TANK MOUNTING, FRONT CENTER
57831AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
58013CSUPPORT SUB-ASSY, SHIFT & SELECT LEVER
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58173DBRACKET, COMPUTER MOUNTING, NO.4
58185DPLATE, ACCELERATOR PEDAL MOUNTING
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58212CPAN, CENTER FLOOR, FRONT
58219GPATCH, SEAT FLOOR
58223EREINFORCEMENT, FLOOR PANEL SIDE, RH
58224BREINFORCEMENT, FLOOR PANEL SIDE, LH
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58279CPROTECTOR, FUEL TANK, UPPER NO.2
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341ABRACKET, REAR ABSORBER MOUNTING, RH
58342BBRACKET, REAR ABSORBER MOUNTING, LH
58351EBRACKET, SPARE WHEEL CLAMP
58355EBRACKET, REAR BUMPER ARM, RH
58356DBRACKET, REAR BUMPER ARM, LH
58384EGUSSET, LOWER BACK PANEL, NO.1 RH
58385FGUSSET, LOWER BACK PANEL, NO.1 LH
9008011610
main90080-11610
90105A0085
main90105-A0085
90182A0022
main90182-A0022
43 parts on this diagram · 4 diagrams in section
