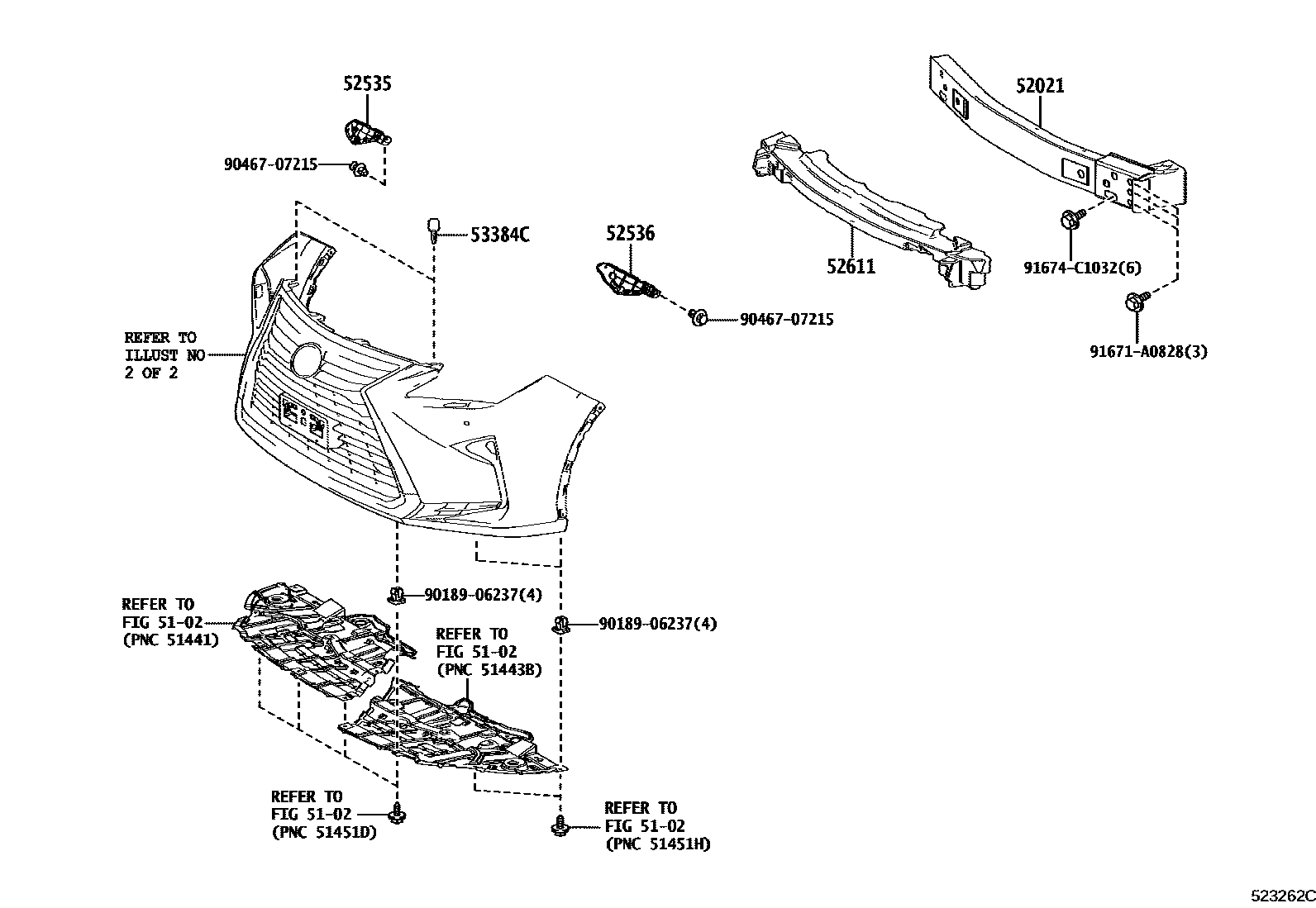

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT 0005 1F SPORT 0007 1 0008 1 0009 1F SPORT 0010 1F SPORT

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0E070iGGL2#,GYL25201608-201909

main52021-0E080iGGL2#,GYL2#201510-201608

sub52021-0E070

main52021-0E120iGGL2#,GYL25201909

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0E070iGYL20201510-201909

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0E060iGYL20201510-201909

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0E110iGYL20201510-201909

main52611-0E151iGGL2#,GYL25201909

53384CCUSHION, HOOD, CENTER

main53384-22070iGYL20201510-201909

9018906237

main90189-06237

9046707215

main90467-07215

91671A0828

main91671-A0828

91674C1032

main91674-C1032

10 parts on this diagram · 8 diagrams in section
