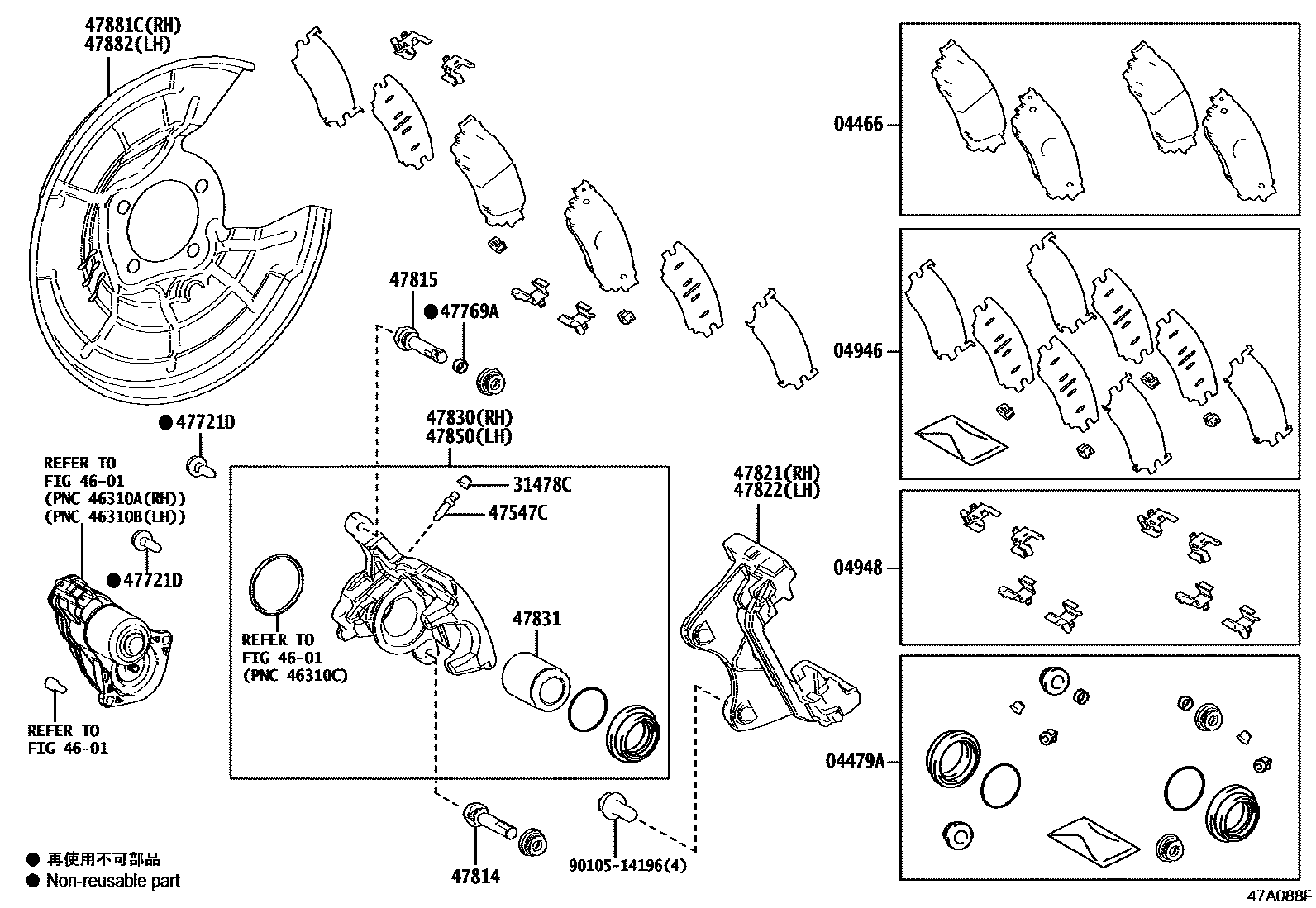

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0E060iGYL20201510-201909

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0E090iGYL20201510-201701

sub04479-0E091

main04479-0E091iGGL2#,GYL25201701-201909

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0E090iGYL20201510-201909

04948FITTING KIT, DISC BRAKE, REAR

main04948-48110iGYL20201510-201909

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iGYL20201510-201909

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGYL20201510-201909

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iGYL20201510-201812

*8-1.00PX23-12.5

sub90016-AA614

main90016-AA614iGGL2#,GYL25201812-201909

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iGYL20201510-201909

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0R050iGGL2#,GYL25201812-201909

main47814-78010iGGL2#,GYL2#201510-201812

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0R050iGGL2#,GYL25201812-201909

main47815-78010iGYL20201510-201812

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0E090iGYL20201510-201909

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0E090iGYL20201510-201909

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0E090iGGL2#,GYL25201510-201909

47831PISTON, REAR DISC BRAKE

main47831-48130iGYL20201510-201909

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0E090iGYL20201510-201909

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-0E010iGYL20201510-201909

47882COVER, DISC BRAKE DUST, REAR LH

main47882-0E010iGYL20201510-201909

9010514196

main90105-14196

19 parts on this diagram · 1 diagram in section
