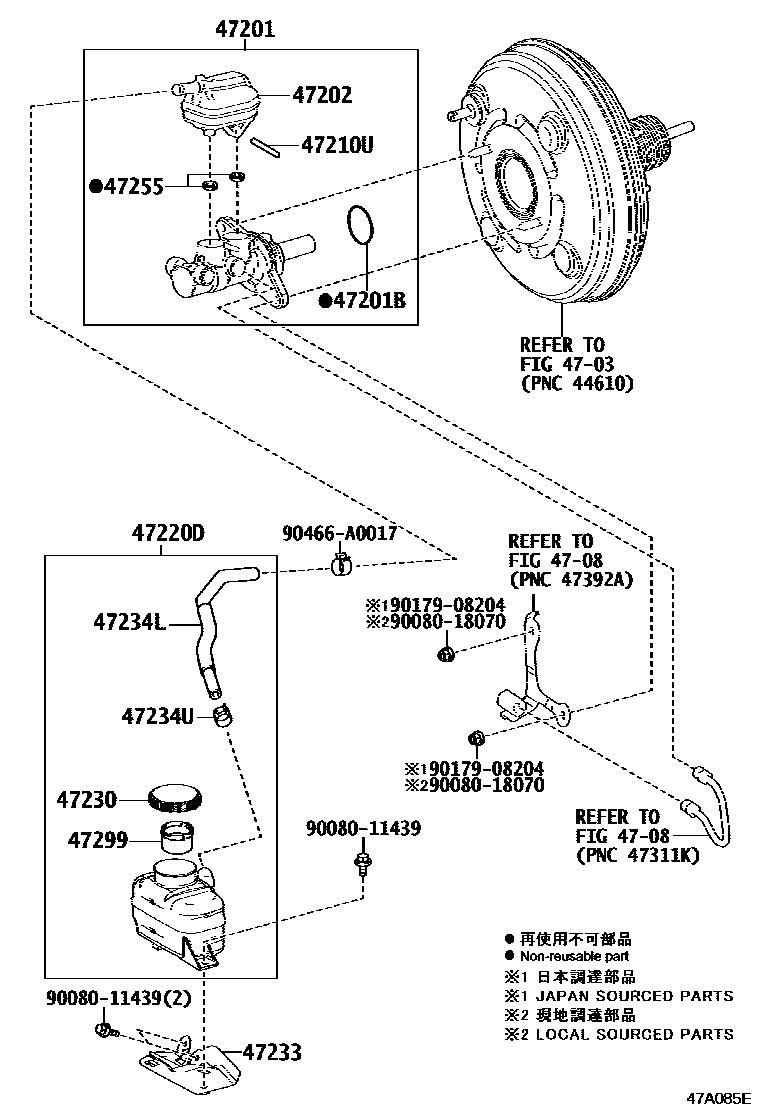

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0E060iGGL2#201709-201909

main47201-48202iGGL2#201510-201709

main47201-48210iGYL25201510-201909

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGGL2#201709-201909

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iGGL2#201510-201909

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iGGL2#201709-201909

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0E101iGGL2#201510-201909

main47220-48270iGYL20201510-201711

sub47220-48271

main47220-48271iGYL25201712-201909

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02310iGGL2#202109-202210

W/O(MARK)

main47230-11010iGYL25201704-201909

main47230-47090iGGL2#202109-202210

W(MARK)

main47230-47090iGGL2#201612-202109

main47230-58010iGGL2#,GYL25201510-201612

sub47230-11010

47233BRACKET, RESERVOIR

main47233-0E080iGGL2#201510-201909

main47233-0E090iGYL2#201510-201602

main47233-48190iGYL20201602-201909

47234LHOSE, RESERVOIR, NO.1

main47234-0E070iGGL2#201510-201909

main47234-48140iGYL25201510-201909

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main90466-A0017iGGL2#201510-201909

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGYL20201510-201909

main90029-48001iGGL2#201709-201909

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGGL2#201510-201909

main47299-30190iGYL25201510-201909

9008011439

main90080-11439

9008018070

main90080-18070

9017908204

main90179-08204

90466A0017

main90466-A0017

17 parts on this diagram · 3 diagrams in section
