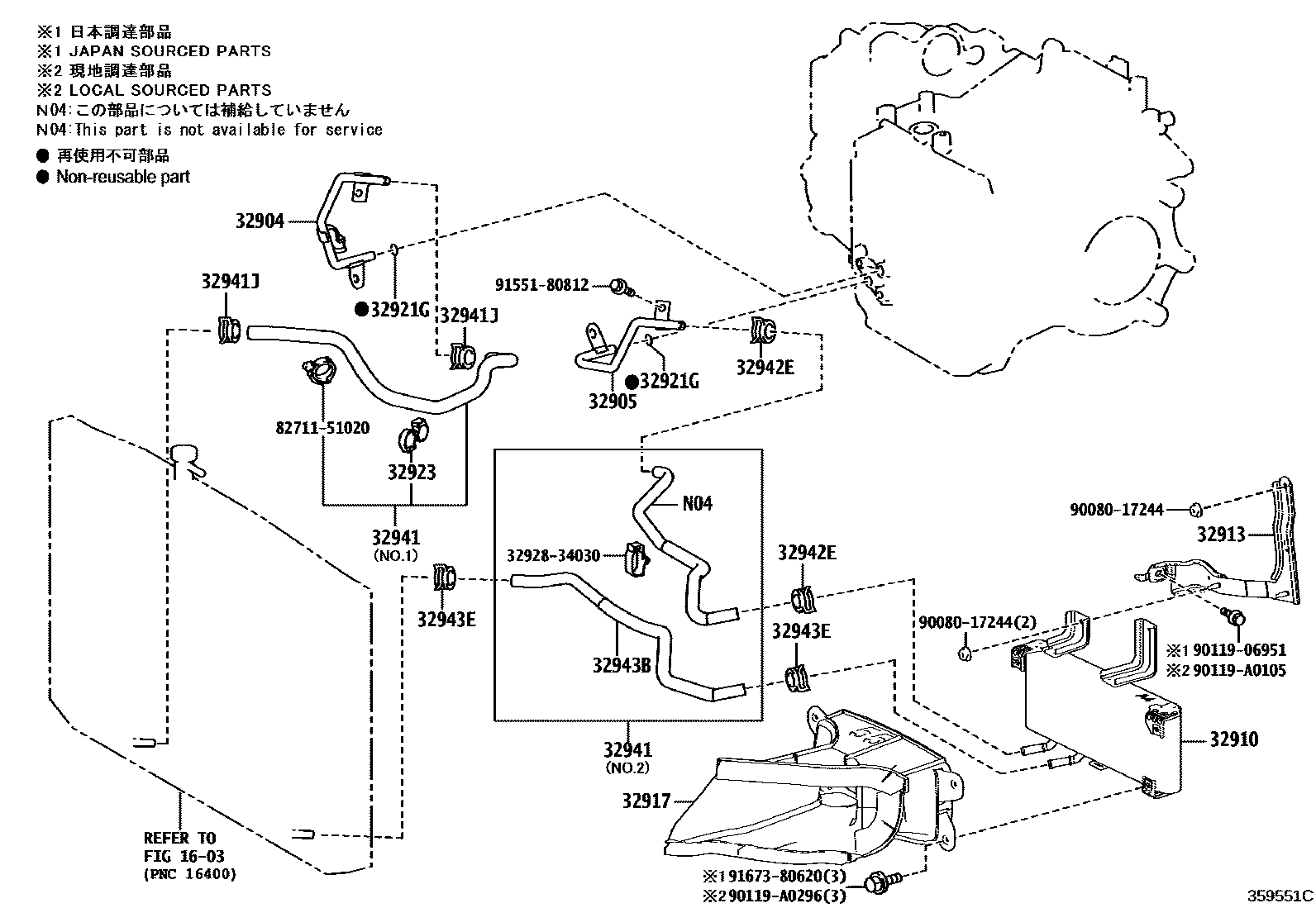

OIL COOLER & TUBE (ATM)

0001 1WATER COOLED & AIR COOLED 0002 1WATER COOLED & AIR COOLED 0003 1WATER COOLED 0004 1WATER COOLED 0005 1WATER COOLED & AIR COOLED 0006 1WATER COOLED & AIR COOLED

1603

32904TUBE SUB-ASSY, OIL COOLER INLET, NO.1

main32904-48200iGGL2#201510-201909

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main32905-48240iGGL2#201510-201909

32910COOLER ASSY, OIL

main32910-0E040

main32910-0E110

32913BRACKET, OIL COOLER

main32913-0E010

main32913-0E070

32917DUCT, TRANSMISSION OIL COOLER AIR

main32917-0E030

main32917-0E090

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11033iGGL2#¥160201510-201909

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-45010iGGL2#¥390201510-201909

main32923-48100iGGL2#¥300201909

TOWING PACKAGE-3500LBS

32941HOSE, OIL COOLER INLET, NO.1

main32930-0E130iGGL2#201510-201909

TOWING PACKAGE-3500LBS,NO.1

main32930-0E190iGGL2#201909

TOWING PACKAGE-3500LBS,NO.1

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-A0014iGGL2#201510-201909

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0E140iGGL2#201510-201909

main32942-0E220iGGL2#201909

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-A0014iGGL2#201510-201909

32943BHOSE, TRANSMISSION OIL COOLER

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

3292834030CLAMP, FLEXIBLE HOSE, NO.1

main32928-34030¥260

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020¥160

9008017244

main90080-17244¥80

9011906951

main90119-06951¥80

90119A0105

main90119-A0105

90119A0296

main90119-A0296

9155180812

main91551-80812¥80

9167380620

main91673-80620¥60

22 parts on this diagram · 6 diagrams in section
