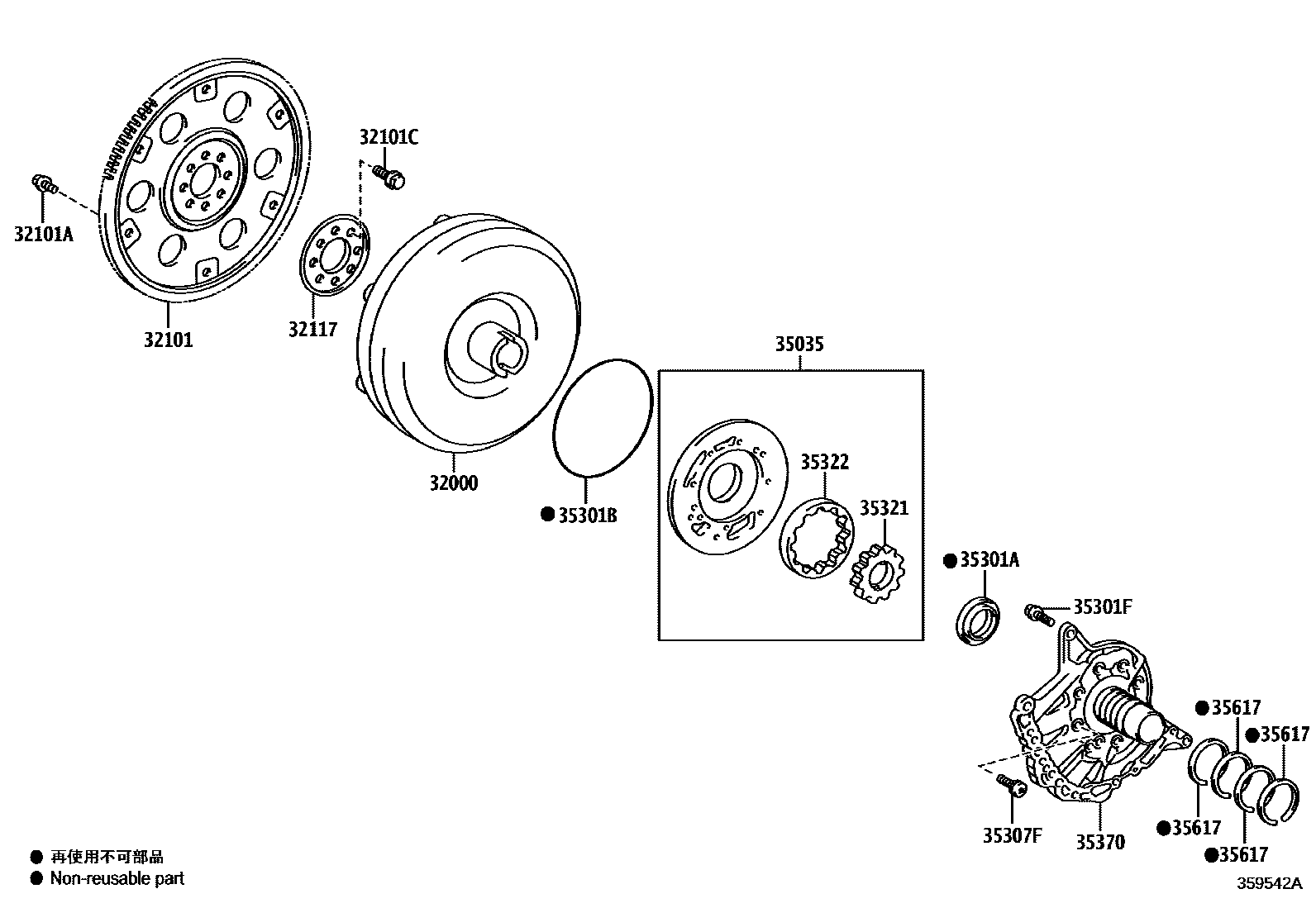

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3
*9-1.25PX12.4-7.3,SILVER WHITE
*9-1.25PX12.4-8.4
*9-1.25PX12.4-8.4,BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
32117SPACER, DRIVE PLATE, REAR
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX25-25
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=10.298,MARK A
T=10.298,MARK B
T=10.298,MARK C
T=10.298,MARK D
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.298,MARK A
T=10.298,MARK B
T=10.298,MARK C
T=10.298,MARK D
35370SHAFT ASSY, STATOR
35617RING, CLUTCH DRUM OIL SEAL
14 parts on this diagram · 1 diagram in section
