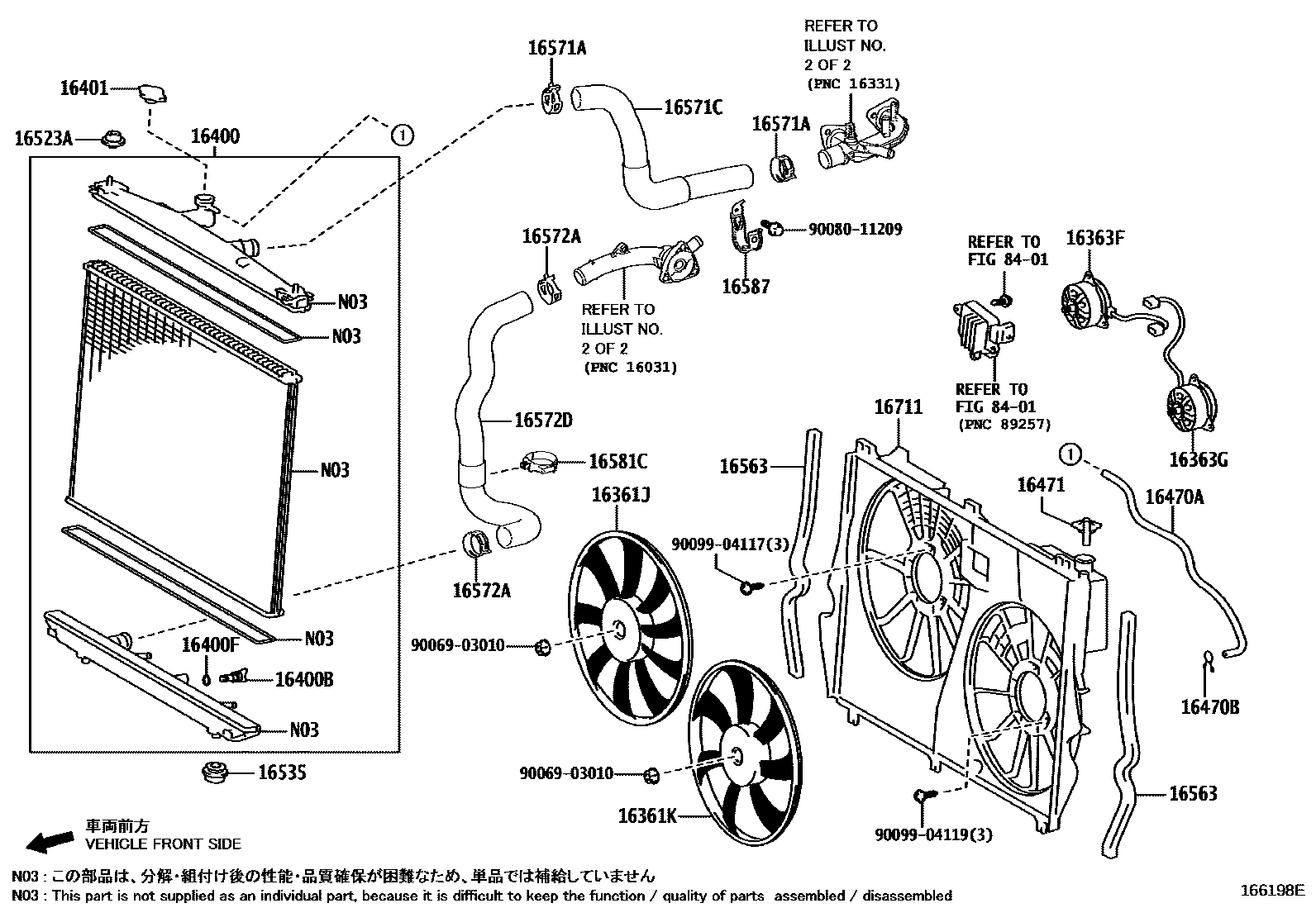

RADIATOR & WATER OUTLET

0001 1 0002 1TOWING PACKAGE 0003 1 0004 1W(OIL COOLER) 0005 1W/O(OIL COOLER) 0006 1 0007 1TOWING PACKAGE

16361JFAN, RH

main16361-0P390i2GRFKS..GGL2#201510-201909

main16361-0P410i2GRFXS..GYL20201510-201909

16361KFAN, LH

main16361-0P330i2GRFXS..GYL25201510-201909

main16361-0V070i2GRFKS..GGL2#201510-201909

16363FMOTOR, COOLING FAN, RH

main16363-0A130i2GRFKS..GGL2#201510-201909

main16363-31200i2GRFXS..GYL25201510-201909

16363GMOTOR, COOLING FAN, LH

main16363-0P280i2GRFKS..GGL2#201510-201909

sub16363-31470

main16363-36090i2GRFXS..GYL20201510-201909

16400RADIATOR ASSY

main16400-0P500i2GRFKS..GGL2#201510-201909

main16400-0P510i2GRFXS..GYL25201510-201909

TOWING PACKAGE-3500LBS

main16400-0P510i2GRFXS..GYL20201510-201608

16400BPLUG, RADIATOR DRAIN COCK

main16417-0C180i2GR#..GGL2#,GYL25201510-201909

sub16417-21280

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2GR#..GGL2#,GYL25201510-201909

16401CAP SUB-ASSY, RADIATOR

main16401-31520i2GRFXS..GYL20201510-201611

sub16401-36020

main16401-31792i2GRFKS..GGL2#201510-201611

sub16401-36020

main16401-31830i2GRFKS..GGL2#201612-201909

main16401-36020i2GRFXS..GYL25201612-201909

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-0P230i2GRFKS..GGL2#201510-201909

TOWING PACKAGE-3500LBS

main16377-0P230i2GRFXS..GYL20201510-201608

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90068-35004i2GRFXS..GYL20201510-201909

16471CAP SUB-ASSY, RESERVE TANK

main16405-0P140i2GRFXS..GYL20201510-201909

16523ACUSHION, RADIATOR SUPPORT

main16523-AD010i2GRFXS..GYL20201510-201909

16535SUPPORT, RADIATOR, LOWER

main16535-0A090i2GR#..GGL2#,GYL25201510-201909

16563SEAL, RADIATOR TO SUPPORT, NO.3

main16563-0P060i2GRFXS..GYL25201510-201909

TOWING PACKAGE-3500LBS

main16563-0P060i2GRFXS..GYL20201510-201608

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-A0020i2GRFXS..GYL20201510-201909

16571CHOSE, RADIATOR, NO.1

main16571-0P350i2GRFXS..GYL20201510-201909

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-A0020i2GRFXS..GYL20201510-201909

16572DHOSE, RADIATOR, NO.2

main16572-0P360i2GRFXS..GYL20201510-201909

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-31080i2GRFXS..GYL20201510-201909

NO.2

16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)

main16581-28070i2GR#..GGL2#,GYL25201510-201909

16587CLAMP, RADIATOR PIPE

main16587-31040i2GR#..GGL2#,GYL25201510-201909

16711SHROUD, FAN

main16711-0P330i2GRFKS..GGL2#201510-201909

main16711-0P350i2GRFXS..GYL25201510-201909

8401

9006903010

main90069-03010

9008011209

main90080-11209

9009904117

main90099-04117

9009904119

main90099-04119

27 parts on this diagram · 7 diagrams in section
