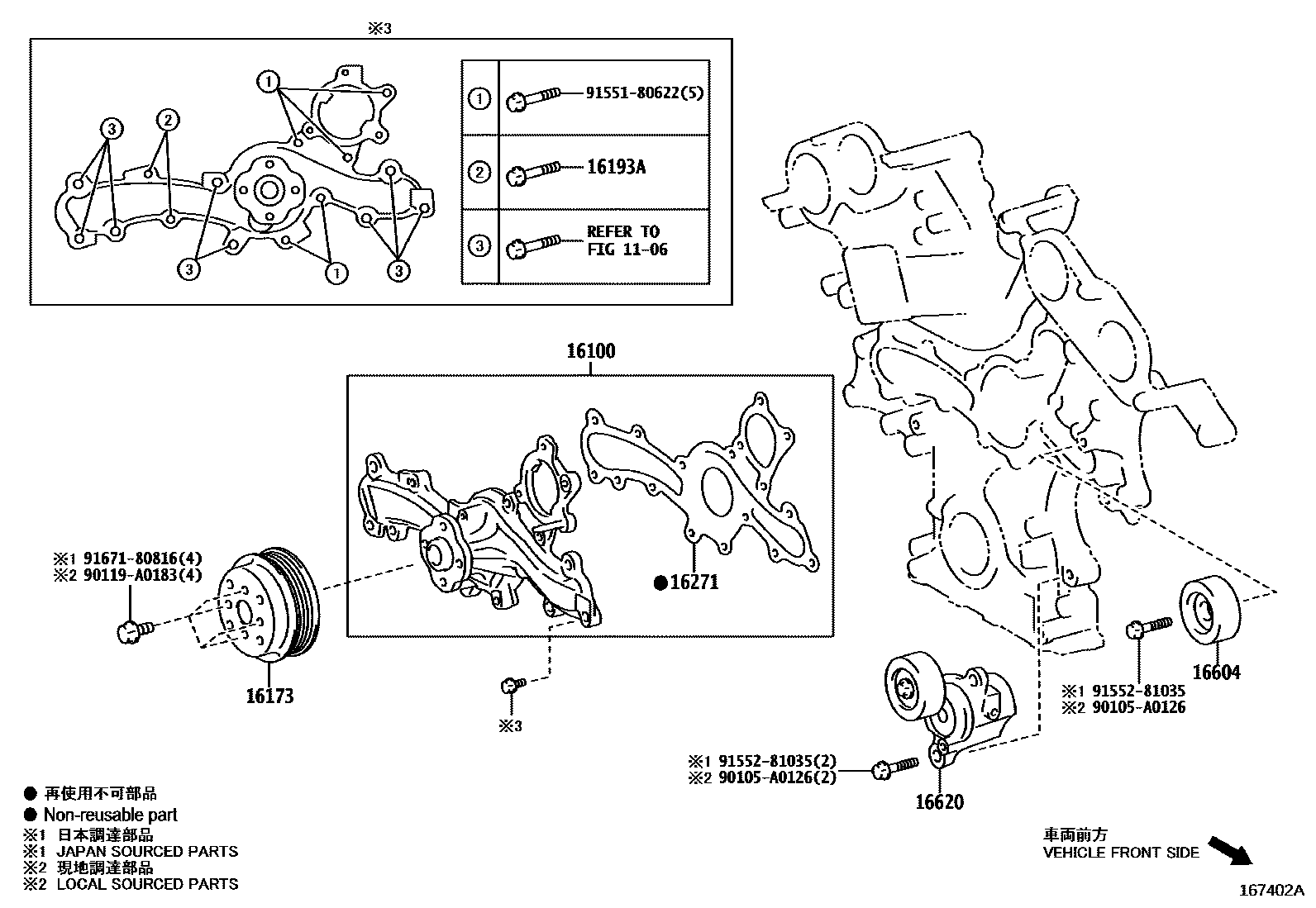

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-09690i2GRFKS..GGL2#¥9,500201510-201909

(L)

main16100-39615i2GR#..GGL2#,GYL2#¥9,500201510-202004

(J)

sub16100-39616¥9,500

main16100-39616i2GR#..GGL2#,GYL25¥9,500202004

(J)

16173PULLEY, WATER PUMP

main16173-0P010i2GRFKS..GGL2#201510-202005

(L)

sub16173-0P011

main16173-0P011i2GRFKS..GGL2#202006

(L)

main16173-31030i2GRFKS..GGL2#¥3,960201510-202003

(J)

sub16173-31031¥3,000

main16173-31031i2GRFKS..GGL2#¥3,000202004

(J)

main16173-31040i2GRFXS..GYL25¥3,960201510-202003

(J)

sub16173-31041¥3,960

main16173-31041i2GRFXS..GYL25¥3,960202004-202012

(J)

sub16173-31042¥3,000

main16173-31042i2GRFXS..GYL25¥3,000202101

(J)

16193ABOLT(FOR WATER PUMP COVER)

main16193-0P040i2GRFKS..GGL2#201510-201909

(L)

main16193-31080i2GRFKS..GGL2#¥210201510-201909

(J)

main16193-31080i2GRFXS..GYL20¥210201510-201608

16271GASKET, WATER PUMP

main16271-0P030i2GRFKS..GGL2#201510-202204

(L)

main16271-31050i2GRFXS..GYL20¥1,740201510-201909

(J)

main16271-31050i2GRFKS..GGL2#¥1,740202205

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-31030i2GRFKS..GGL2#¥4,180201510-201909

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0P010i2GRFKS..GGL2#201510-201707

(L)

main16620-0P030i2GRFKS..GGL2#201707-201909

(L)

main16620-0P030i2GRFKS..GGL2#201909

main16620-31090i2GRFKS..GGL2#¥15,200201510-201909

(J)

90105A0126

main90105-A0126

90119A0183

main90119-A0183

9155180622

main91551-80622¥60

9155281035

main91552-81035¥120

9167180816

main91671-80816¥80

12 parts on this diagram · 2 diagrams in section
