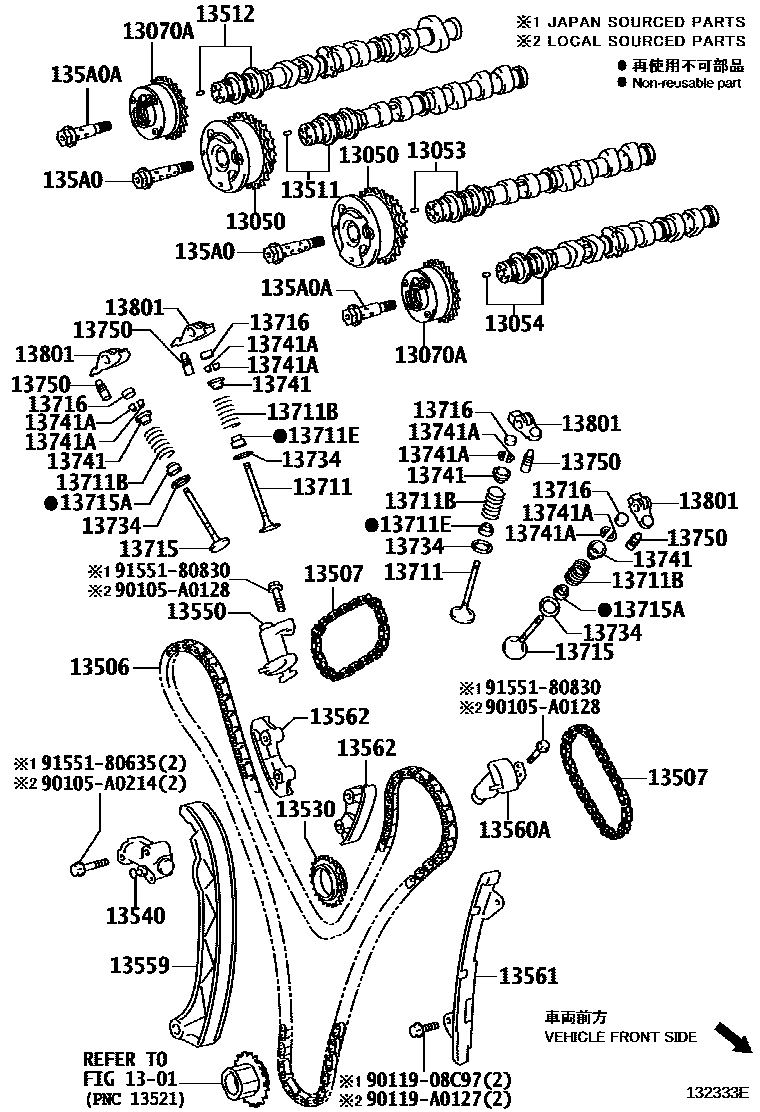

CAMSHAFT & VALVE
1301
13050GEAR ASSY, CAMSHAFT TIMING
(L)
(J)
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(L)
(J)
13506CHAIN SUB-ASSY
(L)
(J)
13507CHAIN SUB-ASSY, NO.2
(L)
(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13550TENSIONER ASSY, CHAIN, NO.2
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13560ATENSIONER ASSY, CHAIN, NO.3
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13562DAMPER, CHAIN VIBRATION, NO.2
(L)
(J)
135A0BOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR INTAKE)
(L)
(J)
135A0ABOLT ASSY, CAMSHAFT TIMING GEAR, CENTER(FOR EXHAUST)
(L)
(J)
13711VALVE, INTAKE
(L)
(J)
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
(L)
(J)
13715VALVE, EXHAUST
(L)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
(J)
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
(L)
(J)
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
90105A0128
main90105-A0128
90105A0214
main90105-A0214
9011908C97
main90119-08C97
90119A0127
main90119-A0127
9155180635
main91551-80635
9155180830
main91551-80830
35 parts on this diagram · 2 diagrams in section
