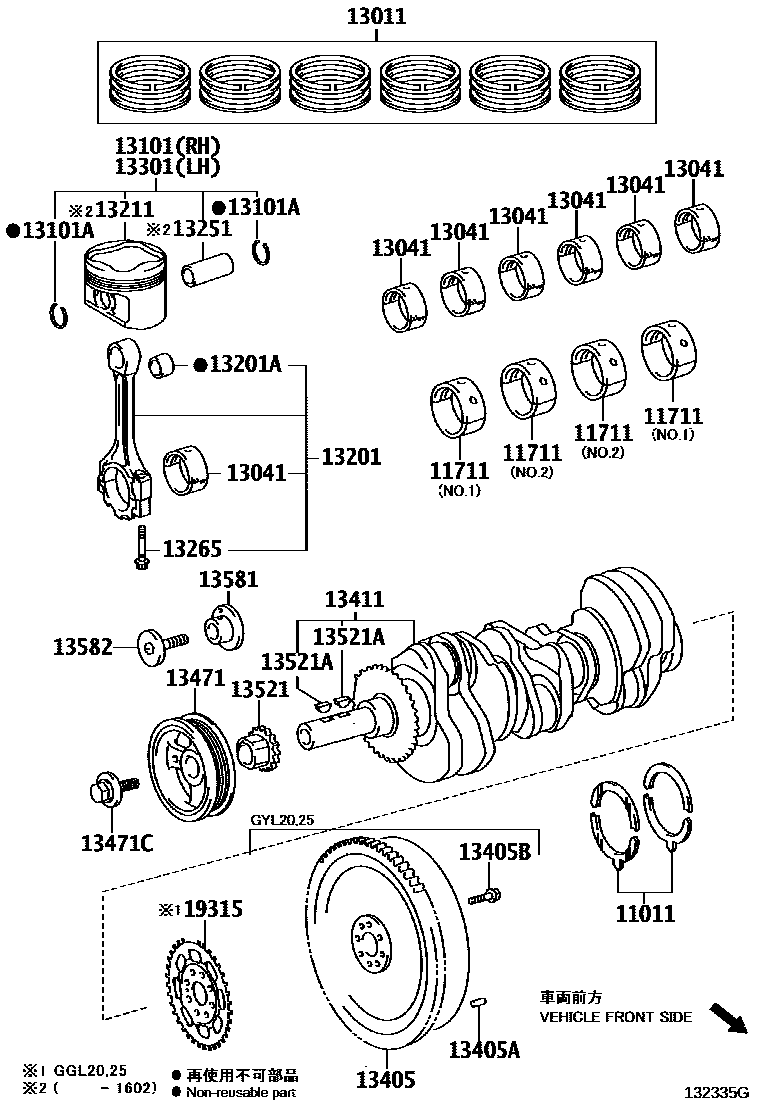

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11711BEARING, CRANKSHAFT
MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M
sub11071-31060
MARK UPPER 3 LOWER 4,NO.2,(J):REFER R/M
sub11071-31060
MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M
sub11071-31060
MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M
sub11701-31100
MARK UPPER 1 LOWER 2,NO.1,(J):REFER R/M
sub11701-31100
MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M
sub11701-31100
MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M
sub11701-31100
MARK UPPER 4 LOWER 5,NO.1,(J):REFER R/M
sub11701-31100
MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M
sub11701-31100
13011RING SET, PISTON
STD,(L)
13041BEARING, CONNECTING ROD
MARK 1,(L),REFER R/M
MARK 2,(L),REFER R/M
MARK 3,(L),REFER R/M
MARK 4,(L),REFER R/M
MARK 1,(J),REFER R/M
MARK 2,(J),REFER R/M
MARK 3,(J),REFER R/M
MARK 4,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,(L),RH BANK
STD,MARK A,(J),RH BANK
STD,MARK B,(J),RH BANK
STD,MARK C,(J),RH BANK
STD,MARK A,(J),RH BANK
STD,MARK B,(J),RH BANK
STD,MARK C,(J),RH BANK
13101ARING, HOLE SNAP(FOR PISTON PIN)
(J)
(L)
13201ROD SUB-ASSY, CONNECTING
(L),REFER R/M
MARK A,(J),REFER R/M
MARK B,(J),REFER R/M
MARK C,(J),REFER R/M
13201ABUSH(FOR CONNECTING ROD SMALL END)
13211PISTON
13251PIN, PISTON
MARK A,(L)
MARK B,(L)
MARK C,(L)
MARK A,(J)
MARK B,(J)
MARK C,(J)
13301PISTON SUB-ASSY, W/PIN, LH
STD,(L),LH BANK
STD,MARK A,(J),LH BANK
STD,MARK B,(J),LH BANK
STD,MARK C,(J),LH BANK
STD,MARK A,(J),LH BANK
STD,MARK B,(J),LH BANK
STD,MARK C,(J),LH BANK
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13581SHAFT, IDLE GEAR, NO.1
(J)
13582SHAFT, IDLE GEAR, NO.2
19315PLATE, CRANK ANGLE SENSOR, NO.1
(L)
(J)
23 parts on this diagram · 1 diagram in section
