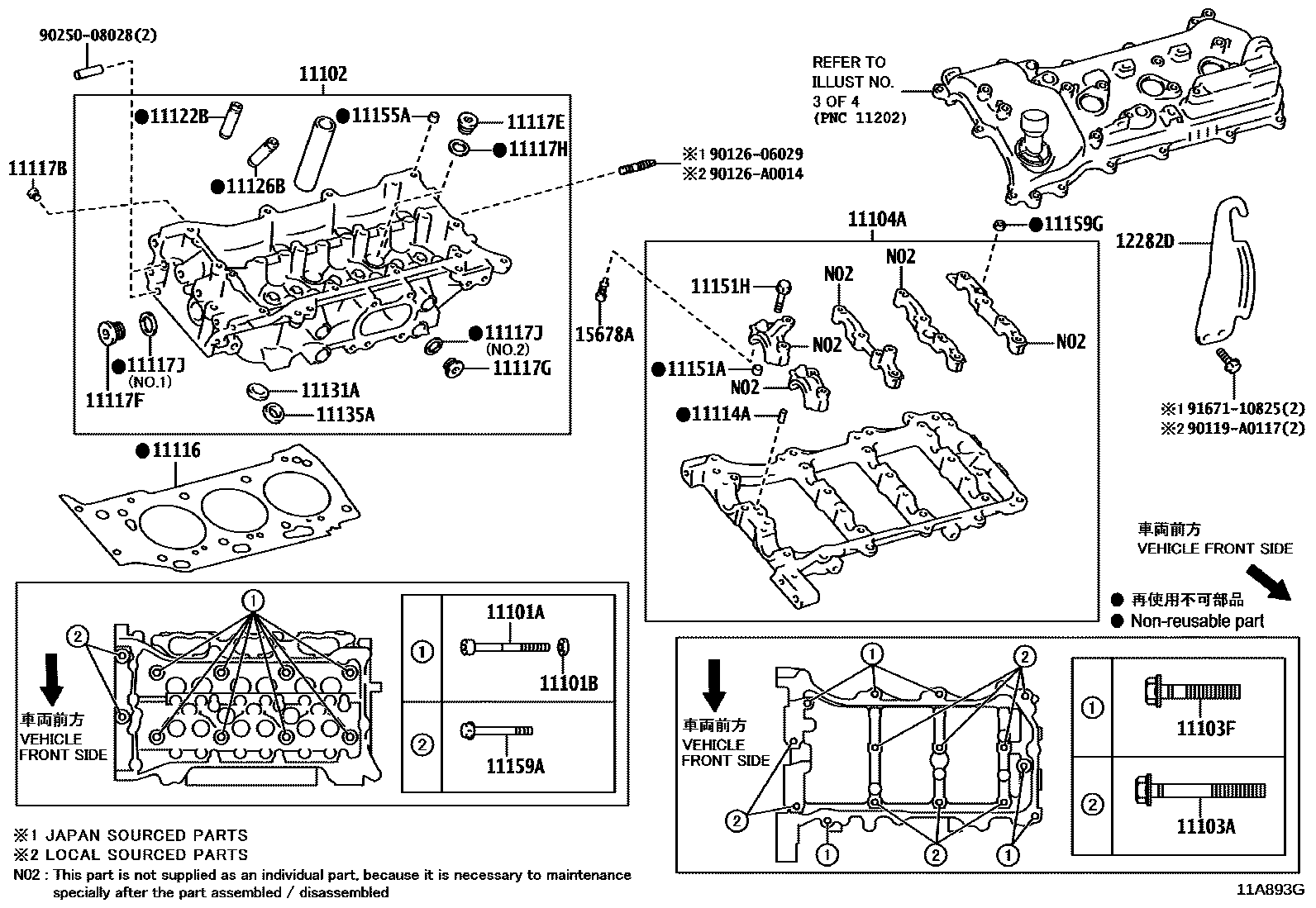

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
(J)
(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
(J)
(L)
11103HOUSING SUB-ASSY, CAMSHAFT
(L)
(J)
11103ABOLT(FOR CAMSHAFT HOUSING SET)
(J)
(L)
11103FBOLT(FOR CAMSHAFT HOUSING SET)
(J)
(L)
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
(L)
(J)
11114APIN, STRAIGHT
L=13.8,OD=5.0,(J)
L=13.8,OD=5.0
L=13.8,OD=5.0,(L)
11116GASKET, CYLINDER HEAD, NO.2
(L)
(J)
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
(L)
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
(J)
(L)
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
NO.2
NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
11122BBUSH, INTAKE VALVE GUIDE, NO.2
STD
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
STD,(L)
STD
O/S 0.03,(L)
11131ASEAT, INTAKE VALVE, NO.2
STD,(L)
STD
O/S 0.03,(L)
11135SEAT, EXHAUST VALVE
STD,(L)
STD,(J)
O/S 0.03,(L)
O/S 0.03,(J)
11135ASEAT, EXHAUST VALVE, NO.2
STD,(L)
STD,(J)
O/S 0.03,(L)
O/S 0.03,(J)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
(J)
(L)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
(J)
(L)
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
(L)
(J)
12282DHANGER, ENGINE, NO.2
15678AFILTER, OIL CONTROL VALVE
90119A0117
main90119-A0117
9012606029
main90126-06029
90126A0014
main90126-A0014
9025008028
main90250-08028
9167110825
main91671-10825
36 parts on this diagram · 7 diagrams in section
