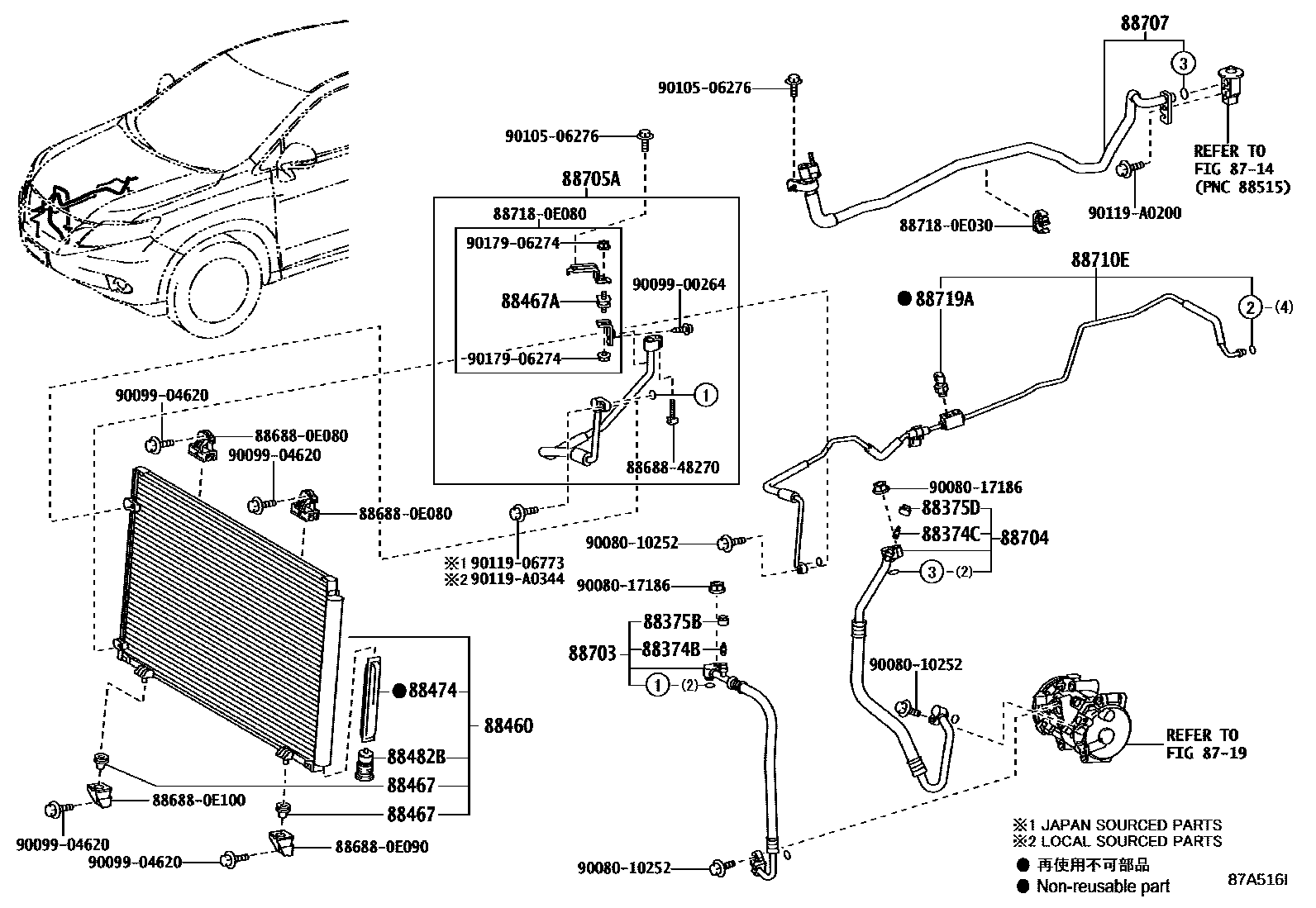

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88460CONDENSER ASSY, COOLER
88467CUSHION, COOLER CONDENSER, NO.1
88467ACUSHION, COOLER CONDENSER, NO.2
88474DRYER, COOLER
88482BCAP, COOLER NO.1
88703HOSE SUB-ASSY, DISCHARGE
88704HOSE SUB-ASSY, SUCTION
88705ATUBE SUB-ASSY, DISCHARGE
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88719ASENSOR, AIR CONDITIONER PRESSURE
886880E080BRACKET, COOLER DIAPHRAGM
main88688-0E080
886880E090BRACKET, COOLER DIAPHRAGM
main88688-0E090
886880E100BRACKET, COOLER DIAPHRAGM
main88688-0E100
8868848270BRACKET, COOLER DIAPHRAGM
main88688-48270
887180E030PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0E030
887180E080PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0E080
9008010252
main90080-10252
9008017186
main90080-17186
9009900264
main90099-00264
9009904620
main90099-04620
9010506276
main90105-06276
9011906773
main90119-06773
90119A0200
main90119-A0200
90119A0344
main90119-A0344
9017906274
main90179-06274
32 parts on this diagram · 3 diagrams in section
