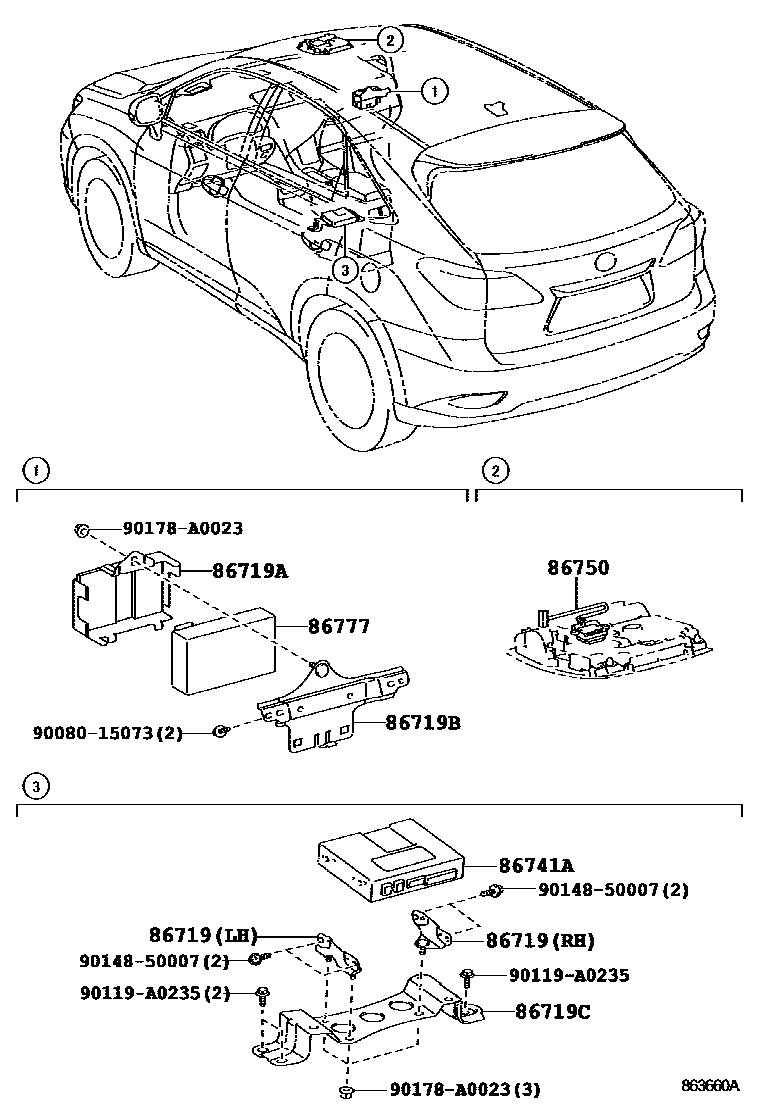

TELEPHONE & MAYDAY

86719BRACKET, TELEPHONE

main86719-48050i200901-201204

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),RH

main86719-48050i200901-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),RH

main86719-48060i200901-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),LH

main86719-48060i200901-201204

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT),LH

86719ABRACKET, TELEPHONE NO.1

main86719-48070i200901-201204

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86719-48070i200901-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

86719BBRACKET, TELEPHONE NO.2

main86719-48100i200901-201204

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86719-48100i200901-201204

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

86719CBRACKET, TELEPHONE NO.3

main86719-48110i200901-201510

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86719-48110i200901-201204

W(RR DISPLAY)

main86719-48110i200901-201510

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86719-48110i201204-201510

WITH(REAR DISPLAY)

86741ATRANSCEIVER, TELEMATICS

main86741-0E030i201309

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86741-33051

main86741-0E040i201309

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86741-33040i201301-201308

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86741-33041

main86741-33050i201301-201308

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86741-33051

main86741-53020i200901-200910

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86741-53021

main86741-53021i200911-201012

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86741-53022

main86741-53022i201101-201212

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86741-33050

main86741-53030i200901-200910

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86741-53031

main86741-53031i200911-201012

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86741-53032

main86741-53032i201101-201212

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86741-33040

86750SWITCH ASSY, TELEPHONE

main86750-48050i200901-201510

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

86777BATTERY, MAYDAY

main86777-0W060i200901-201211

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86777-76040

main86777-0W060i200901-201211

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86777-76040

main86777-76020i201212-201304

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86777-76040

main86777-76020i201212-201304

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

sub86777-76040

main86777-76040i201305

EMV & NAVIGATION SYSTEM-WITH&MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

main86777-76040i201305

MAYDAY SYSTEM-WITH(LEXUS ENFORM & SAFETY CONNECT)

9008015073

main90080-15073

90119A0235

main90119-A0235

9014850007

main90148-50007

90178A0023

main90178-A0023

11 parts on this diagram · 1 diagram in section
