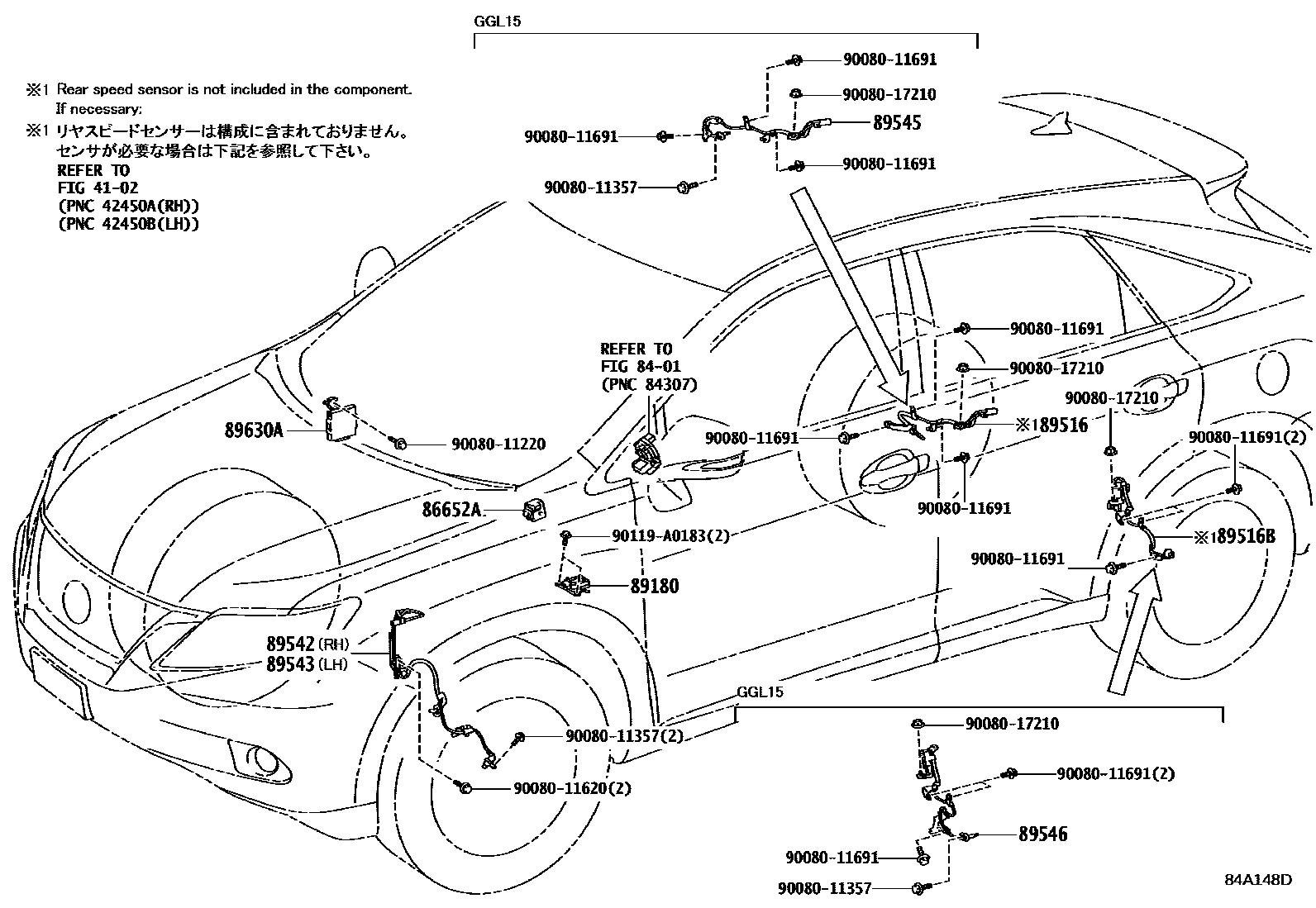

ABS & VSC

0001 1 0002 1

4102

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iGGL1#..NAP200901-201008

89180SENSOR ASSY, YAWRATE

main89180-48080iGYL1#..NAP;GGL15..NAP..8FC201207

main89180-48080iGGL1#..NAP200901-201204

VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)

main89180-48080iGGL1#..NAP..6FC201204

VHCL. DYNAMIC MANAGEMENT-WITH VDIM ALPHA(V2-H)

main89180-48090iGGL1#..NAP..6FC200901-201204

89516WIRE, SKID CONTROL SENSOR

main89516-0E030iGGL10..NAP200901-201204

89516BWIRE, SKID CONTROL SENSOR

main89516-0E040iGGL10..NAP200901-201204

89542SENSOR, SPEED, FRONT RH

main89542-0E020iGGL1#..NAP200901-201204

sub89542-0E080

89543SENSOR, SPEED, FRONT LH

main89543-0E020iGGL1#..NAP200901-201204

sub89543-0E080

89545SENSOR, SPEED, REAR RH

main89545-0E020iGGL15..NAP200901-201510

89546SENSOR, SPEED, REAR LH

main89546-0E020iGGL15..NAP200901-201204

89630ACOMPUTER ASSY, 4WD

main89630-48010iGGL15..NAP200901-201204

9008011220

main90080-11220

9008011357

main90080-11357

9008011620

main90080-11620

9008011691

main90080-11691

9008017210

main90080-17210

90119A0183

main90119-A0183

17 parts on this diagram · 2 diagrams in section
