WIRING & CLAMP

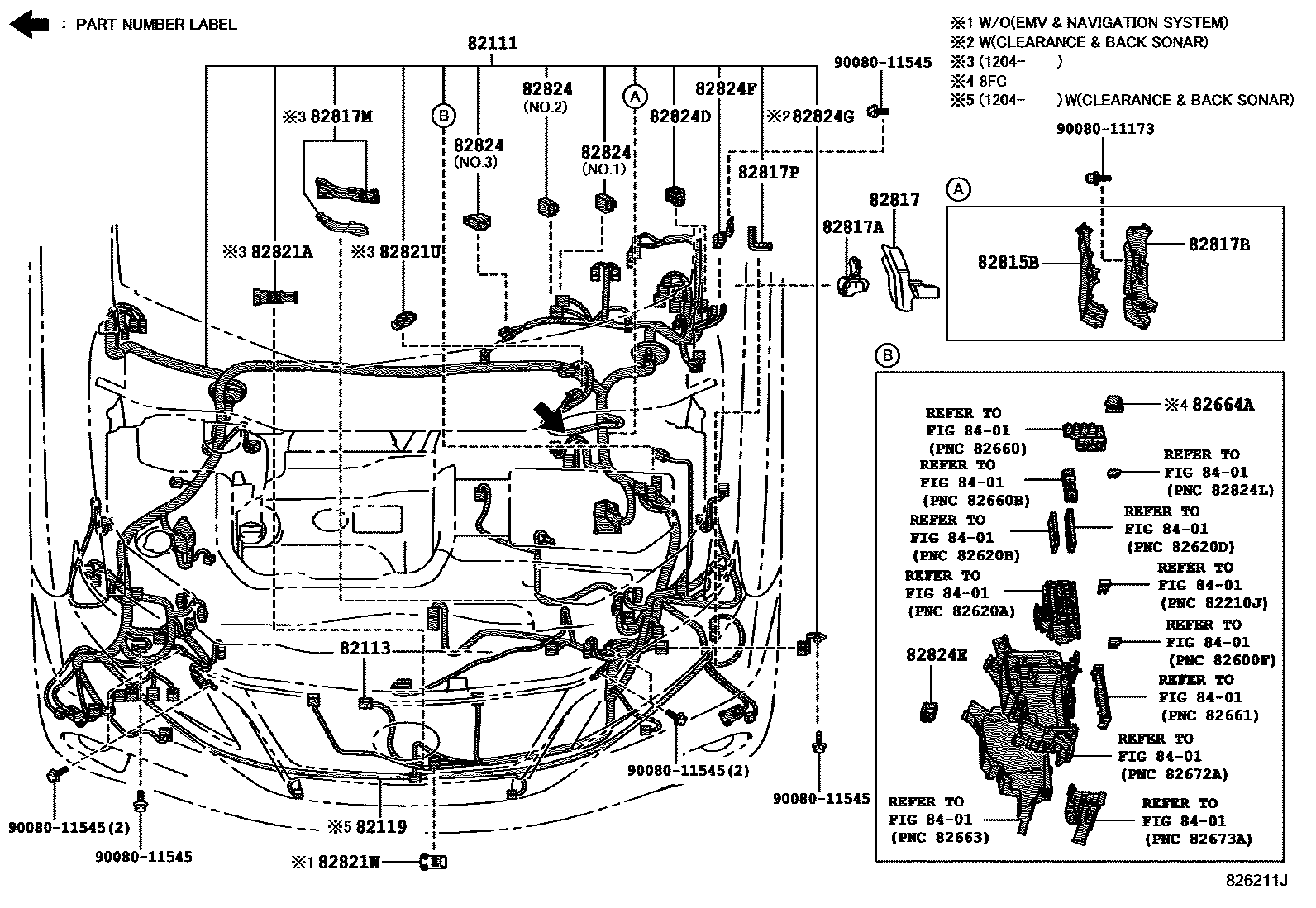

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-0E310i201204-201403
main82111-0E350i200901-200907
sub82111-0E351
main82111-0E351i200908-201008
main82111-0E352i201008-201109
main82111-0E353i201109-201204
main82111-0E660i201207-201403
main82111-0EB70i201403-201510
main82111-0EC00i201403-201510
main82111-0EC80i201403-201510
main82111-0ED30i201403-201510
82113WIRE, ENGINE ROOM, NO.3
main82113-0E010
82119WIRE, SENSOR
main82119-0E020
main82119-0E021
82664ABLOCK, CONNECTOR HOLDER
main82664-0E010i201207
82815BCOVER, WIRING HARNESS PROTECTOR
main82815-48480i200901-201204
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-48J90i200901-201204
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-48J40i200901-201204
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-48C10i200901-201204
82817MPROTECTOR, WIRING HARNESS, NO.12
main82817-0E160i201204
82817PPROTECTOR, WIRING HARNESS, NO.14
main82817-95J00i201204
82821ACOVER, CONNECTOR
main82821-20370i201207
82821UCOVER, CONNECTOR
82821WCOVER, CONNECTOR
main82821-48110i201207
82824CONNECTOR, WIRING HARNESS
main82824-22070i200901-201204
NO.1
main82824-22080i200901-201204
NO.2
main82824-50350i200901-201204
NO.3
82824DCONNECTOR, WIRING HARNESS
main82824-22120i200901-201204
82824ECONNECTOR, WIRING HARNESS
main82824-44020i200901-201204
82824FCONNECTOR, WIRING HARNESS
main82824-48070i200901-201204
82824GCONNECTOR, WIRING HARNESS
main82824-48020i201204
8401
9008011173
main90080-11173
9008011545
main90080-11545

21 parts on this diagram · 18 diagrams in section
